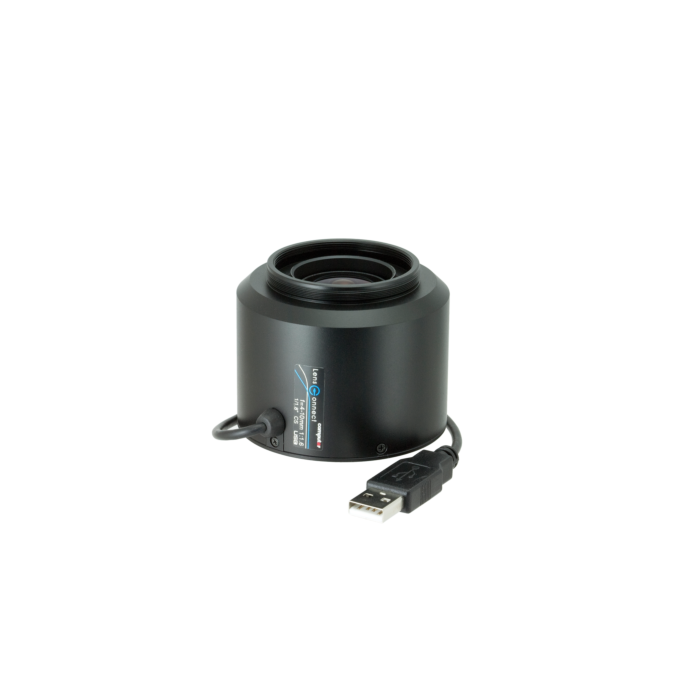

Computar EL3Z0416UCS-MPWIR 1/1.8”, 4-10mm, f1.6, 5MP, LensConnect (CS-Mount) Lens

SKU
Computar EL3Z0416UCS-MPWIR

Features:

  • 1/1.8” Format
  • 4K Resolution
  • 3.9-10mm Varifocal
  • Manual Iris
  • Precise Focus Adjustment
  • IR Corrected Optics
  • Corner Brightness
Focal Length 4.0mm - 10mm
F-Number Wide - F1.6 - F16C
Tele - F2.7 - F16C
Max. Image Format 7.1mm x 5.4mm (φ8.9mm)
Angle Of View 1/1.8 type (16:9)
D - 138.1° ~ 52.9°
H - 115.9° ~ 46.0°
V - 61.7° ~ 25.8°

1/2.8 type (16:9)
D - 92.9° ~ 37.9°
H - 79.9° ~ 33.0°
V - 43.9° ~ 18.5°

1/1.8 type (4:3)
D - 138.1° ~ 52.9°
H - 104.8° ~ 42.2°
V - 76.3° ~ 31.6°

1/3 type (4:3)
D - 86.5° ~ 35.5°
H - 68.1° ~ 28.4°
V - 50.5° ~ 21.3°

1/2.7 type (4:3)
D - 96.1° ~ 39.1°
H - 82.6° ~ 34.1°
V - 45.3° ~ 19.1°
Min. Objective Distance 0.2m from front of lens
Effective Lens Aperture Front:φ25mm
Rear:φ10mm
Back Focal Length Wide - 8.5mm (in Air)
Tele - 8.5mm (in Air)
Flange Back Length 12.5mm (in Air)
Control Interface USB2.0
Power Mode Bus power
Connector USB TypeA
Operating Temperature ‐20℃ ‐ +60℃
Control Iris - Motorized
Focus - Motorized
Zoom - Motorized
Dimensions As per the attached drawing
Mount CS Mount
Weight 161g
Tripod Screw -
Filter Thread *M55 x P0.75 (With VM0418)
