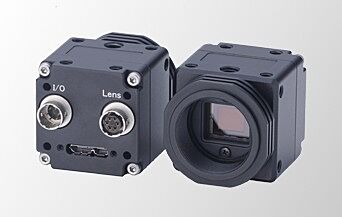

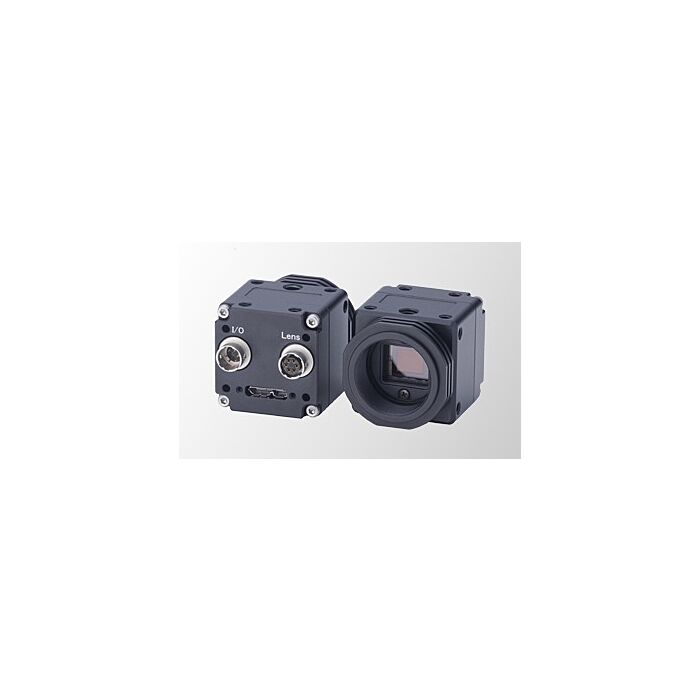

Omron STC-SBS500U3V-LCNT – 5MP Sony IMX264 Global Shutter USB3 Vision Camera (LensConnect Compatible)
The Omron STC-SBS500U3V-LCNT (STCSBS500U3VLCNT) is a high-performance 5MP area scan camera built around the Sony IMX264 global shutter sensor. Delivering up to 35.8 fps over a USB3 Vision interface, this camera is engineered for demanding machine vision, inspection, and automation environments.
This model is specifically designed for compatibility with CBC’s LensConnect system, enabling simplified lens integration, secure connectivity, and improved reliability in industrial deployments.
Its compact 35 mm housing and C-mount design make it ideal for space-constrained systems requiring high image quality and stable operation.
Key Features:
- 5MP resolution (2448 × 2048)
- Sony IMX264 global shutter CMOS sensor
- 35.8 fps high-speed capture
- USB3 Vision 1.0.1 interface
- Compatible with CBC LensConnect lenses
- Mono8 / Mono10 / Mono12 output formats
- ROI and full-frame scanning modes
- Wide exposure range (27.2 µs to 56 sec)
- Compact 35 × 35 mm industrial form factor
- External power input (8–24 VDC)
Industrial Applications:
- Machine Vision
- Factory Automation
- Robotics
- Inspection Systems
- UAV Imaging
- Metrology
Why Engineers Choose This Model
The STC-SBS500U3V-LCNT combines the proven performance of Sony’s IMX264 global shutter sensor with Omron’s industrial reliability. Its global shutter ensures distortion-free imaging in high-speed environments, making it ideal for production lines and motion-critical applications.
Integration is further simplified through compatibility with CBC’s LensConnect lens system, allowing for secure lens connections and streamlined system design. Combined with USB3 Vision support, this camera integrates easily into both PC-based and embedded vision systems.
FAQ
What sensor does STC-SBS500U3V-LCNT use?
Sony IMX264 global shutter CMOS sensor.
Is this camera compatible with LensConnect lenses?
Yes, this model is designed to work with CBC’s LensConnect lens system.
What interface does this camera use?
USB3 Vision 1.0.1.
Is this suitable for high-speed inspection?
Yes, the global shutter eliminates motion distortion.
What industries use this camera?
Factory automation, robotics, inspection, and machine vision systems.
| Product Model | STC-SBS500U3V-LCNT |
| Camera Type | Area Scan Camera |
| Resolution | 5 Megapixel |
| Color / Monochrome | Monochrome |
| Effective Pixels | 2448 (H) x 2048 (V) |
| Frame Rate | 35.8 fps |
| Interface | USB 3.0 |
| Protocol | USB3 Vision 1.0.1 / GenICam |
| Connector | USB3.0 Micro-B x1 |
| Power Supply | External Power (8.0 to 24 VDC) |
| Power Consumption | < 7.1 W (with LensConnect lens) |
| Operating Temperature | 0°C to +71°C |
| Storage Temperature | -30°C to +70°C |
| Image Sensor | |
| Sensor | Sony IMX264 CMOS |
| Shutter Type | Global Shutter |
| Sensor Size | 2/3" |
| Pixel Size | 3.45 µm x 3.45 µm |
| Mechanical | |
| Dimensions | 35 (W) x 35 (H) x 41.5 (D) mm |
| Weight | Approx. 80 g |
| Lens Mount | C-Mount (CBC LensConnect Compatible) |
| Optical Filter | None |
| Interface / I/O | |
| Power / Signal Connector | HR10A-7R-6PB (Hirose) or equivalent |
| Lens Connector | HR10A-7R-6S (Hirose) or equivalent (LensConnect) |
| Functions | |
| Scanning Mode | Full Scan / ROI |
| Trigger Modes | Edge preset / Pulse width / Start-stop / Free-run |
| Pixel Formats | Mono8 / Mono10 / Mono12 / Mono10Packed / Mono12Packed |
| Exposure Time | 27.2 µs to 56 sec |
| Analog Gain | 0 to 19.2 dB |
| Digital Gain | x1 to x2 |
| Gamma | 0.1 to 4.0 |
| Binning | x2 horizontal / vertical / Off |
| Decimation | x2 horizontal / vertical / Off |
| Image Flip | Horizontal / Vertical / Both / Off |
| Defective Pixel Correction | Up to 1080 pixels |
| User Settings | Up to 8 profiles |
| Auto Functions | Auto Exposure / Auto Gain |
| Chunk Data | Supported |
| Event Function | Supported |
| PTP (IEEE1588) | Not Supported |
| White Balance | N/A (Monochrome) |
| Flat Field Correction | N/A |
