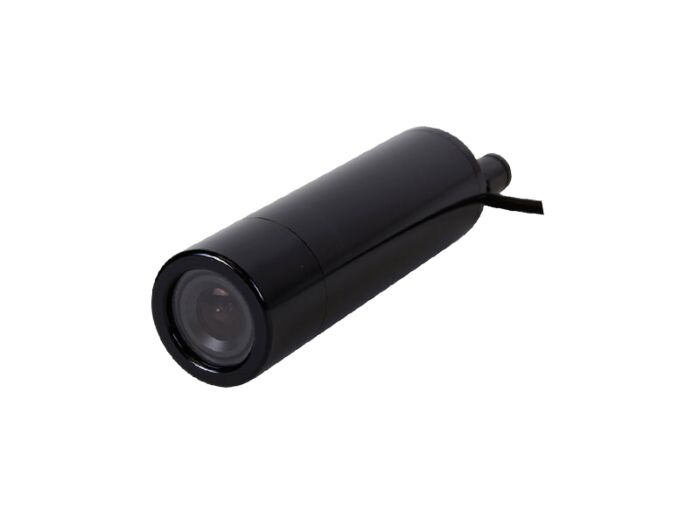

KT&C KPC-HDB230M HD Miniature Bullet Camera, 1/3” 2.1MP SONY Exmor CMOS, 3.7mm Lens, Digital Day/Night, Φ23 × 77.5mm (Discontinued)
SKU
KPC-HDB230M
Quick Overview
*Product is Discontinued, Call For Replacement Options
The KT&C KPC-HDB230M is a compact 23 × 77.5mm HD miniature bullet camera built with a 1/3” SONY Exmor CMOS sensor and 2.1MP resolution. Featuring a fixed 3.7mm board lens, digital day/night, 3D DNR, BLC, D-WDR, and IP67 weatherproof housing, it delivers reliable performance for security, surveillance, and industrial applications.
The KT&C KPC-HDB230M HD camera delivers a quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression. It provides a superior surveillance environment compared to conventional VGA camera.
Features:
- 2.1 Megapixel, 1/3″ SONY Exmor Color CMOS
- f = 3.7 mm Lens (3 MP)
- Fixed Board Lens
- Digital Day & Night
- Size: 23 x 77.5 mm
- Min. Illumination of 0.1 Lux
- 3D DNR / BLC / D-WDR / OSD (AD-Key Remote Controller)
- IP67 (Weather Proof)
- DC 12 V Power
Applications:
- Inspection
- Security Indoor/Outdoor
- Surveillance/CCTV
- Meetings
- Industrial
| Image Sensor | 2.1 Megapixel, 1/3" SONY Exmor Color CMOS |
| Video Output Mode (HD-SDI) | 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps |
| Video Output Mode (TV Out) | NTSC / PAL selectable |
| Effective Pixels (H x V) | 1984 x 1105 |
| Unit Cell Size (H x V) | 2.8 um x 2.8 um |
| Lens | 3.7 mm Lens (3 MP) |
| Lens Type | Fixed Board Lens |
| S/N Ratio | More than 50dB |
| Min. Illumination | 0.1 Lux |
| Shutter Speed | Auto / Manual |
| Min. Exposure Time | 1/60,000 sec |
| Day & Night | Digital Day & Night |
| IP Rating | IP67 (Weather Proof) |
| On-Screen Display (OSD) | AD-Key Remote Controller |
| BLC | On / Off |
| DNR | 3D DNR |
| White Balance | Auto / AutoExt / Push / Manual |
| Privacy Masking | 16 Zones |
| WDR | D-WDR |
| Digital Zoom | 1X ~ 8X |
| Digital Slow Shutter | Off, 2x ~ 8x |
| Operating Temperature | 14 °F ~ 122 °F (-10 °C ~ 50 °C) |
| Storage Temperature | -4 °F ~ 140 °F (-20 °C ~ 70 °C) |
| Power Consumption | DC 12V (±10%), Max. 110mA |
| Dimension | Φ0.9 x 3.1 inch (Φ23 x 77.5 mm) |
| Weight | 0.2 lbs (90 g) |
