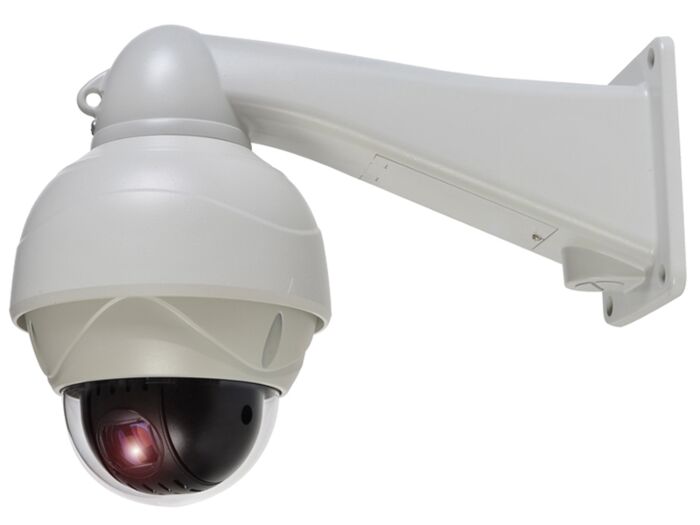

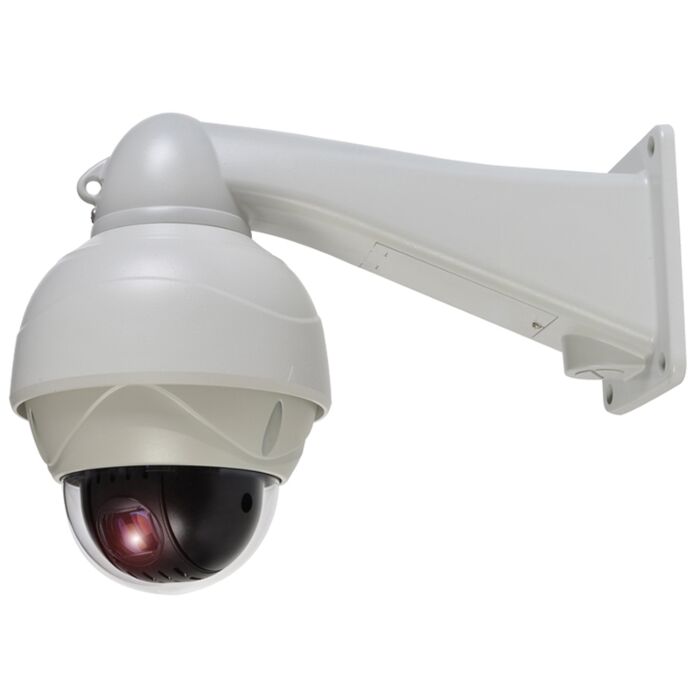

KT&C KNC-SPDNi120HD (KNCSPDNi120HD) IP PTZ Camera

The KT&C KNC-SPDNi120HD is a 2.1 Megapixel and Onvif 1.02 compatible IP camera with a 1/3-inch SONY Progressive Scan CMOS for best picture quality. It has an ultra-high resolution of 1080p (1920x1080) @30fps and also features 12x optical and 10x digital AF zoom. It has a full pan of 360-degree and tilt of 180-degree, for a better coverage, and 4 alarm input and 1 alarm output. The multi-streaming VBR/CBR has a controllable frame rate and bandwidth. The intelligent motion detection feature proves to be very useful at times. The image has multiple options like compression, brightness, contrast, saturation, hue, sharpness, white balance, exposure control, text and image overlay, privacy masking and BLC.

Features:

Member of Onvif

3.27 Megapixel, 1/2.8″ SONY Exmor CMOS

f = 12x Optical / 10x Digital zoom (5 ~ 60 mm)

12x Optical Zoom Lens

True Day & Night with ICR Mechanism

Min. Illumination of 0.1 Lux

Extreme Operating temperature down to -40 degrees

Pan 360° Endless Rotation, Tilt 180° Vector scan

210 Preset Positions (except Short-cut command)

8 Auto Scan / 8 Pattern / 8 Tour consist of Presets

WDR / BLC

Standard protocols including Pelco-D/P

IP66 (Weather Resistant)

AC 24V Power

Applications:

Education

Security

Surveillance/CCTV

Meetings

Industrial

Image Sensor	3.27 Megapixel, 1/2.8″ SONY Exmor CMOS
Total Pixel (H x V)	2144 x 1588
Day & Night	True Day & Night with ICR Mechnism
Min. Illumination	0.1 Lux / F2.0
Shutter Speed	1/30 ~ 1/10,000
Focal Length	12x Optical / 10x Digital Zoom (5 ~ 60 mm Lens)
Lens Type	12x Optical Zoom Lens
Maximum Resolution	H.264 : 1920 x 1080 (16:9) MJPEG : 1280 x 720 (16:9)
Frame Rate	H.264: 30fps / MJPEG: 30fps
Compression	H.264 / MJPEG
Streaming	Dual-Stream at different frame rate and bandwidth
Digital Slow Shutter	2x ~ 64x
Image Settings	Brightness, Contrast, Saturation, Sharpness, White balance, Exposure control, Text and image overlay, Privacy masking, BLC
Streaming	Two-way, Full Duplex
Compression	G.711, G726
Input/Output	External Microphone or Line Input / Line Output
LAN	Ethernet 10/100 Base-T (RJ-45 Type)
Security	Multiple user access levels with password protection, HTTPS (SSL)
Protocols	IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP, DNS, DDNS, HTTPS, UPnP
Onvif Compliant	Yes
Interface	OS: Windows XP / Vista / 7 Browser: Internet Explorer
Video Motion Detection	Yes
Alarm Triggers	Intelligent video, external inputs, manual triggers, network fail, reboot
Alarm Events	JPEG image upload via FTP & Email, notification via E-mail, external output activation
Processors	CPU: ARM 926EJ-S
Memory	RAM: 128MB, Flash: 64MB
Power	PoE class 4 (IEEE 802.3at Type2)  AC 24V 38.5 W (Heater on)
Interface	Analog Composite Output Power (AC 24V) Input Sensor Input x 1 / Alarm Output x 1 Audio Input x 1 / Audio Output x 1 RS485, Status LED
IP Rating	IP66 (Weather Resistant)
Operating Temperature	-40 ˚F ~ 122 ˚F (-40 ˚C ~ 50 ˚C)
Dimension	Bubble (Φ4.4), Φ6.5 x 13.4 x 10 inch (Bubble (Φ112), Φ166 x 341 x 255 mm)
Weight	7.7 lbs (3500 g)
