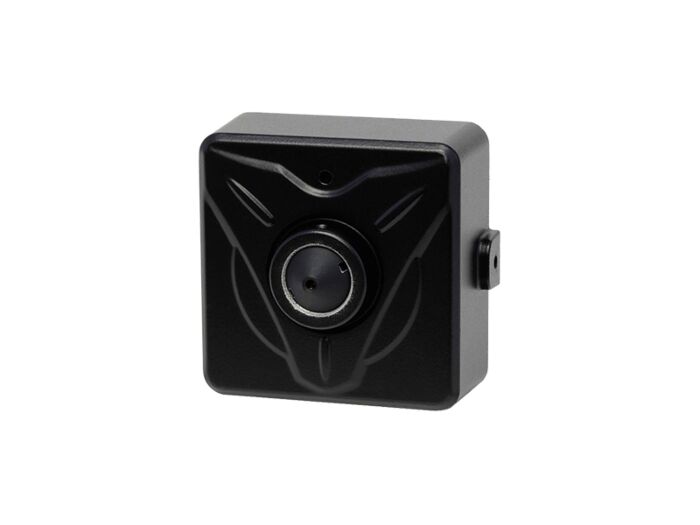

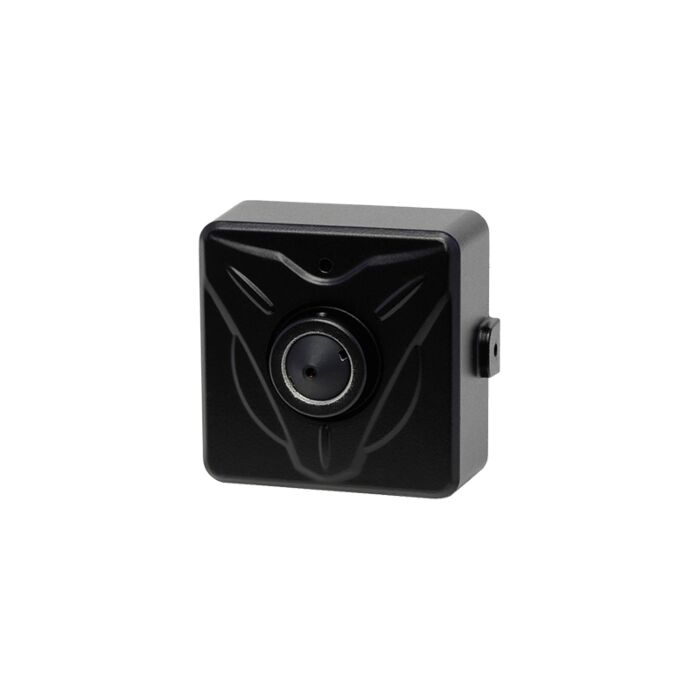

KT&C KNC-HDi47P4 Mini Square Megapixel IP Camera (Discontinued)
SKU
KNC-HDi47P4
Quick Overview
*Product is Discontinued, Call For Replacement Options
1920 x 1080 Effective Pixels, 2.1 Megapixel, 1/2.8″ SONY Exmor Progressive CMOS.
The KT&C KNC-HDi47P4 2.43Mp Full HD D/N Network Square Camera.
Features:
- 1/2.8″ SONY Exmor Progressive CMOS
- 1920 x 1080 @ 30fps
- H.264 & Motion JPEG
- Micro SD/SDHC card support up to 32GB
- Built-in Microphone
- Digital Day and Night
- BLC, D-WDR, 3D DNR
- Multiple Network Protocols Support
- Multiple User Access with Password Protection
- 4.3mm Megapixel Super Cone Pinhole Lens
- Compression, Brightness, Contrast, Saturation, Hue, Sharpness, White balance, Exposure Control Analog Service Output
- PoE, DC12V
Applications:
- Education
- Security
- Surveillance/CCTV
- Meetings
- Industrial
| Image Sensor | 2.1 Megapixel, 1/2.8″ SONY Exmor Progressive CMOS |
| Video/Compression | H. 264 / Motion JPEG |
| Resolution | 1080P, SXGA, 720p, D1, CIF |
| Frame Rate | H.264 : 30fps / Motion JPEG : 30fps |
| Video Streaming | Multi-stream H.264 and Motion JPEG: simultaneous, individually configured streams in max. resolution at 30 fps controllable frame rate and bandwidth |
| Image Setting Option | Compression, brightness, contrast, saturation, hue, sharpness, white balance, exposure control, rotation of images, text and image overlay, privacy mask |
| Min. Illumination | 0.1 Lux / F2.0 |
| Lens | 4.3mm Megapixel Super Cone Pinhole Lens |
| Day & Night | Digital Day and Night |
| Network Security | Multiple user access levels with password protection |
| Network Supported Protocols | IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP, DNS, DDNS, HTTPS, UPnP |
| Application Programming Interface (API) | Open API for software Integration, Including API and SDK |
| Intelligent Video | Video Motion Detection |
| Local Storage | Recording video streams or JPEG images when event triggered video streams or JPEG can be downloaded by internal web server |
| Alarm Triggers | Intelligent video, external inputs, manual triggers |
| Alarm Events | File upload via FTP, notification via e-mail, external output activation recording Video or JPEG using Micro-SD : recording video streams or JPEG images when event trigged, video streams or JPEG can be downloaded by internal web server |
| Interfaces Other | RJ-45 for Ethernet 10baseT/100baseTX with PoE (Power over Ethernet) Analog composite output (for Service Video) Cropping video display button for easy focus setting |
| Operating Temperature/Condition | -10 °C ~ 50 °C (14 °F ~ 122 °F) / Humidity 20~80% RH (non-condensing) |
| Power Supply | PoE (Power over Ethernet) Class 3 (IEEE 802.3af), DC12V |
| Dimension | 51.5mm (H) x 47.5mm (D) x 35mm |
