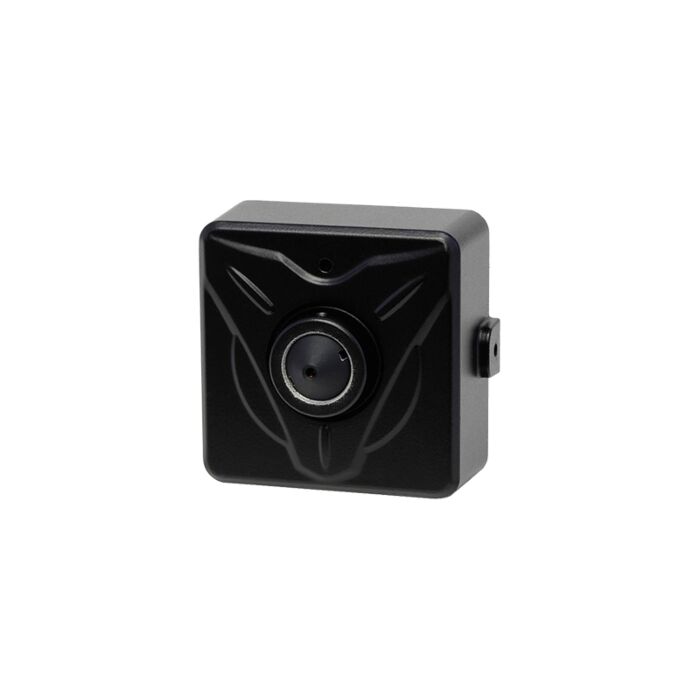

KT&C KNC-HDi47B37 IP Miniature Square Camera, 2.1MP 1080p, 3.7mm Lens, Digital Day/Night, 51.5×47.5×35 mm (Discontinued)
*Product is Discontinued, Call For Replacement Options
KT&C KNC-HDi47B37 IP Miniature Square Camera, 2.1MP, 1080p, 3.7mm lens, Digital Day/Night, 51.5×47.5×35 mm. Ideal for indoor security, PoE or 12VDC powered IP surveillance systems.
The KT&C KNC-HDi47B37 is a compact IP miniature square camera engineered for high-performance surveillance in professional and industrial applications. Powered by a 2.1MP 1/2.8″ SONY Exmor CMOS sensor, it delivers 1920×1080 resolution at 30fps for full HD clarity. The 3.7mm fixed board lens provides a wide field of view, while advanced imaging features such as 3D DNR, Digital WDR, and BLC ensure consistent performance in challenging lighting conditions.
With dual H.264 and MJPEG streams, integrated PoE (IEEE 802.3af) and 12VDC power options, and support for MicroSD/SDHC edge storage up to 32GB, the KNC-HDi47B37 is designed for reliable deployment in security, education, and commercial monitoring environments. Compact dimensions (51.5×47.5×35 mm) and ONVIF compliance make it an adaptable choice for integrators across the market seeking discreet but robust IP surveillance solutions.
Features:
- 1/2.8″ SONY Exmor Progressive CMOS
- 1920 x 1080 @ 30fps
- H.264 & Motion JPEG
- Micro SD/SDHC card support up to 32GB
- Built-in Microphone
- Digital Day and Night
- BLC, D-WDR, 3D DNR
- Multiple Network Protocols Support
- Multiple User Access with Password Protection
- 3 Megapixel Fixed Board Lens (f = 3.7mm)
- Compression, Brightness, Contrast, Saturation, Hue, Sharpness, White balance, Exposure Control Analog Service Output
- PoE, DC12V
Applications:
- Education
- Security
- Surveillance/CCTV
- Meetings
- Industrial
| Image Sensor | 2.1 Megapixel, 1/2.8″ SONY Exmor Progressive CMOS |
| Video/Compression | H. 264 / Motion JPEG |
| Resolution | 1080P, SXGA, 720p, D1, CIF |
| Frame Rate | H.264 : 30fps / Motion JPEG : 30fps |
| Video Streaming | Multi-stream H.264 and Motion JPEG: simultaneous, individually configured streams in max. resolution at 30 fps controllable frame rate and bandwidth |
| Image Setting Option | Compression, brightness, contrast, saturation, hue, sharpness, white balance, exposure control, rotation of images, text and image overlay, privacy mask |
| Min. Illumination | 0.1 Lux / F2.0 |
| Lens | 3.7mm 3 Megapixel Board Lens |
| Day & Night | Digital Day and Night |
| Network Security | Multiple user access levels with password protection |
| Network Supported Protocols | IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP, DNS, DDNS, HTTPS, UPnP |
| Application Programming Interface (API) | Open API for software Integration, Including API and SDK |
| Intelligent Video | Video Motion Detection |
| Local Storage | Recording video streams or JPEG images when event triggered video streams or JPEG can be downloaded by internal web server |
| Alarm Triggers | Intelligent video, external inputs, manual triggers |
| Alarm Events | File upload via FTP, notification via e-mail, external output activation recording Video or JPEG using Micro-SD : recording video streams or JPEG images when event trigged, video streams or JPEG can be downloaded by internal web server |
| Interfaces Other | RJ-45 for Ethernet 10baseT/100baseTX with PoE (Power over Ethernet) Analog composite output (for Service Video) Cropping video display button for easy focus setting |
| Operating Temperature/Condition | -10 °C ~ 50 °C (14 °F ~ 122 °F) / Humidity 20~80% RH (non-condensing) |
| Power Supply | PoE (Power over Ethernet) Class 3 (IEEE 802.3af), DC12V |
| Dimension | 51.5mm (H) x 47.5mm (D) x 35mm |
