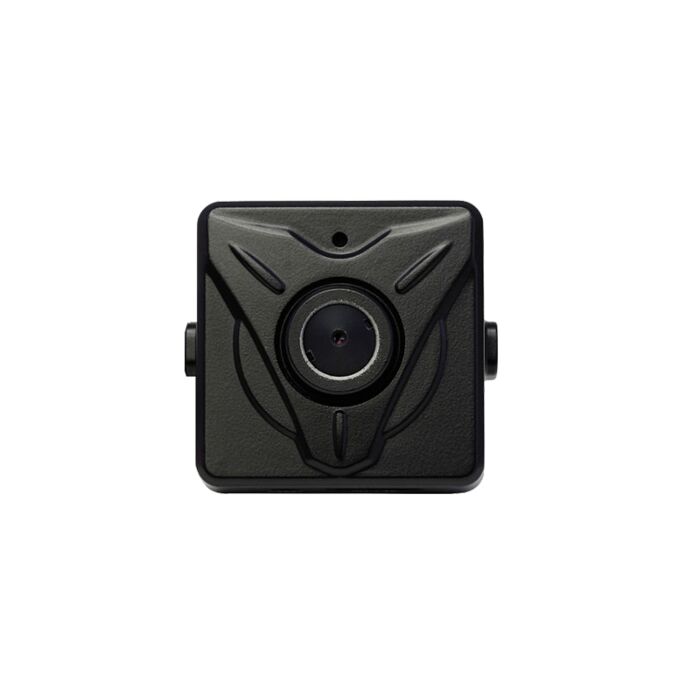

KT&C KNC-HDi47 Miniature IP Camera, 2.43MP SONY Exmor CMOS, 3.7mm Lens, 51.5×47.5×35mm
SKU
KNC-HDi47
Quick Overview
KT&C KNC-HDi47 IP miniature square camera with 2.43MP 1/2.8" SONY Exmor CMOS, 1080p HD, 3.7mm board lens, NDAA compliant, digital day/night, 3D DNR/BLC/HLC/AGC/AWB, compact 51.5×47.5×35mm housing.
The KT&C KNC-HDi47 is a superb semi covert NDAA compliant security camera that is made to be used in IP based surveillance systems. This miniature camera comes with an outstanding 1080p HD resolution and it is coupled with a wide angle 3.7mm lens for a great viewing area.
Features:
- 1/2.9" Progressive Scan CMOS
- 1080p 30(25)fps
- H.264 Main Profiles
- Fixed lens 3.6mm
- Electronic Day&Night
- 3D DNR, DSS, BLC, DWDR
- Internal Mic / Micro-SD up to 32GB
- Ethernet 10/100 Base-T LAN
- DC12V/PoE(IEEE802.3af)
| Image Sensor | 1/2.9" Progressive Scan SONY Exmor CMOS |
| Effective Pixels | 1936(H) × 1097(V) |
| Minimum Illumination | 0.2 Lux (F2.5, DSS Off) / 0.05 Lux (DSS On) |
| S/N Ratio | ≤ 50 dB |
| Video Output | Network, CVBS |
| Lens | Fixed 3.6 mm Lens |
| Angle of View | 106.9° (D) × 89.7° (H) × 47.5° (V) |
| IR LEDs | N/A |
| IR Visible Range | N/A |
| White Balance | Auto, Hold, Incandescent, D4000, D5000, Sunny, Cloudy, Flash, Under Water |
| Dynamic Range | BLC (1–5) / DWDR (Low, Middle, High) |
| Electronic Shutter Speed | Slow Shutter (OFF–×32), 1/25(30) ~ 1/8,000 sec |
| Auto Gain Control (AGC) | OFF ~ 45 dB |
| Day & Night | AUTO / COLOR / B&W (Electronic D&N) |
| Noise Reduction | 3D DNR |
| Motion Detection | 5 Zones |
| Privacy Masking | 5 Zones |
| Image Rotation | N/A |
| Lens Distortion Correction (LDC) | N/A |
| Image Stabilization (DIS) | N/A |
| Defog | N/A |
| Alarm | FTP, E-mail Notification, SD Recording, External Alarm Output |
| Ethernet | 10/100 Base-T LAN |
| Video Compression | H.264 Main Profile, MJPEG |
| Video Resolution | 1920×1080, 1280×720, 720×480, 320×240 |
| Max. Frame Rate | H.264: 30(25) fps @ all resolutions MJPEG: 30(25) fps @ all resolutions |
| Streaming Capability | Multiple Streaming (Up to 3 Profiles) |
| Streaming Method | Unicast |
| Bitrate Control | H.264: CBR / VBR, MJPEG: VBR |
| Audio | 1ch Audio (Internal MIC In), G.711 / G.726 Codec, 1-Way Audio |
| IP Version | IPv4 |
| Protocols | IPv4, HTTP, SMTP, UPnP, DNS, SSL, RTSP, TCP, DHCP |
| Web Browser | Internet Explorer |
| External Storage | Micro SD Card Slot, Up to 32 GB |
| SW Integration API | ONVIF Profile S, Open API, KT&C API |
| Ingress Protection | N/A |
| Dimensions | 47.5 × 47.5 mm |
| Weight | Approx. 130 g |
| Operating Temperature | -10°C ~ +50°C |
| Storage Temperature | -20°C ~ +60°C |
| Power Supply | 12 VDC (±10%) / PoE (IEEE 802.3af) |
| Power Consumption | Max. 220 mA (12 VDC) / Max. 3 W (PoE) |
