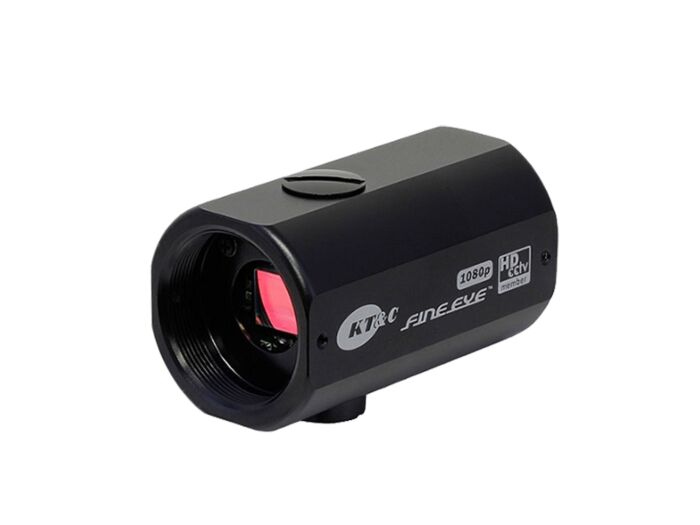

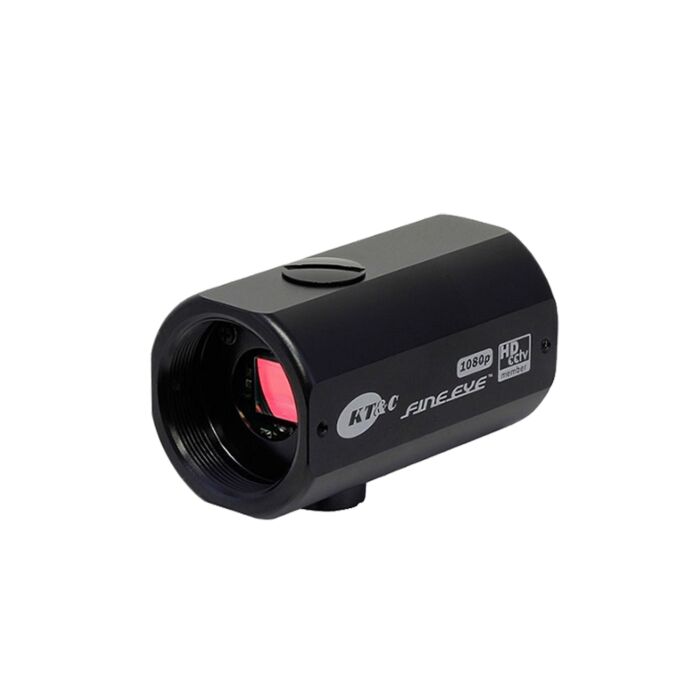

KT&C KPC-HDB650M HD Miniature Box Camera (Discontinued)
SKU
KPC-HDB650M
Quick Overview
*Product is Discontinued, Call For Replacement Options
1984 x 1105 Effective Pixels, 2.1 Megapixel, 1/3" SONY Exmor CMOS, C / CS Mount.
KT&C KPC-HDB650M 1080p HD C/CS Mount Miniature Bullet Camera.
Features:
Applications:
| Image Sensor | 2.1 Megapixel, 1/3″ SONY Exmor CMOS |
| Video Output Mode (HD-SDI) | 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps |
| Video Output Mode (TV Out) | NTSC / PAL selectable |
| Effective Pixels (H x V) | 1984 x 1105 |
| Unit Cell Size (H x V) | 2.8um x 2.8um |
| Lens | C / CS Mount |
| Lens Type | Manual / DC Iris Lens |
| S/N Ratio | More than 50dB |
| Min. Illumination | 0.1 Lux |
| Shutter Speed | Auto / Manual |
| Min. Exposure Time | 1/60,000sec |
| Day & Night | Digital Day & Night |
| On-Screen Display (OSD) | Built-in |
| BLC | On/Off |
| DNR | 3D DNR |
| White Balance | Auto / AutoExt / Push / Manual |
| Privacy Masking | 16 Zones |
| WDR | D-WDR |
| Digital Zoom | 1x ~ 8x |
| Digital Slow Shutter | Off, 2x ~ 8x |
| Operating Temperature | 14°F ~ 122°F (-10°C ~ 50°C) |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ 70°C) |
| Humidity Operating | Less than 80% RH |
| Humidity Storage | Less than 95% RH |
| Power Consumption | DC12V (±10%), Max. 110mA |
| Dimension | 1.2 x 1.2 x 2.2 inch (31 x 31 x 55 mm) |
| Weight | 0.2 lbs (113g) |
