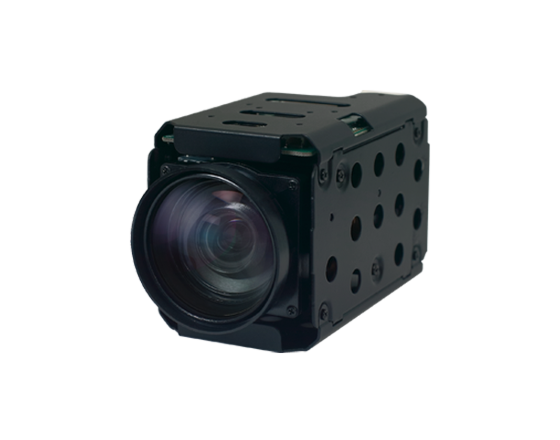

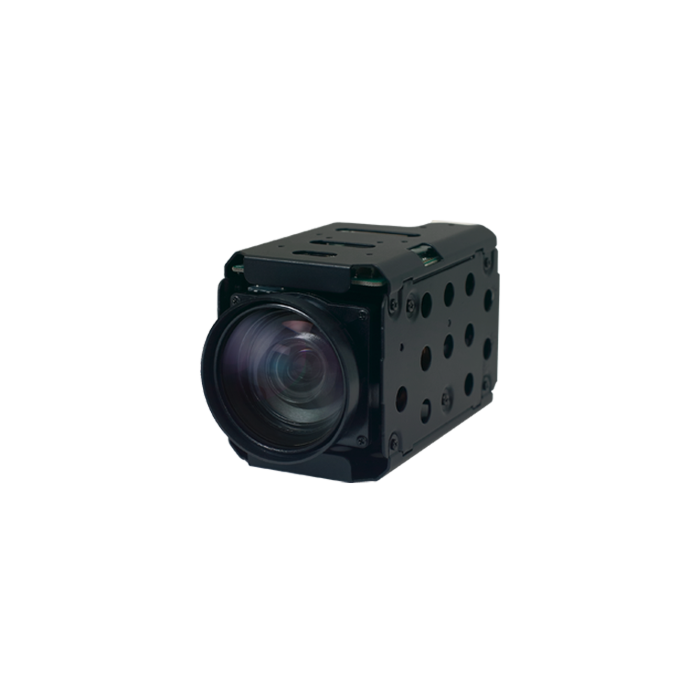

KT&C ATC-HZ5630Z-LP 1/2.8” 2.13M Exmor R CMOS Full HD Camera (Discontinued)
*Product is Discontinued, Call For Replacement Options
| Image Sensor | 1/2.8”Exmor R CMOS | ||
| Effective Pixels | 1945(H)x1097(V), Unit Cell Size(2.9µm X 2.9µm) | ||
| Output Format | LVDS/PARALLEL/CVBS : 1080p60/50/30/25, 720p60/50/30/25, 1080i60/50 | ||
Sync System | Internal | ||
| CVBS Scale | 16:9 / 4:3 (CVBS 720H) | ||
| LVDS Mode | Single/Dual | ||
| Video Output | CVBS | ||
LVDS/PARALLEL | |||
Min. Illumination Day Night (IR-cut filter on) S/N Ratio | (Sens-up Off, AGC 163( 45dB)) | ||
0.1 Lux @ F1.6 | |||
0.05 Lux @ F1.6 | |||
More than 55 dB | |||
| Zoom Magnification | X30 | ||
Practical f-value | 5.0 to 150.0 mm | ||
Practical Horizontal-Angle | 59.2°(W) ~ 2.0°(T) | ||
Practical Vertical Angle | 33.8°(W) ~ 1.15°(T) | ||
Practical Diagonal Angle | 67.5°(W) ~ 2.46°(T) | ||
F-value | F1.6(W ) ~ F4.3(T) | ||
Maximum Zoom Ratio | x1 ~ x360 | ||
Optical Zoom Ratio | x1 ~ x30 | ||
Digital Zoom Ratio | x1 ~ x12 | ||
Tilt | - | ||
Speed (Focus Tracking On) | 4.5 ~ 30 sec | ||
Speed (Focus Tracking Off) | 4.0 sec | ||
Control Mode | Auto / Manual / Interval / One Shot(=Zoom Trigger, One Push)/PRESET | ||
Focal Range | Infinity~ 1.5m(T)~0.1m(W) | ||
IR Correction | Standard/IR Light/user -20~+20 | ||
D&N mode | Auto / Day (Color) / Night (BW) / External-H / External-L | ||
Night Color | Off/On | ||
White Balance | Auto / ATW / Indoor / Outdoor / Push / Manual | ||
AE mode | Auto / Shutter Priority / Iris Priority/AGC Priority/Manual | ||
Brightness (Exp.Comp) | 0~14 | ||
AGC Limit | 0(0dB)~255(72dB) | ||
Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12),1/30(25), 1/60(50)~1/30000 | ||
Manual AGC | 0dB ~ 72dB | ||
Manual Iris | F1.6 ~ F32, Close | ||
Sens-Up | Off ~ 32fields | ||
ETC | Spot AE, Slow AE response | ||
Digital Slow Shutter | Max. 32 fields | ||
Image Freeze | Off / On | ||
Image Reverse (E-FLIP | Off / Horizontal(mirror) / Vertical / H+V(180° flip) | ||
Privacy Masking | Spherical Privacy - 8-zone - Interlock / Non-Interlock Mask - 14 mask color selectable, semi-transparency - Pan(0°~360°), Tilt(+90°~-90°) | ||
Title Display | 16 characters (display position selectable) | ||
Motion Detect | 4-Zone - Alarm output : OSD / Serial Communication | ||
D-WDR | Off / Low/Middle/High | ||
WDR | Off/On, Adjustable(Level:0~29, Contrast:0~5, Bright:0~19, AGC MAX:1~50) | ||
BLC | Off / On, Area selectable | ||
HLC | Off / 0 ~ 20, Area selectable | ||
AGC | Max.72dB | ||
Sharpness | Adjustable(0~15) | ||
3DNR | Off/Auto/Low/Middle/High | ||
2DNR | Off/Auto/Low/Middle/High | ||
Defog | Off / On / Auto | ||
Gamma | 0.40/0.45/0.50/0.55/0.60/0.70/0.80/0.90/1.00 | ||
Lens Shading | Off /ON | ||
Defect Detection | Support | ||
Digital Image Stabilizer | On /Off | ||
Picture Effect | OFF/NEGATIVE/GRAY MODE/REDDISH-1~4/BLUISH-1~4/GREENISH-1~4 | ||
Picture In Picture | 1/4,1/9,1/16,1/25 | ||
Position Preset (zoom/focus) |
| ||
Memory Preset |
| ||
OSD | English | ||
Coaxial Communication | - | ||
Camera ID | 0~255 | ||
Remote Control | RS-232 TTL +5.0V (+3.3V Compatible) | ||
Control Protocol | VISCA /Pelco-D/Pelco-P/HITACHI : automatically detection | ||
Communication Speed | 2400/4800/9600(default)/19200/38400/57600/115200bps selectable | ||
Supply Voltage | DC 12V (+9.0V ~ +15V) | ||
Supplied Current (motor on) | 390mA(530mA) | ||
Consumption (motor on) | 4.7W(6.4W) | ||
WxHxD[mm], Weight[g] - Standard | 50.0x58.8x96.1mm, Approx. 240g | ||
Operating condition | Temperature (-10°C~50 °C / 14°F~122°F), Humidity (20% ~ 80%) | ||
Storage condition | Temperature (-20°C~60 °C / -4°F~140°F), Humidity (20% ~ 95%) | ||
