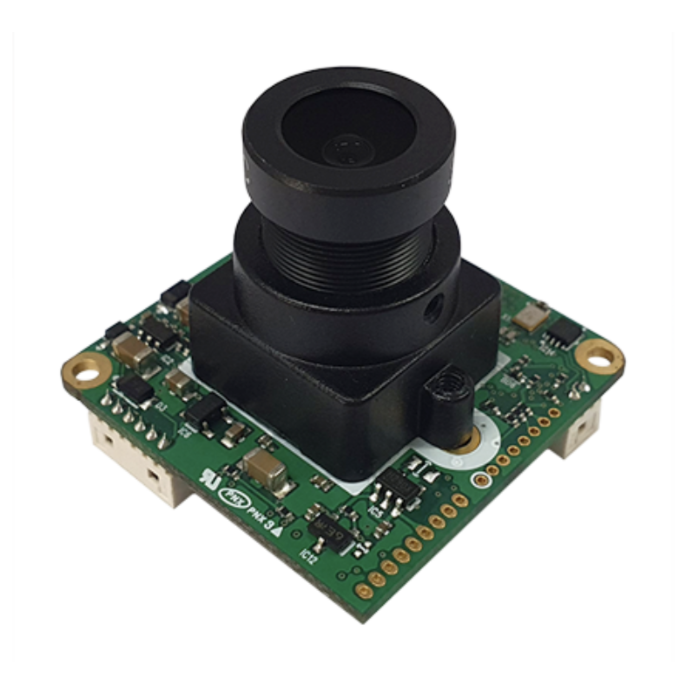

KT&C ACE-HMS6332-iB IP Board Level Module Camera
The KT&C ACE-HMS6332-iB is an NDAA-compliant compact network camera featuring a 1/2.8" SONY STARVIS progressive scan CMOS sensor, delivering sharp 1080p video at up to 30fps. Optimized for low-light performance, it achieves down to 0.01 lux with DSS enabled and supports Double Shutter WDR with an estimated 116dB, ensuring balanced imaging in high-contrast environments. A fixed 3.6mm lens provides a wide 112.3° diagonal field of view, making it ideal for close-range monitoring and embedded camera applications.
Supporting H.264 (Baseline/Main) and MJPEG compression, the camera offers up to three simultaneous streams for flexible bandwidth and system optimization. Advanced image processing includes 2D/3D DNR, electronic day/night switching, motion detection with configurable zones, and privacy masking. With ONVIF integration, 10/100 Ethernet connectivity, and optional PoE power, this ultra-compact 32 × 32 mm, 5.65 g camera is well suited for space-constrained IP surveillance and industrial network video deployments.
Features:
- 1/2.8" Progressive Scan CMOS
- 1080p 30(25)fps
- H.264 Main/Base Profiles
- Fixed lens 3.6mm
- Electronic Day&Night
- 3D DNR, DSS, BLC, WDR
- Ethernet 10/100 Base-T LAN
- DC12V/Optional: PoE(IEEE802.3af)
- Fast boot up(within 2 seconds) based on RTOS
| Image Sensor | 1/2.8" Progressive Scan SONY STARVIS CMOS |
| Effective Pixels | 1945(H) × 1097(V) |
| Minimum Illumination | 0.05 Lux (F2.5, DSS Off) / 0.01 Lux (DSS On) |
| S/N Ratio | ≤ 50 dB |
| Video Output | Network |
| Lens | Fixed 3.6mm Lens |
| Angle of View | 112.3° (D) × 93.7° (H) × 49.3° (V) |
| IR LEDs | N/A |
| IR Visible Range | N/A |
| White Balance | Auto, 3000K, 5000K, 8000K |
| Dynamic Range | Double Shutter WDR, 116 dB (Estimated) |
| Electronic Shutter Speed | Slow Shutter (OFF ~ ×32), 1/25(30) ~ 1/30,000 |
| Auto Gain Control (AGC) | OFF ~ 69 dB |
| Day & Night | AUTO / COLOR / B&W (Electronic D&N) |
| Noise Reduction | 2D, 3D DNR |
| Motion Detection | 60 × 34 Motion Blocks, up to 4 Zones |
| Privacy Masking | 16 Zones |
| Image Rotation | N/A |
| Lens Distortion Correction (LDC) | N/A |
| Image Stabilization (DIS) | N/A |
| Defog | N/A |
| Alarm | Trigger: Motion Events: Network |
| Ethernet | 10/100 Base-T LAN |
| Video Compression | H.264 Baseline, Main Profile, MJPEG |
| Video Resolution | 1920×1080, 1280×720, 800×600, 704×480, 704×400, 640×480, 640×360, 320×240 |
| Max. Frame Rate | 1st Stream: 1080p 30(25)fps (H.264) 2nd Stream: 640×360 30(25)fps (H.264) 3rd Stream: 1080p 30(25)fps (MJPEG) |
| Streaming Capability | Multiple Streaming (Up to 3 Profiles) |
| Streaming Method | Unicast |
| Bitrate Control | H.264: CBR, VBR, CVBR |
| Audio | - |
| IP Version | IPv4 |
| Protocols | HTTP, HTTPS, UPnP, DNS, DDNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP |
| Web Browser | Internet Explorer, Edge, Safari, Firefox, Chrome |
| External Storage | N/A |
| Software Integration API | ONVIF |
| Ingress Protection | N/A |
| Dimensions (mm) | 32 × 32 mm |
| Weight | Approx. 5.65 g |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Power Supply | 12V DC (±10%) / Optional: PoE (IEEE 802.3af) |
| Power Consumption | Max. 190 mA (12V DC) / Max. 3.0 W (PoE) |
