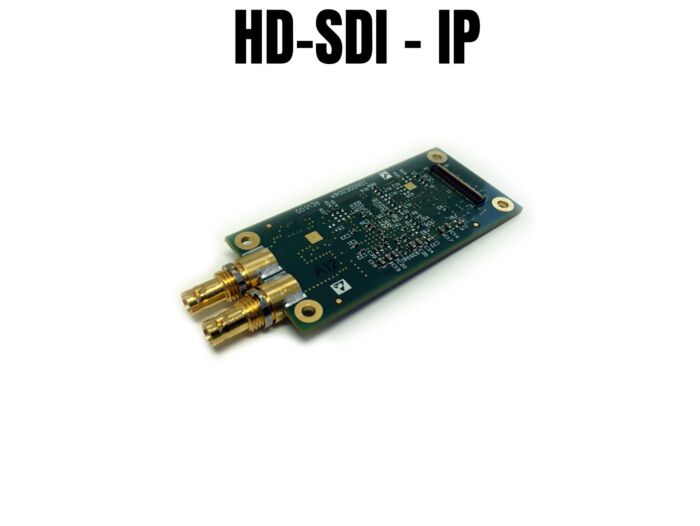

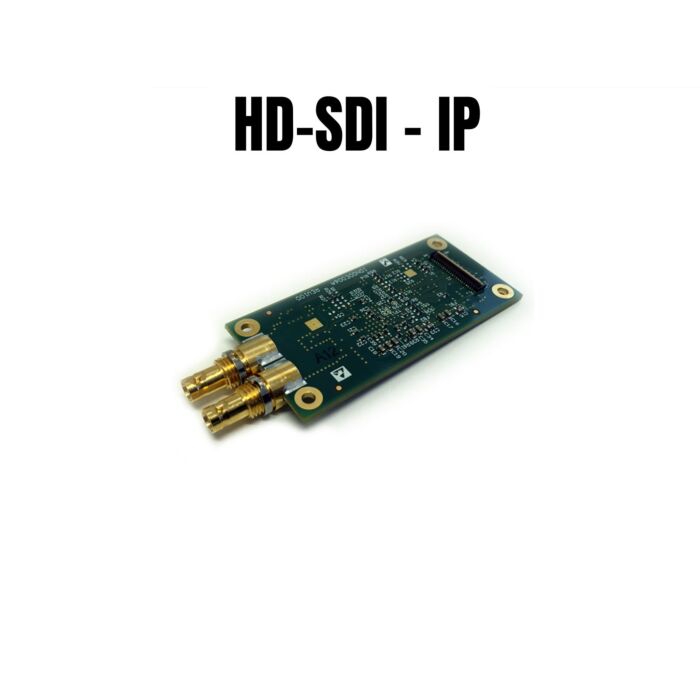

IONODES ATOMAS-MICRO-HDSDI HD-SDI IP Video ATOMAS-MICRO Add-on Encoder Module for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
The IONODES ATOMAS-MICRO-HDSDI module offers unparalleled versatility in converting HD-SDI video streams into IP streams, seamlessly integrating with the ATOMAS-MICRO encoder platform. Designed for industrial and machine vision applications, this compact module supports Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras, ensuring high-quality video transmission over IP networks.
Its miniaturized form factor with HD-BNC connectors allows for easy integration into existing setups, while the extended temperature design ensures reliable operation in harsh environments. The module features an integrated adaptive cable equalizer, enabling stable video transmission over distances up to 400 meters. Additionally, it includes a cable driver for HD-SDI loop-out, facilitating flexible video monitoring configurations.
Equipped with an embedded software stack featuring Onvif Profile S compatibility, the ATOMAS-MICRO-HDSDI module supports seamless integration with various software platforms, enhancing interoperability and ease of use. Its auto-detection of HD-SDI signals and local loop-out feature further contribute to its adaptability in custom camera solutions.
Ideal for industrial monitoring systems, surveillance applications, and machine vision setups, the ATOMAS-MICRO-HDSDI module from Aegis Electronic Group Inc. delivers reliable, high-performance HD-SDI to IP conversion solutions.
Features:
- Converts HD-SDI to IP for seamless integration
- Supports up to 1080p60 resolution
- Miniaturized form factor with HD-BNC connectors
- Integrated adaptive cable equalizer for stable transmission
- Onvif Profile S compatible software stack
Applications:
- Industrial monitoring systems
- Surveillance and security applications
- Machine vision and inspection setups
| Video Input 1 | 1 x HD-BNC Connector 75 Ohm |
| Video Output | 1 x HD-BNC Connector 75 Ohm * Loop-out of video input |
| Connectivity | 1 x Board to board conector * Connection to ATOMAS-MICRO encoder only * Exposes: video signal, i2c for command / control |
| Video Standards | Supports the following video standards: - SMPTE 425M (Level A and Level B) - SMPTE 424M - SMPTE 292M - SMPTE 259M-C * Interlaced video signals not supported |
| Video Resolution | Supports the following resolutions: - 1080p (25,30,50,60 fps) - 720p (25,30,50,60 fps) * Additional resolutions upon reques |
| Cable Equalizer | Integrated adaptive cable equalizer Integrated Reclocker with low phase noise Integrated VCO Typical equalized length of cable: - 150m at 2.97Gb/s - 230m at 1.485Gb/s - 440m at 270Mb/ |
| Dimensions | 1.09” x 2.35” mm * Same dimensions as the ATOMAS-MICRO |
| Power Consumption | Approx. 700mW |
| Operating Temp. | -40C to 85C (case temperature) |
| Warranty | 2 Years Standard |
| Other | Pb Free, RoHS compliant |
