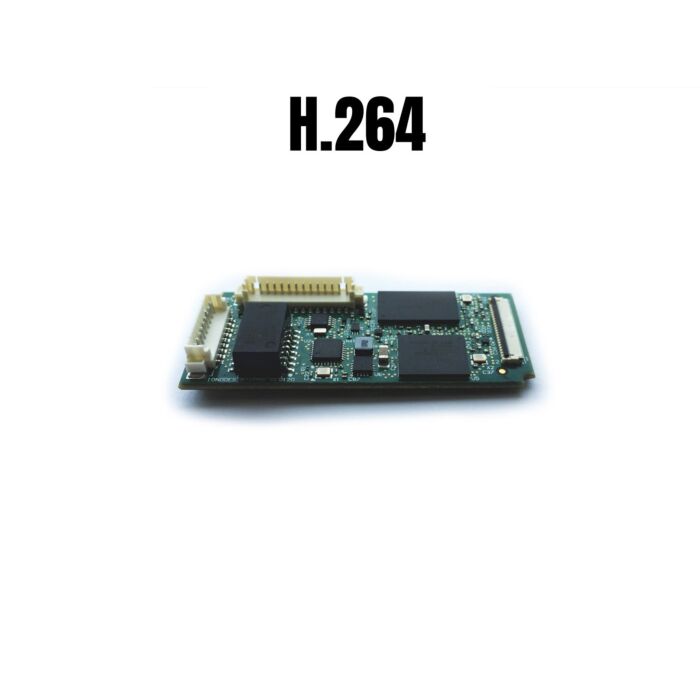

IONODES ATOMAS-MICRO-CNCT Full HD Parallel to IP Video System on Encoder Module for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
Industrial Monitoring with the IONODES ATOMAS-MICRO-CNCT Encoder Module
Aegis Electronic Group Inc. presents the IONODES ATOMAS-MICRO-CNCT Full HD Parallel to IP Video System on Encoder Module, a powerful solution designed to revolutionize your camera systems. With its unique miniaturized form factor, this encoder module is ideal for a wide range of OEM camera designs, particularly those requiring integration into compact HD camera systems.
The ATOMAS-MICRO-CNCT supports an HD parallel video interface and high-profile H.264 video compression, enabling seamless IP video streaming at resolutions up to 1080p60. This module is Onvif profile S compliant, ensuring compatibility with a variety of software platforms through its robust web-based administrative user interface. Additionally, the encoder module allows for local recording to an SD card, offering flexibility in video storage and management.
Key features such as a 5.5 to 14 VDC power input range, low latency streaming, on-board RTC, and a hardware watchdog make this module a reliable choice for industrial and machine vision applications. Advanced options like PoE support, HD-SDI / 3G-SDI compatibility, and external i2c board control expand its integration possibilities, catering to diverse custom camera solutions. Enhance your video system's performance and reliability with the IONODES ATOMAS-MICRO-CNCT, tailored for industrial excellence and innovative machine vision applications.
Features:
- HD parallel video interface
- High profile H.264 video compression
- IP video streaming up to 1080p60
- Local SD card recording
- Onvif profile S compliant
- Web-based administrative user interface
- 5.5 to 14 VDC power input range
- Low latency streaming
- On-board RTC and hardware watchdog
- Advanced options: PoE, HD-SDI / 3G-SDI, external i2c board control
Applications:
- OEM camera design integration
- Small HD camera systems
- Industrial video monitoring
- Machine vision systems
- Security and surveillance
- Custom camera solutions with advanced control features
| Network | 1 x 10/100 Base-T Ethernet |
| Video Interface | 45-pin parallel video interface * Parallel 16bit (YCbCr422) * Matches SONY FCB Micro specifications |
| Serial Port | 1 x UART * Software accessible * Interface possible to PTZ controlle |
| I/O | 2 x GPIO 1 x Board Reset Signal 1 x Dual Color Status LED Signal 1 x Mobile Host Storage Controller (SD/MMC) |
| Video Resolution | Supports sensor inputs at up to 12 megapixel |
| Video Compression | H.264/MPEG-4 AVC (up to high profile) MPEG4 Part 2 JPEG |
| Still Images | Still image capture at up to 12 megapixels |
| H.264 Performance | Total D1@390 fps or Full HD 1080p@65 fps Examples: 1 x 1080p60 fps + 1 x D1 @ 30 fps 2 x 1080p30 fps + 1 x D1 @ 30 fps (SONY FCB Micro limited to 1080p@30 fps |
| Video Latency | Can reach less than 80ms latency |
| Image Processing | Lens distortion correction Motion adaptive deinterlacing Arbitrary image resizing and scaling ratio 2D/3D noise reduction Edge enhancement Frame difference motion detection Privacy masks ROI based video compression |
| Operating System | Linux |
| HW Watchdog | Auto-boot, OS supervision, temperature monitoring, software monitoring |
| Other | Realtime Clock (RTC) |
| Internal | 1GB NAND Flash |
| External | External Storage via SD/MMC |
| Networking | IPv4/v6, UDP, TCP, IGMP, ARP, DHCP, DNS, NTP |
| Streaming | RTSP, RTP, HTTP, Web Socket |
| Management | HTTP, HTTPS, Bonjour, ONVIF, PSIA, ION API, SNMP, SMT |
| Security | Basic / Digest Authentication, SSL |
| Web GUI | System configuration and maintenance Live video and PTZ control Cross-browser support Smartphone and tablet support |
| Programming Interface | ION API, ONVIF Profile S |
| System Monotoring | Video signal, storage medium, temperature, memory, CPU, network |
| Media Recording | Recorded ASF audio/video to SD/MMC |
| Software Update | Fault-tolerant, remote accessible |
| Alarm Triggers | I/O input, motion detection, system monitor |
| PTZ Control | Full Pelco D implementation Can interface to PTZ controller (UART) Programmable preset tours User-defined custom command |
| Other Features | Email notifications (on event or schedule) Text overlay OEM rebranding / customization |
| Dimensions | 2.16 inch x 0.9 inch (main board) |
| Power Input | 5.5VDC to 14VDC PoE (option, via sister board) |
| Operating Temp. | Dependent on customer mechanical design * All components are -40C to 85C (Tcase) |
| Warranty | 2 Years Standard |
