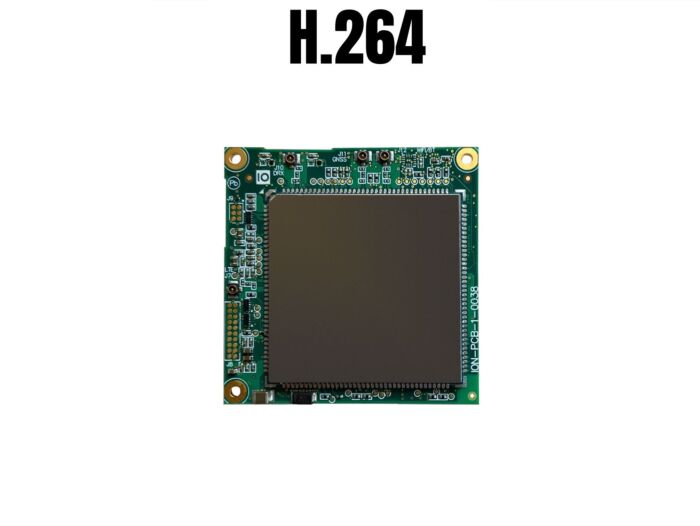

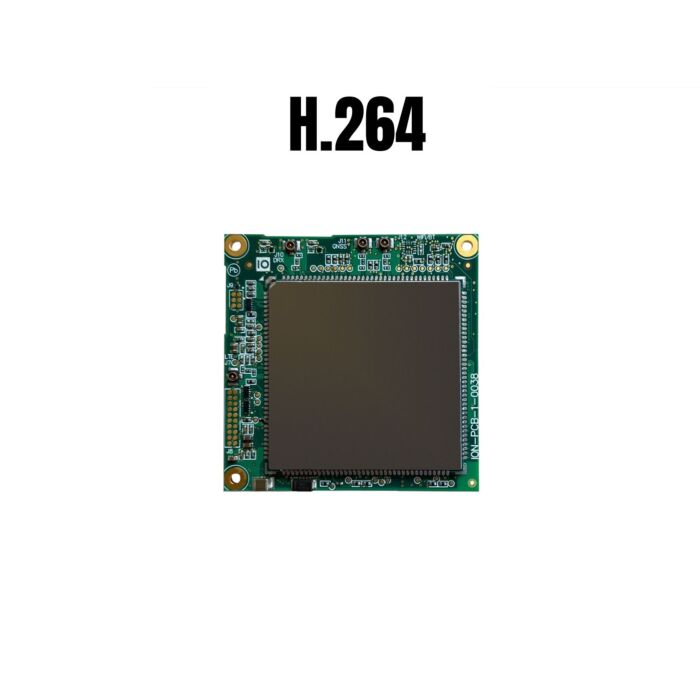

IONODES ATOMAS-IOT-DUAL Multi-Camera IoT Video Encoder Module for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
Simultaneous Dual Camera Support
The ATOMAS-IOT-DUAL is designed for direct connection to the leading LVDS zoom camera blocks, such as Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras, with additional support for MIPI and digital video sources such, such as a thermal cameras. Two cameras can be processed simultaneously and published via Onvif and other IP API’s for streaming / recording.
High Performance Video Engine
The ATOMAS-IOT-DUAL features a powerful video codec engine capable of generating multiple HEVC / H.264 IP video streams at different quality settings. In single input mode, it can generate HD streams at 4K30fps; in dual input mode it can generate streams at up to 2K30fps for each input.
IoT Enabled for Endless Possibilities
The ATOMAS-IOT-DUAL offers the latest in IoT and networking connectivity functions including: Ethernet, 4G LTE, Wi-Fi, GPS, Bluetooth, CAN Bus, 9-axis IMU and much more.
Features:
- Three video input – MIPI, LVDS, Digital
- Two simultaneous video inputs / cameras
- Glueless connection to LVDS zoom blocks
- HEVC / H.264 / MJPEG video compression
- Resolutions up to 4K30
- Local recording to microSD card
- Onvif Profile G,S,T
- Optional IoT features: LTE, Wi-Fi, GPS, Bluetooth, CAN Bus
Applications:
- Video surveillance cameras
- Thermal / Visible Camera Systems
- Advanced PTZ camera systems
- UAV / Military Applications
- Robotics applications
| Network | 1 x 10/100 Base-T Ethernet 3G / 4G LTE (optional) Wi-Fi: 2.4G/5GHz, 802.11 a/b/g/n/ac (optional) Bluetooth: BT 4.2LE (optional) |
| I/O & Audio | 2 x Dry Contact Inputs, 1 x I/O Output Pin 3 x PWM GPIO 1 x RS-485, 1 x UART (TTL), 1 x I2C 1 x Board Reset Signal 4 x uFL Antenna Connectors (LTE, Wi-Fi, BT, GPS) 1 x VRTC (2.0V to 3.25V) 1 x 3.3V Out (max. 0.1A), 1 x 5V Out (max. 0.5A) 2-ch Audio Line In / 2-ch Audio Line Out 1 x CAN Bus (optional) |
| Video Input 1 | LVDS interface *Matches SONY FCB specifications |
| Video Input 2 | Digital video interface *For use with compatible IONODES video adapter boards |
| Video Input 3 | 4-lane MIPI CSI-2 video interface *For use with compatible video adapter boards |
| Video Resolution | Supports sensor inputs at up to 24MP |
| Video Encoding | HEVC / H.264 / MJPEG (up to 4K30FPS) |
| Video Latency | Can reach less than 120ms latency |
| Image Processing | 2D/3D noise reduction Edge enhancement Frame difference motion detection Privacy masks |
| Processors | Qualcomm Snapdragon Processor Supervisory MCU for fault-protection |
| Operating System | Embedded Linux / Android |
| HW Watchdog | Auto-boot, OS supervision, temperature monitoring, software monitoring |
| Other | Realtime Clock (RTC) & Temperature Sensor 9-axis IMU (optional) |
| Internal Storage | 16GB eMMC |
| External Storage | External storage via microSD *Requires optional microSD / SIM combo adapter board |
| Networking | IPv4/v6, UDP, TCP, IGMP, ARP, DHCP, DNS, NTP |
| Streaming | RTSP, RTP, HTTP, Web Sockets |
| Management | HTTP, HTTPS, Bonjour, ONVIF, ION API, SNMP, SMTP |
| Security | Basic / Digest Authentication, SSL |
| Web GUI | System configuration and maintenance Live video and PTZ control Cross-browser support Smartphone and tablet support |
| Programming Interface | ION API, ONVIF Profile G,S,T |
| System Monitoring | Video signal, storage medium, temperature, memory, CPU, network |
| Media Recording | Recorded ASF audio/video to SD/MMC |
| Software Update | Fault-tolerant, remote accessible |
| Alarm Triggers | I/O input, motion detection, system monitor |
| PTZ Control | Can interface to PTZ controller (UART) Programmable preset tours User-defined custom commands |
| Other Features | Email notifications (on event or schedule) Text overlay OEM rebranding / customization |
| Dimensions | 58 mm x 58 mm |
| Power Input | 9VDC to 15VDC |
| Operating Temp. | Dependent on customer mechanical design *All components are -20C to 70C (Tcase) |
| Warranty | 2 Years Standard |
