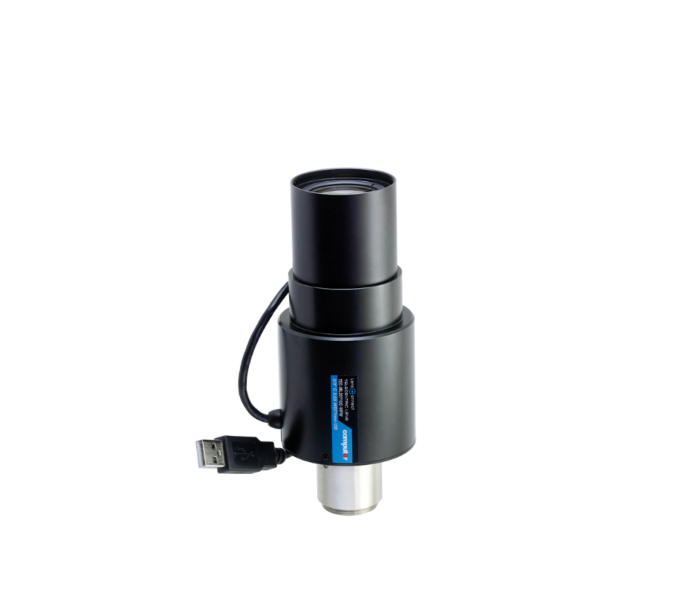

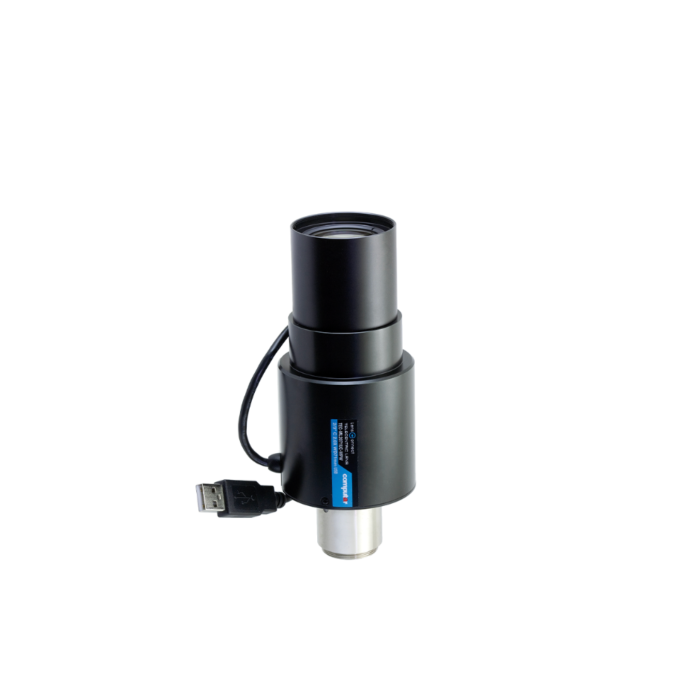

CBC-Computar TEC-ML2071UC-MPW 2.0X Motorized Telecentric Lens | 8MP, 2/3", F6.5, LensConnect, C-Mount

TEC-ML2071UC-MPW 2.0X Motorized Telecentric Lens Overview

The CBC-Computar TEC-ML2071UC-MPW is an 8MP, 2/3" motorized telecentric LensConnect lens built for high-precision machine vision, metrology, robotics, factory automation, and industrial inspection systems that require enlarged detail capture with repeatable optical performance.

Featuring 2.0X magnification and a consistent F6.5 aperture, the TEC-ML2071UC-MPW is designed for applications that need close-up inspection of small parts, fine features, surface details, edges, markings, and dimensional characteristics. Its telecentric optical design helps minimize perspective error and maintain measurement accuracy, making it a strong choice for high-accuracy inspection workflows where object size and geometry must remain consistent across the field of view.

As part of Computar’s focus-driven LensConnect Telecentric Lens Series, this model supports remote motorized focus control and power through USB, with I2C versions available for embedded vision and OEM system integration. The motorized design allows users to adjust focus without physically touching the lens, improving repeatability, reducing setup time, and simplifying calibration in automated inspection environments.

The TECML2071UCMPW maintains telecentricity even during focus adjustment and supports high-resolution sensors with pixel sizes down to 2.74 μm. For applications such as semiconductor inspection, electronics inspection, medical device inspection, precision measurement, robotics alignment, automated gauging, and quality control, this 2X motorized telecentric lens delivers the magnification and control needed for demanding machine vision systems.

Key Features:

• 8MP motorized telecentric lens for precision machine vision applications
• 2.0X magnification for close-up inspection of small parts and fine details
• Supports 2/3" image sensors
• Consistent F6.5 aperture across the LensConnect Telecentric Lens Series
• Industry’s first motorized telecentric lens series
• Remote motorized focus adjustment and power supply through USB
• I2C version available for embedded vision and OEM integration
• Maintains telecentricity during focus adjustment
• Ultra-high-resolution optical design compatible with 2.74 μm pixel size sensors
• C-mount design for compatibility with industrial machine vision cameras
• Supports custom magnification specifications for unique application requirements

Applications:

• High-magnification machine vision inspection
• Precision metrology and dimensional measurement
• Semiconductor and micro-component inspection
• Electronics, PCB, and solder joint inspection
• Surface defect detection and fine feature analysis
• Factory automation and quality control
• Robotics-guided inspection and alignment
• Medical device inspection
• Automated gauging and measurement systems
