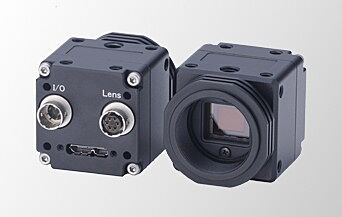

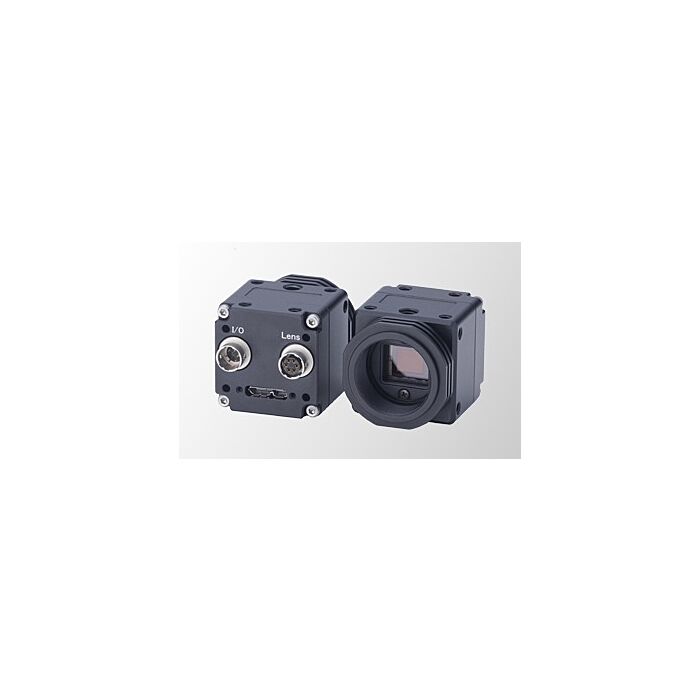

Omron STC-SCS881U3V-LCNT – 8.9MP Sony IMX267 Color Global Shutter USB3 Vision Camera (LensConnect Compatible)
The Omron STC-SCS881U3V-LCNT is a high-resolution 8.9MP color area scan camera built around the Sony IMX267 global shutter CMOS sensor. Delivering 4096 x 2160 resolution at up to 32.5 fps, this camera is designed for machine vision applications requiring accurate color reproduction and distortion-free imaging.
With USB3 Vision 1.0.1 support and compatibility with CBC’s LensConnect system, the STCSCS881U3VLCNT offers a flexible and reliable solution for industrial inspection, automation, and embedded vision systems.
Its compact form factor and C-mount design allow easy integration into space-constrained environments.
Key Features:
- 8.9MP resolution (4096 × 2160)
- Sony IMX267 color global shutter CMOS sensor
- 32.5 fps high-speed capture
- USB3 Vision 1.0.1 interface
- Compatible with CBC LensConnect lenses
- BayerRG color output formats
- IR cut filter for accurate color imaging
- ROI and full scanning modes
- Wide exposure range (1.5 µs to 16,777 sec)
- Compact 35 mm industrial housing
Industrial Applications:
- Machine Vision
- Factory Inspection
- Robotics
- Color Sorting
- Metrology
- Automation Systems
Why Engineers Choose This Model
The STC-SCS881U3V-LCNT combines high-resolution color imaging with global shutter performance, allowing accurate capture of fast-moving objects without motion distortion.
Its compatibility with CBC’s LensConnect system simplifies optical integration, while USB3 Vision support ensures easy deployment with industrial PCs and embedded platforms.
This model is particularly well suited for applications requiring both high detail and color accuracy in industrial environments.
FAQ
What sensor does the STC-SCS881U3V-LCNT use?
Sony IMX267 CMOS sensor.
Is this a color camera?
Yes, it outputs BayerRG color formats.
Is it global shutter?
Yes, it supports global shutter for distortion-free imaging.
What interface does it use?
USB3.0 with USB3 Vision 1.0.1 protocol.
Is it compatible with LensConnect lenses?
Yes, it supports CBC LensConnect lenses.
| Product Model | STC-SCS881U3V-LCNT |
|---|---|
| Camera Type | Area Camera |
| Resolutions | 8.9MP |
| Color / Monochrome | Color |
| Effective Pixels | 4,096 (H) x 2,160 (V) |
| Frame Rate | 32.5 fps |
| Interface | USB3.0 |
| Protocol | USB3 Vision 1.0.1 |
| Power Supply | External power (+8.0 to +24 Vdc) |
| Power Consumptions | Less than 7.6 W (with LensConnect lens) |
| Operational Temperature | Lower limit: 0 deg. C (Environmental temperature) / Upper limit: +71 deg. C (Temperature sensor on camera) |
| Storage Temperature | Lower limit: -30 deg. C (Environmental temperature) / Upper limit: +70 deg. C (Environmental temperature) |
| Image Sensor | |
| Image Sensor | SONY IMX267 |
| Shutter Type | Global Shutter |
| Optical Size | 1" |
| Cell Size | 3.45 (H) x 3.45 (V) µm |
| Mechanical | |
| Dimensions | 35 (W) x 35 (H) x 41.5 (D) mm |
| Weight | Approximately 80 g |
| Lens Mount | C Mount |
| Optical Filter | IR cut filter on it |
| Interface | |
| Connector | USB3.0 micro B x 1 |
| Power / Signal Connector | Power/IO: HR10A-7R-6PB (Hirose) or equivalent x 1 |
| Lens | HR10A-7R-6S (Hirose) or equivalent x 1 |
| Functions | |
| Scanning Mode | Full scanning / ROI |
| Operational Mode | Edge preset trigger / Pulse width trigger / Start stop trigger/ Free-run |
| Image Pixel Format | BayerRG8 / BayerRG10 / BayerRG12 / BayerRG10Packed / BayerRG12Packed |
| Exposure Time | 1.5 µseconds to 16,777 seconds |
| Analog Gain | 0 to 19.2 dB |
| Digital Gain | x1 to x2 |
| Gamma | 0.1 to 4.0 |
| Binning | N/A |
| Decimation | x2 horizontal and vertical individually / Off |
| Image Flip | Vertical flip / Horizontal flip / Vertical and horizontal flip / Off |
| Defective Pixel Correction | Up to 1,080 pixels |
| Save User Settings | Support (Eight settings) |
| White Balance | Auto exposure / Auto gain |
| FFC (Flat Filed Correction) Function | N/A |
| Auto Control Function | Auto / Manual / Push to set white balance |
| Chunk Function | Support |
| Event Function | Support |
| PTP Function (IEEE1588) | N/A |
