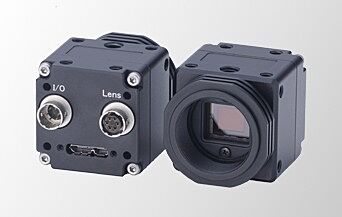

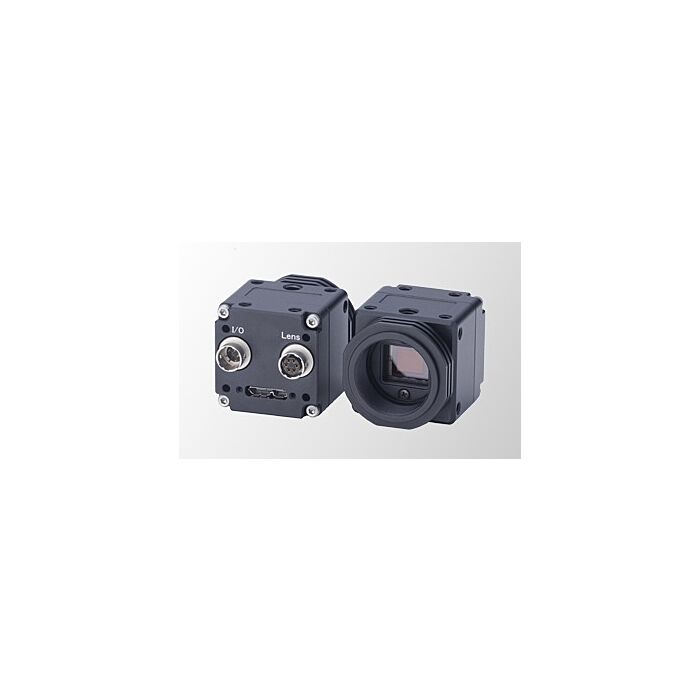

Omron STC-SBS881U3V-LCNT – 8.9MP Sony IMX267 Global Shutter USB3 Vision Camera (LensConnect Compatible)
The Omron STC-SBS881U3V-LCNT (STCSBS881U3VLCNT) is a high-resolution 8.9MP area scan camera designed for industrial imaging applications that demand precise detail, stable performance, and distortion-free image capture. Built around the Sony IMX267 global shutter CMOS sensor, this camera delivers 4096 x 2160 resolution at up to 32.5 fps over a USB3 Vision 1.0.1 interface.
Its compact housing, C-mount format, and compatibility with CBC LensConnect lenses make it well suited for machine vision, inspection, automation, and other embedded vision applications where image quality and reliable integration matter.
Key Features:
- 8.9MP resolution
- Sony IMX267 global shutter sensor
- 4096 x 2160 effective pixels
- Up to 32.5 fps
- USB3 Vision 1.0.1 interface
- Monochrome image output
- Compatible with CBC LensConnect lenses
- Full scanning and ROI support
- Wide exposure range from 1.5 µseconds to 16,777 seconds
- Compact 35 x 35 x 41.5 mm housing
Industrial Applications:
- Machine Vision
- Factory Inspection
- Robotics
- Metrology
- Automation Systems
- Embedded Vision
Why Engineers Choose This Model
The STC-SBS881U3V-LCNT is a strong option for applications requiring high-resolution monochrome imaging with global shutter performance. The Sony IMX267 sensor helps capture fast-moving objects without motion distortion, making it useful in inspection, automation, and measurement systems.
Compatibility with CBC’s LensConnect lens platform adds integration flexibility for users building robust industrial camera systems. Combined with USB3 Vision connectivity, this model is well suited for engineers seeking a compact, high-detail camera for modern imaging workflows.
FAQ
What sensor does the STC-SBS881U3V-LCNT use?
The STC-SBS881U3V-LCNT uses the Sony IMX267 image sensor.
Is the STC-SBS881U3V-LCNT a global shutter camera?
Yes, it features a global shutter for distortion-free imaging of moving objects.
What is the resolution of the STC-SBS881U3V-LCNT?
It offers 8.9MP resolution with 4,096 (H) x 2,160 (V) effective pixels.
What interface does this camera use?
This model uses a USB3.0 interface and supports USB3 Vision 1.0.1.
Is this camera compatible with CBC LensConnect lenses?
Yes, the STC-SBS881U3V-LCNT is designed for compatibility with CBC LensConnect lenses.
What applications is this camera suited for?
It is well suited for machine vision, factory inspection, robotics, metrology, and automation systems.
| Product Model | STC-SBS881U3V-LCNT |
|---|---|
| Camera Type | Area Camera |
| Resolutions | 8.9MP |
| Color / Monochrome | Monochrome |
| Effective Pixels | 4,096 (H) x 2,160 (V) |
| Frame Rate | 32.5 fps |
| Interface | USB3.0 |
| Protocol | USB3 Vision 1.0.1 |
| Power Supply | External power (+8.0 to +24 Vdc) |
| Power Consumptions | Less than 7.6 W (with LensConnect lens) |
| Operational Temperature | Lower limit: 0 deg. C (Environmental temperature) / Upper limit: +71 deg. C (Temperature sensor on camera) |
| Storage Temperature | Lower limit: -30 deg. C (Environmental temperature) / Upper limit: +70 deg. C (Environmental temperature) |
| Image Sensor | |
| Image Sensor | SONY IMX267 |
| Shutter Type | Global Shutter |
| Optical Size | 1" |
| Cell Size | 3.45 (H) x 3.45 (V) µm |
| Mechanical | |
| Dimensions | 35 (W) x 35 (H) x 41.5 (D) mm |
| Weight | Approximately 80 g |
| Lens Mount | C Mount |
| Optical Filter | No optical filter |
| Interface | |
| Connector | USB3.0 micro B x 1 |
| Power / Signal Connector | Power/IO: HR10A-7R-6PB (Hirose) or equivalent x 1 |
| Lens | HR10A-7R-6S (Hirose) or equivalent x 1 |
| Functions | |
| Scanning Mode | Full scanning / ROI |
| Operational Mode | Edge preset trigger / Pulse width trigger / Start stop trigger/ Free-run |
| Image Pixel Format | Mono8 / Mono10 / Mono12 / Mono10Packed / Mono12Packed |
| Exposure Time | 1.5 µseconds to 16,777 seconds |
| Analog Gain | 0 to 19.2 dB |
| Digital Gain | x1 to x2 |
| Gamma | 0.1 to 4.0 |
| Binning | N/A |
| Decimation | x2 horizontal and vertical individually / Off |
| Image Flip | Vertical flip / Horizontal flip / Vertical and horizontal flip / Off |
| Defective Pixel Correction | Up to 1,080 pixels |
| Save User Settings | Support (Eight settings) |
| White Balance | N/A |
| FFC (Flat Filed Correction) Function | N/A |
| Auto Control Function | Auto exposure / Auto gain |
| Chunk Function | Support |
| Event Function | Support |
| PTP Function (IEEE1588) | N/A |
