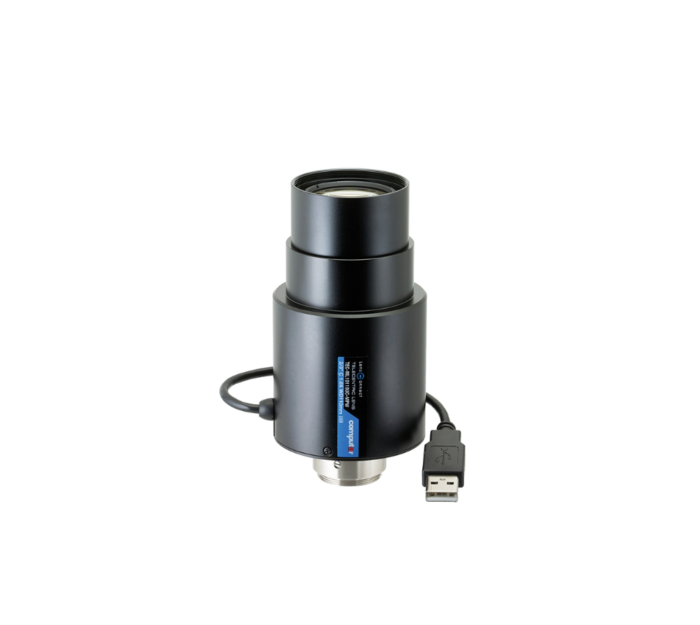

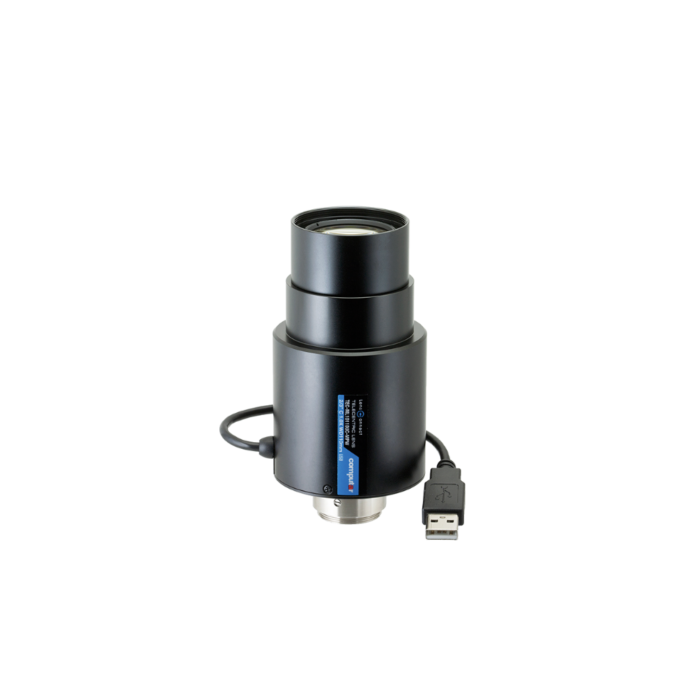

CBC-Computar TEC-ML10110UC-MPW 1.0X Motorized Telecentric Lens | 8MP, 2/3", F6.5, LensConnect, C-Mount

TEC-ML10110UC-MPW 1.0X Motorized Telecentric Lens Overview

The CBC-Computar TEC-ML10110UC-MPW is an 8MP, 2/3" motorized telecentric LensConnect lens engineered for precision machine vision, metrology, robotics, factory automation, and high-accuracy industrial inspection applications that require true-to-scale imaging and repeatable optical performance.

With 1.0X magnification and a consistent F6.5 aperture, the TEC-ML10110UC-MPW is ideal for close-range measurement and inspection tasks where object size, edge definition, dimensional accuracy, and low perspective error are critical. The 1X magnification ratio allows the lens to reproduce the subject at life-size scale on the image sensor, making it well suited for detailed component inspection, gauging, alignment, and metrology workflows.

As part of Computar’s focus-driven LensConnect Telecentric Lens Series, this model supports remote motorized focus control and power through USB, with I2C versions available for embedded vision and OEM system integration. This allows operators and automation systems to adjust focus without physically touching the lens, helping improve repeatability, reduce manual setup time, and simplify calibration in production inspection environments.

The TECML10110UCMPW maintains telecentricity even during focus adjustment and supports high-resolution sensors with pixel sizes down to 2.74 μm. Designed for demanding FA and machine vision environments, this lens is a strong choice for electronics inspection, semiconductor inspection, precision measurement, robotics alignment, medical device inspection, automated gauging, and quality control systems that depend on stable, repeatable imaging.

Key Features:

• 8MP motorized telecentric lens for precision machine vision applications
• 1.0X magnification for life-size imaging and detailed inspection
• Supports 2/3" image sensors
• Consistent F6.5 aperture across the LensConnect Telecentric Lens Series
• Industry’s first motorized telecentric lens series
• Remote motorized focus adjustment and power supply through USB
• I2C version available for embedded vision and OEM integration
• Maintains telecentricity during focus adjustment
• Ultra-high-resolution optical design compatible with 2.74 μm pixel size sensors
• C-mount design for compatibility with industrial machine vision cameras
• Supports custom magnification specifications for unique application requirements

Applications:

• Precision metrology and dimensional measurement
• Life-size machine vision inspection
• Factory automation and quality control
• Semiconductor and electronics inspection
• PCB and small component verification
• Robotics-guided inspection and alignment
• Medical device inspection
• Automated gauging and measurement systems
• AI vision systems requiring repeatable optical performance
