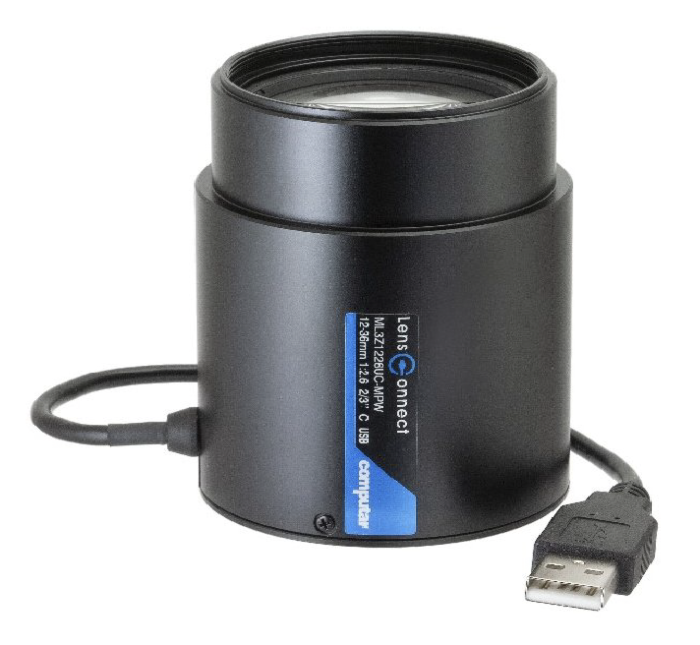

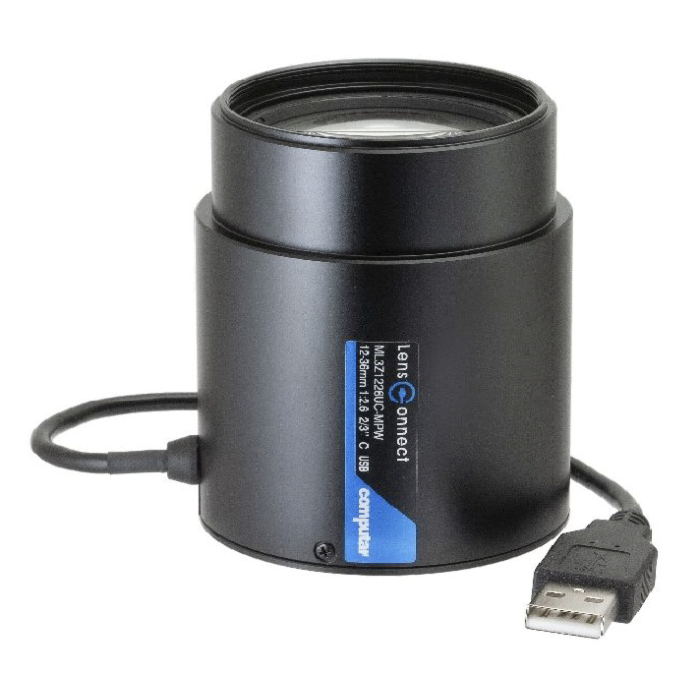

Computar ML3Z1226UC-MPW Motorized FA Lens 12-36mm F2.6, LensConnect (CS-Mount) Lens

Experience unmatched imaging precision with the Computar ML3Z1226UC-MPW Motorized FA Lens. Versatile and reliable, this lens delivers exceptional clarity for industrial and machine vision applications. Upgrade your imaging capabilities today and achieve superior results with Computar.
SKU
ML3Z1226UC-MPW

Discover Versatile Imaging Precision with the Computar ML3Z1226UC-MPW Motorized FA Lens

The Computar ML3Z1226UC-MPW Motorized FA Lens offers unparalleled versatility and precision for industrial and machine vision applications. With its focal length range of 12-36mm and fast F2.6 aperture, this lens is optimized for 2/3 type 9-megapixel cameras, delivering exceptional image quality and clarity across various imaging scenarios.

Equipped with motorized control and a convenient USB interface, this lens ensures seamless operation and integration with imaging systems. Its innovative LensConnect technology guarantees precise and reliable performance, allowing for consistent results in diverse industrial environments. The CS-Mount design enables easy installation and compatibility with a wide array of industrial cameras, enhancing flexibility and usability.

Furthermore, the option to add an ICR switcher inside the lens enhances its adaptability for day and night imaging applications, providing users with comprehensive imaging solutions for their specific needs. Whether used for industrial inspection, quality control, robotics, or surveillance, the Computar ML3Z1226UC-MPW Motorized FA Lens delivers exceptional performance and flexibility.

Key features include the ability to adjust the focal length to meet different field of view requirements, high-quality optics for superior imaging at close-up distances, and the flexibility of motorized control for remote adjustments. Upgrade your machine vision capabilities today with the Computar ML3Z1226UC-MPW Motorized FA Lens and experience imaging precision like never before.

Features:

  • Focal length range: 12-36mm
  • Fast F2.6 aperture
  • Motorized control
  • USB interface
  • LensConnect technology
  • CS-Mount design
  • High-quality optics
  • Option to add ICR switcher

Applications:

  • Industrial inspection
  • Quality control
  • Robotics
  • Surveillance
Model No. ML3Z1226UC-MPW
Focal Length 12-36mm
F-Number Wide: F2.6 - F16C
Tele:  F2.6 - F16C
Focus Operation Range Wide: 0.10m - Inf.
Tele: 0.35m - Inf.
Max. Optical Magnification Wide: 0.09x
Tele: 0.09x
Angle Of View Diagonal: 2/3 Type - 50.4°~16.9° - 1/1.8 Type -  42.0°~14.0° - 1/3 Type
Horizontal:  8.8mm x 6.6mm -  41.1°~13.7° -  7.2mm x 5.4mm - 33.9°~11.3° - 4.8mm x 3.6mm -  22.8°~7.6°
Vertical: (11.0mm diagonal) - 31.2°~10.4° - (9.0mm diagonal) - 25.6°~ 8.5° - (6.0mm diagonal) -  17.1°~5.7°
Effective Lens Aperture Front: φ11.8mm
Rear: φ12.9mm
Max. Image Circle φ11.8mm
Back Focal Length Wide: 16.4 mm (in Air)
Tele: 15.9 mm (in Air)
Distortion (2/3 Type) Wide: -2.6%
Tele: -3.1%
Control Interface USB2.0
Power Mode Bus power (5V:500mA)
Command Response Time < 2ms
Connector USB TypeA
Control Iris - Motorized
Focus - Motorized
Zoom - Motorized
Dimensions φ59.5mm x 76.3mm
Mount C-Mount
Weight 247g
Filter Thread M49 x P0.75mm
IRCF switcher -
Tripod Screw -
