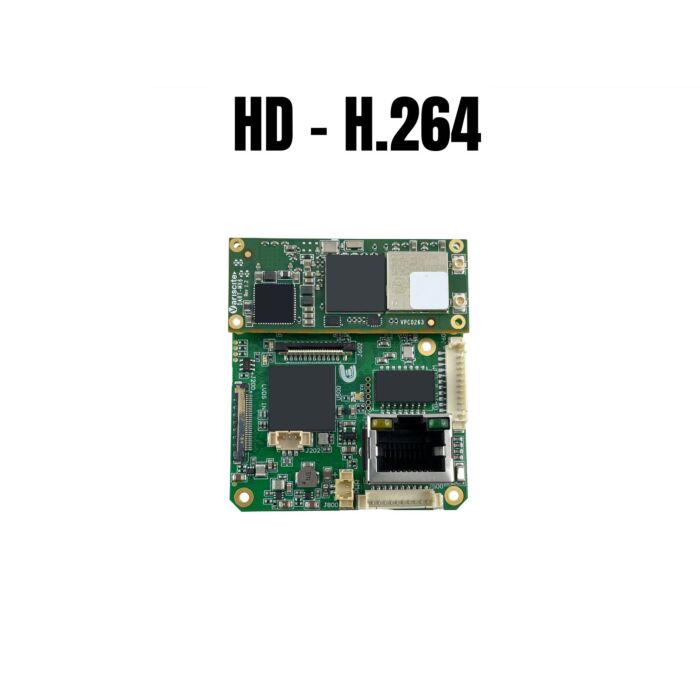

Aegis H.264-RM-Neo Red Mamba Neo IP Video Streaming Module

Red Mamba Neo IP video encoding module has been specifically designed for compact embedded vision systems.
SKU
Aegis H.264-RM-Neo

Combined with a iMX Quad core Cortex A9 processor, this tiny and powerful module offers a h.264 hardware encoder and enables low latency video stream over Ethernet or WIFI.

Features:

  • i.MX Dual Core ARM Cortex™-A9
  • Low latency h.264 encoding
  • Video streaming over IP & Wi-Fi supporting several protocols: RTSP, RTP multicast, RTP MPEG2TS
  • Video inputs: LVDS, MIPI, add-on connector
  • Video output: HDMI 1.4 - up to 1080p60
  • Video format detection
  • Communication: RS485 or UART TTL
  • Record and snapshot available
  • Storage: local and micro-SD card slot
  • Embedded Linux
  • Setup and update via custom Website
  • ONVIF Profile S compliant
Video Encoding / Decoding
h.264 Baseline Profile – up to 1080p30
h.264 Baseline, Main, High Profile – Up to 1080p60
Streaming RTSP stream (128 to 20000 Kbit/s) – RTP multicast – RTP MPEG2TS
LVDS x1
MIPI x1
ADD-ON  x1
HDMI x1 - 1.4a (1920 x 1080)
Ethernet 10/100 Mbit/s Ethernet (Remote RJ45)
Wi-Fi 802.11 a/b/g/n + MIMO
RS485 up to 1 - VISCA/PELCO protocol
UART up to 2
GPIO's up to 8
SD Card Slot x1
CPU Name/Type NXP/ freescale i.MX6 Dual core ARM® CortexTM-A9 Core
CPU frequency (Max) 800MHz
LPDDR2 RAM up to 1GB
eMMC NAND Flash (8bit) Up to 64GB eMMC storage
Linux Yocto, Linux
Supply Voltage 6 to 12VDC
Digital I/O Voltage 3.3V
Operating / Storage Temperature Operating: 0°C to 60°C / Storage: -20°C to 60°C
Dimension 50 mm x 57 mm x 15 mm (Remote RJ45 connector)
