Z3 Technology ZCube-60 Compact HDMI 4Kp60 Encoder

Z3 Technology Q605-60H Single Camera 4Kp60 Encoder

Stream video from the Sony FCB-ER9500 flawlessly in 4Kp60 with the Z3 Technology Q605-60H Encoder. Perfect for industrial vision needs. Upgrade now!
SKU
Q605-60H

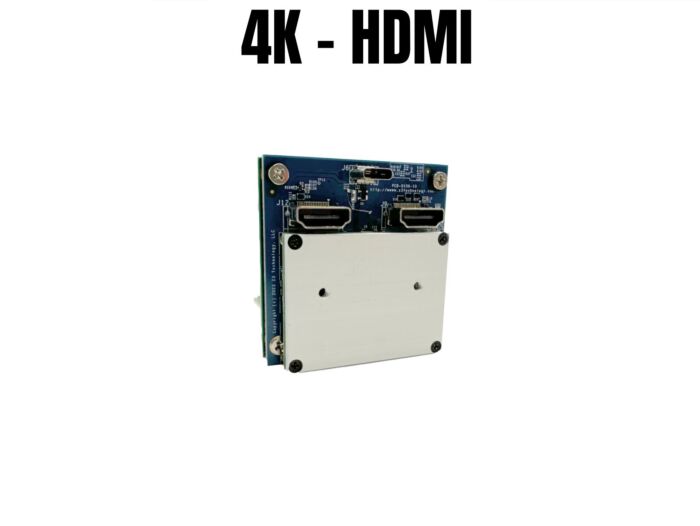

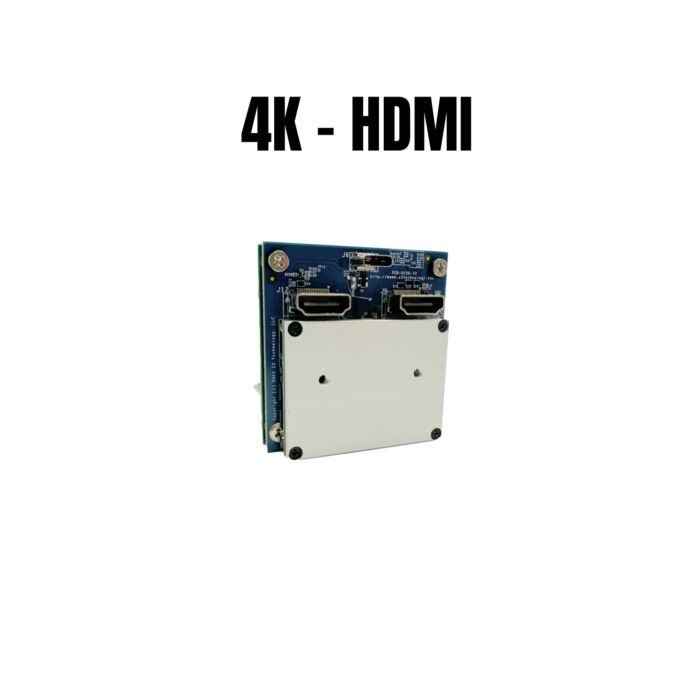

Z3 Technology Q605-60H Single Camera 4Kp60 Encoder

The Z3 Technology Q605-60H Single Camera 4Kp60 Encoder is a compact yet powerful solution designed for industrial and machine vision applications. Its H.265/HEVC and H.264 video encoding capabilities ensure high-quality video streaming with efficient bandwidth usage. With support for resolutions up to 4Kp60, this encoder delivers crisp and detailed imagery essential for precision tasks in industries like aerospace, medical, and robotics.

Featuring HDMI input and pass-through, the Q605-60H seamlessly integrates with existing camera setups. Its low latency encoding ensures real-time monitoring, vital for applications such as inspection and surveillance. The encoder supports various control methods, including web user interface, Serial/SSH, API, and ONVIF, providing flexibility in operation.

This encoder enables simultaneous streaming and recording, with the option to save video to Network File Systems, USB, or Micro SD cards. Additionally, it supports overlays and metadata embedding, enhancing data analysis capabilities. Compact and portable, the Q605-60H is ideal for deployments requiring flexibility and mobility.

Features:

  • Supports H.265/H.264 video encoding
  • Resolutions up to 4Kp60
  • Low latency encoding for real-time monitoring
  • HDMI input and pass-through
  • Control via web UI, Serial/SSH, API, or ONVIF
  • Simultaneous streaming and recording capabilities
  • Made specifically for Sony FCB-ER9500

Applications:

  • Aerospace
  • Medical imaging
  • Robotics
  • Inspection systems
  • Surveillance
  • Security systems
Cameras HDMI
Codecs H.264
H.265
MJPEG
Resolutions Up to 4Kp60
Controls Web User Interface, HTTP/S API, Serial/SSH, ONVIF or Video Management System
Compliance ONVIF Profile S and T, FCC and CE, NDAA and TAA
Applications
  • Aerospace
  • Broadcast
  • Inspection
  • Medical
  • Robotics
  • Security
  • Surveillance
  • Unmanned Systems: UAV, UGV and USV

*Made specifically for Sony FCB-ER9500
