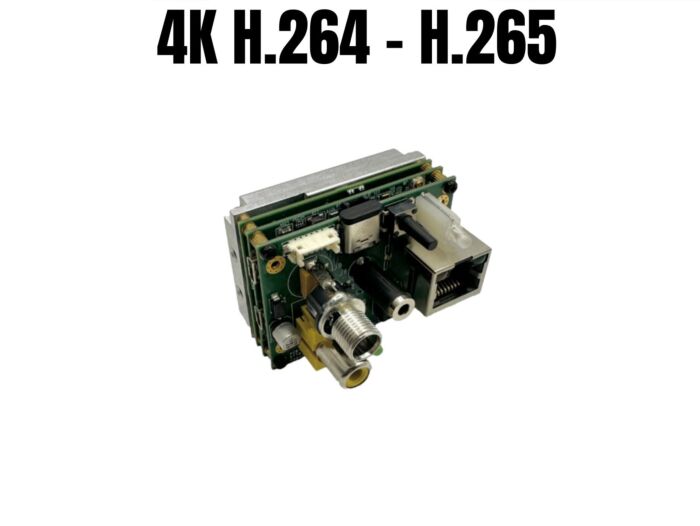

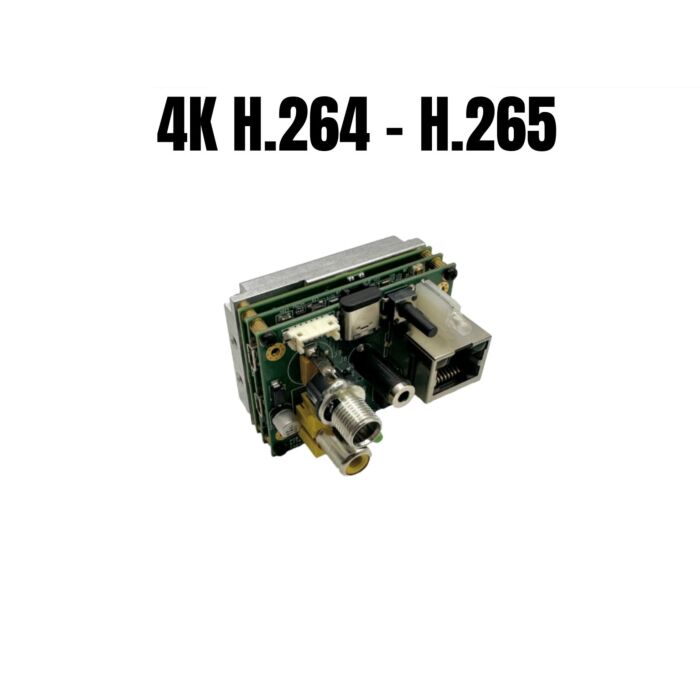

Z3 Technology Q603-10 Compact 4K or LVDS Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
The Z3 Technology Q603-10 Compact 4K/LVDS Encoder, Made in the USA and NDAA compliant, delivers high-performance 4K video encoding for Sony FCB-ER9500 and FCB-ER8530 4K block cameras. Designed for industrial and machine vision applications, it features Gigabit Ethernet connectivity and live video preview for seamless system integration.
*Q603-10w Also available with RF Shield on the encoder for WiFi Support
Aegis Electronic Group, Inc. proudly offers the Z3 Technology Q603-10 4K H.264/H.265 Video Encoder, expertly designed and manufactured in the USA for seamless integration with Sony FCB-ER9500 and FCB-ER8530 4K block cameras. This Made in America encoder board provides exceptional video processing performance for machine vision, industrial, aerospace, medical, robotics, and defense applications requiring reliable, high-quality 4K video streaming and recording.
The Q60310 compact video encoder features a robust connector board with Gigabit Ethernet connectivity, offering full-size connectors for simple system integration. It supports multiple camera inputs, including LVDS, HDMI via KEL, Micro-HDMI, composite NTSC/PAL, and RS-170, delivering flexibility for diverse imaging environments.
Features:
- Compact 4K/LVDS encoder
- Gigabit Ethernet connection
- Full-size connectors
- HTTP/HTTPS Web GUI with live video preview
- Simultaneous stream and record
- RTSP authentication
- Timestamp overlay support
- NMEA and GPS data overlay
- Pelco D PTZ and ONVIF support
- WiFi 802.11am dual band
Applications:
- Aerospace inspection
- Medical imaging
- Robotics control
- Security and surveillance
- Unmanned systems (UAV, UGV, USV)
- Thermal imaging
- Industrial inspection
- Machine vision systems
| Visible Compatible Cameras | Sony FCB-ER9500, FCB-ER8530 |
| Thermal Compatible Cameras | Flir Boson® Tau2® DRS Tenum®, Tamarisk® and Composite |
| Video Codecs | H.265, H.264, MJPEG encode |
| Audio Intefaces | Embedded from HDMI |
| Audio Codecs | HE-AAC, HEv2-AAC, AAC-LC |
| Interfaces | LVDS via KEL, HDMI via KEL, Micro HDMI input Composite Input via u.FL or RCA, HDMI Output, RS-232, RS-485 |
| Output Formats | RTSP, UDP, RTP, TSRTP, RTMP, RTMPS, MP4, TS-File |
| Features | • Easy-to-Use HTTPs Web Gui with live video preview • Send VISCA and IR Camera Controls over IP with Web Gui or HTTPS API • Simultaneous Streaming and Recording to NFS or MicroSD Card • ONVIF® Profile S and T Compliant • Embedded KLV Metadata Support Via Serial, MISB 0601 Compliant • High Precision Timestamps Across Multiple Streams, MISB 0604 Compliant • Multiline text Overlay via the Web Gui or the API • Logo or Image overlay via the API • NMEA GPS Overlay • Region of Interest: Configurable Field of View • Pelco D PTZ Position and ONVIF • Absolute PTZ Support and PTZ Tours • WiFi 802.11am dual band 4.33 Mbps with Q603-10W • Configurable Ethernet Speed 1000 Mbps and 100 Mbps |
| Encoder Size | 50 x 40 x 38 mm |
| Encoder Weight | 43g (heat pipe is an additional 38g) |
| Power Supply Options | 12V DC |
| Power Consumption | 5.5W typical |
