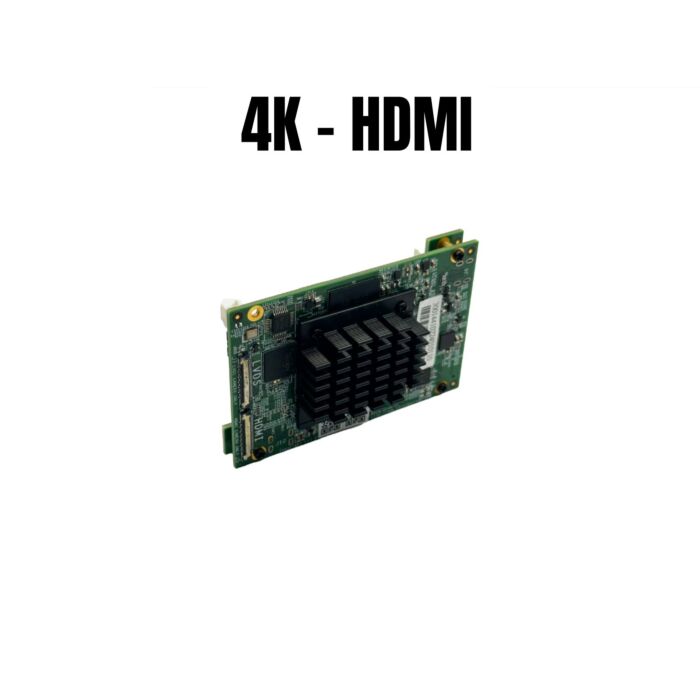

Z3 Technology FV4K-15A 4K HDMI & Thermal Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

The Z3 Technology FV4K-15A 4K HDMI & Thermal Encoder, made in the USA, pairs seamlessly with Sony FCB-ER9500 and FCB-ER8530 4K block cameras for industrial and machine vision applications. This NDAA compliant, lightweight encoder includes a connector board with 100Mb Ethernet, power, and serial ports, plus an HTTP/HTTPS Web GUI for live previews, VISCA™/IR control over IP, and simultaneous streaming/recording up to 4Kp30 (H.264/H.265/MJPEG).

Key features include Picture-In-Picture, Dual Display Mode, KLV metadata, and GPS/NTP timestamp overlays via SEI—perfect for low-latency UAV, UGV, surveillance, and defense video. Fully compliant with ONVIF Profile S/T, FCC, CE, NDAA, and TAA, it ensures reliability in demanding environments.

Features:

• Lightweight, low-profile design
• 100 megabit Ethernet, power, and serial connections
• HTTP/HTTPS Web GUI with live video preview
• Pass VISCA™ and IR camera control commands over IP
• Simultaneous stream and record
• GPS or NTP data overlay with timestamp via SEI
• Picture-In-Picture or Dual Display Mode
• Embedded KLV metadata support
• AI-ready video encoder
• Supports 4Kp30 and 1080p60 resolutions
• Compatible with multiple cameras and codecs
• ONVIF Profile S and T compliant

Applications:

• Aerospace video solutions
• Defense and surveillance systems
• Healthcare imaging
• Industrial inspection and monitoring
• Robotics and automation
• Unmanned aerial, ground, and surface vehicles (UAV, UGV, USV)
• Inaccessible surveillance mounts
