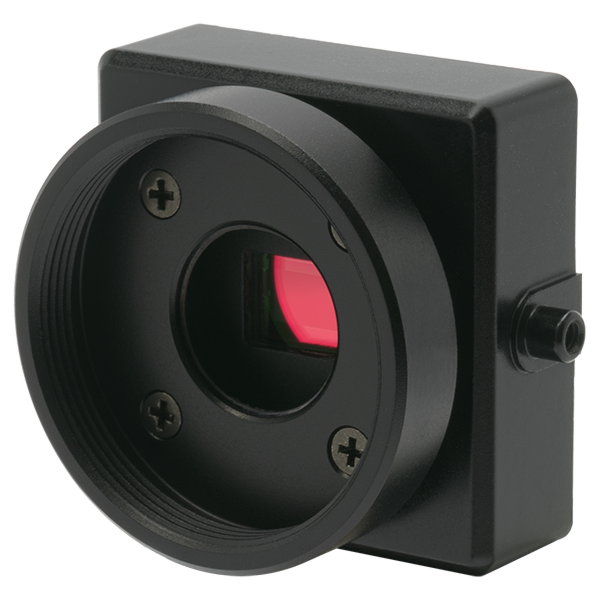

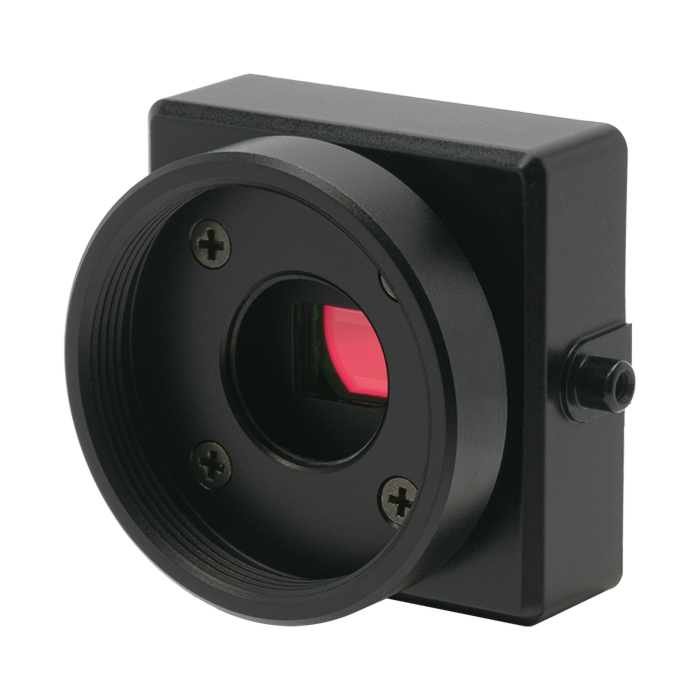

Watec WAT-1300 G3.6 Ultra-Compact HD-SDI 2.1 Megapixel Camera
30mm square @ 35g with 2.1 Megapixel HD-SDI, Double shutter & Digital WDR selectable. Privacy mask. Various M12 lens options available.
$663.00
Please call for pricing
SKU
WAT-1300 G3.6
The Watec WAT-1300 G3.6 is an Ultra-compact, lightweight, and low-voltage camera design ideal for embedded applications.
Features:
- HD-SDI 720/60p and 50p output formats enable smooth video recording with minimal delay
- Low power consumption and low heat generation by using a 1 megapixel sensor
- High sensitivity enables clear images even in low-light environments
- Despite its small size, the camera is equipped with a day/night function by using a dual-pass filter
- Various optional M12 lenses available *Std. lens: G3.6
- Advanced setting available by OSD (On Screen Display) through an optional remote controller
| Image Sensor | 1/2.8” 2M STARVIS2 |
| Number of effective pixels | 1280(H) × 720(V) |
| Unit cell size | 3.5μm(H) × 3.5μm(V) |
| Imaging system | RGB primary color bayer arrangement mosaic filters on chip |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Video outputs | HD-SDI |
| Output format | 720/60p, 720/50p* |
| Resolution (H) | More than 650 (Center) |
| Minimum illumination | 0.006 lx F2.0 (AGC ON=54dB, Shutter=OFF) |
| S/N | More than 50dB (AGC OFF=0dB, γ=1.0) |
| Function settings | OSD︓Remote controller |
| AE mode | Fixed: 1/60 (1/50), 1/100, 1/120, 1/125, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/20000, 1/50000, 1/100000 sec. EI: 1/60 (1/50) - 1/100000 sec. |
| White balance | ATW, AWB, PWB, MWB, USER1, USER2 |
| AGC | ON: 0 - 54dB OFF: 0dB |
| MGC | 0 - 54dB (6dB step) |
| Day/Night | ICR mechaless Day/Night |
| Gamma characteristics | γ≒0.45 |
| Noise reduction | 2DNR OFF/ON Level adjustable |
| Wide dynamic range | WDR OFF/ON Level adjustable, D-WDR OFF/ON Level adjustable |
| Lens iris | - |
| Back light compensation | BLC, HSBLC |
| White blemish correction | - |
| Sharpness | Level adjustable |
| Defog | OFF/ON Level adjustable |
| Digital zoom | - |
| Privacy mask | 16 masks |
| Mirror image | OFF, V-FLIP, H-FLIP, HV-FLIP |
| Freeze | - |
| Motion detection | - |
| Neg. image | - |
| Interface | MCX connector (75Ω), 2P connector (Power in), Remote controller (RC-01) |
| Power supply | DC+5V - 12V |
| Power consumption | 0.9W/180mA (DC+5V), 0.9W/75mA (DC+12V) |
| Operating / Storage Temperature | -10 - +50℃ / -30 - +70℃ |
| Operating / Storage Humidity | 95% RH or less (Without condensation) |
| Lens mount | M12 P=0.5 |
| Standard lens | M3620BC-12 (f3.6 F2.0) |
| Weight | Approx. 35g |
| Accessories | 2P cable, MCX-BNC cable |
