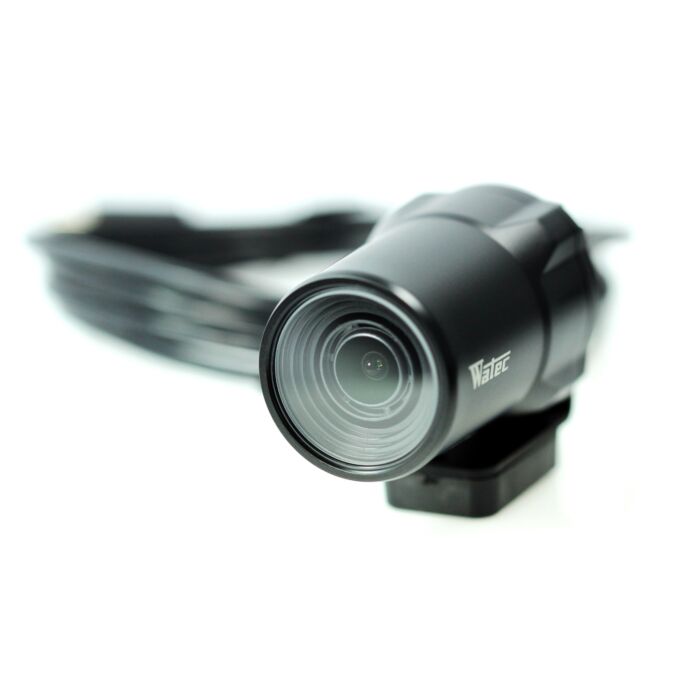

Watec WAT-06U2D 1/2.8" USB2.0 Full HD Wearable Color Camera
Discover the Versatility of the Watec WAT-06U2D Camera
The Watec WAT-06U2D stands out as an innovative USB2.0 Full HD Wearable Color Camera, meticulously crafted for diverse industrial, medical, and scientific applications. Its robust design incorporates water resistance, making it suitable for outdoor use, meeting IPX7 compliance standards. Equipped with a 1/2.8-inch CMOS image sensor, it excels in semi-low light environments while effortlessly producing HD images in well-lit scenarios. The camera's adaptability and versatility make it a valuable asset in medical imaging experiments, scientific research, and industrial applications.
Featuring a compact and fully sealed design, this camera is ideal for wearable or mountable configurations, ensuring ease of use in various environments. The USB connection simplifies integration, requiring only a +5V power supply, making it incredibly convenient for setup and operation. With support for full-color HD video and multiple resolution formats, including 1920x1080 and 1280x720, it delivers exceptional image clarity and detail. Its ultra-low light capabilities, with a minimum illumination of 0.3 lx F2.0, further enhance its performance in challenging lighting conditions.
Features:
- Full HD resolution
- Waterproof and water-resistant (IPX7)
- Ultra-low light performance
- Compact and wearable design
- USB 2.0 connectivity
Applications:
- Remote monitoring
- Surveillance
- Quality control
- Inspection
- Robotics
| Sensor type | 1/2.8 inch CMOS image sensor |
| Number of effective pixels | 1945(H) × 1097(V) |
| Unit cell size | 2.9μm(H) × 2.9μm(V) |
| Imaging System | RGB primary color bayer arrangement mosaic filters on chip |
| Synchronizing system | Internal |
| Scanning system | Progressive |
| Output Size | 1920x1080, 1280x720, 640x480, 320x240 |
| Max. Frame Rate | 30 fps |
| Video Compression | MJPG, YUY2 |
| Video Output | USB Video Class (Compatible) |
| Resolution | More than 900TVL (Center) |
| Minimum illumination | 0.3 Ix F2.0 (AGC ON=36dB, Shutter=OFF) 0.007 Ix F2.0 (AGC ON=36dB, Shutter=l/7.5 sec.) |
| S/N | - |
| Function Settings | Camera Viewer |
| AE Mode | Fixed - 1/15, 1/7.5, 1/4 sec. Fixed -1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 sec. EI - 1/30 - 1/8000 sec. EI - 1/7. 5 - 1/8000 sec. |
| White Balance | ATW, MWB |
| AGC | ON - 0 - 36dB OFF - |
| MGC | 0 - 72dB (1dB step) |
| Gamma Characteristics | γ≒USER (Level Adjustable) |
| Noise Reduction | - |
| Wide Dynamic Range | - |
| Lens Iris | - |
| Back Light Compensation | BLC |
| White Blemish Correction | - |
| Sharpness | Level Adjustable |
| Defog | - |
| Digital Zoom | x1, x1.38, x2.25 *1 / x1, x1.2, x1.5 *2 |
| Privacy Mask | - |
| Mirror Image | - |
| Freeze | - |
| Motion Detection | - |
| Neg. Image | - |
| Interface | USB (High speed) |
| Power Supply | USB +5V |
| Power Consumption | 0.65W (130mA) |
| Operating Temperature | -10℃ ～ +50℃ |
| Storage Temperature | -30℃ ～ +70℃ |
| Operating/Storage Humidity | 95% RH or less (Without condensation) |
| Standard lens | M3620BC-12 (f3.6 F2.0) |
| Cable Length | 1.2m (Max 3.0m) |
| Weight | Approx. 85g |
| Accessories | - |
| Recommended System Specifications | CPU - Intel® Core TM i Series RAM - 2GB or larger Others - USB2.0 Port, 1920×1080 or better resolution display |
| Operation Confirmed OS | Windows 10 32bit/64bit, Android 4.0 or newer |
