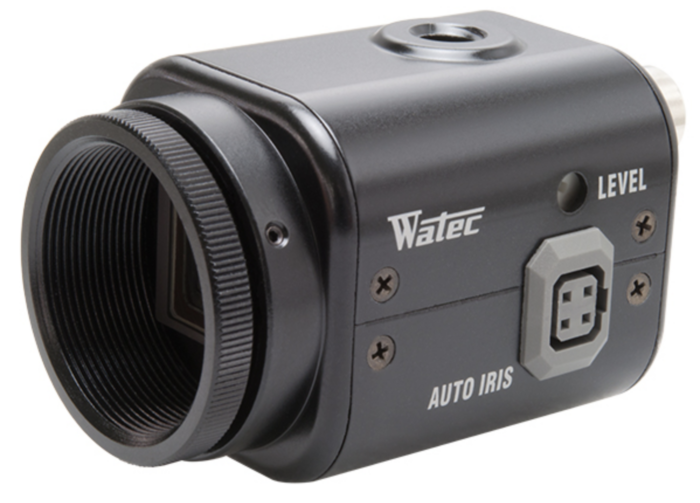

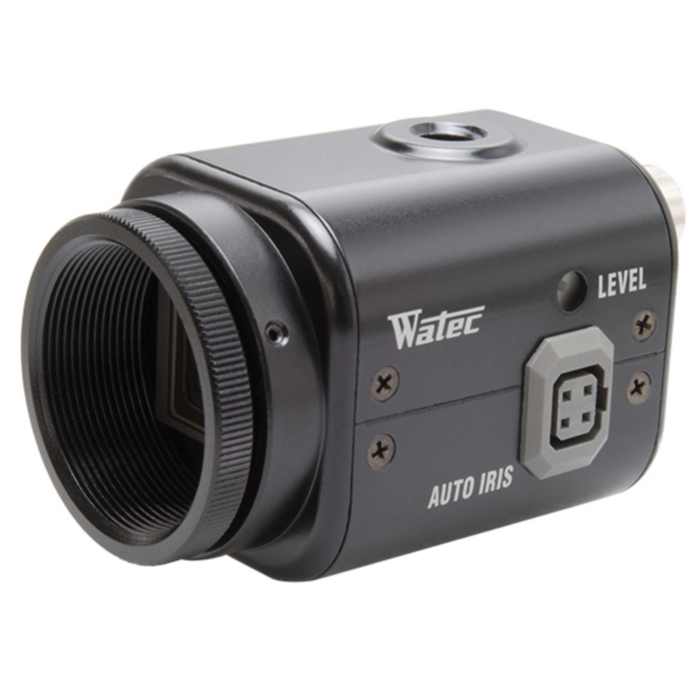

Watec WAT-3500 1/2.8” Ultra Low-Light Rolling Shutter Monochrome Camera
*Please note tariff fee is included in price*
Ultra low-light performance, analog HD output, and flexible control make the Watec WAT-3500 the next-generation replacement for the 910HX series—ideal for industrial, machine vision, and security imaging.The Watec WAT-3500 is a precision-engineered monochrome camera built for high-performance industrial imaging and machine vision applications. Featuring a 1/2.8-inch rolling shutter CMOS sensor and analog HD output, this model delivers outstanding clarity and reliability in ultra-low light conditions down to 0.000007 lx (B&W). Designed as a direct drop-in replacement for the 910HX series, the WAT-3500 ensures complete backward compatibility with existing setups for seamless integration.
Outfitted with on-screen display (OSD) control via the RC-01 remote, adjustable gamma and noise reduction levels, and digital WDR, the WAT3500 provides users with fine control over image tuning. Built with an advanced low-noise circuit and robust CS-mount design, it’s ideal for precision surveillance, inspection, and security imaging environments where detail and consistency are critical.
Features:
- 1/2.8" CMOS rolling shutter sensor
- Super low-light sensitivity: 0.0001 lx (color) / 0.000007 lx (B&W)
- Analog HD video output (BNC)
- Fully adjustable OSD control via RC-01
- Digital WDR and 3D/2D noise reduction
- Direct drop-in replacement for 910HX series
- DC Auto Iris lens support
- Compact and durable CS mount design
Applications:
- Industrial Imaging
- Machine Vision
- Security Systems
- Surveillance Monitoring
| Sensor type | 1/2.8 inch CMOS image sensor |
| Number of effective pixels | 1945(H) x 1097(V) |
| Unit cell size | 2.9µm(H) x 2.9µm(V) |
| Video Output | Composite video: 1.0 V(p-p) 75Ω (Unbalanced) |
| Resolution | More than 540TVL (Center) |
| Minimum illumination | 0.0001 Lx Fl.4 (AGC HIGH=72dB, Shutter=OFF) 0.000007 Fl.4 (AGC HIGH=72dB, Shutter=xlS) |
| S/N | More than 52dB (AGC OFF=0dB, γ=1.0) |
| Function Settings | OSD : Remote Controller |
| AE Mode | Fixed - x2, x3, x4, xS, x61 x7, xS, x9, xlO, x12, x15 (frame) 1/30, 1/60, 1/120, 1/180, 1/240, 1/300 (sec.) ※1 -- 1/25, 1/50, 1/100, 1/150, 1/200, 1/250 (sec.)※2 -- 1/500, 1/1000, 1/2000, 1/5000, 1/10000 (sec.) EI - 1/30 - 1/10000 (sec.)※1 -- 1/25 - 1/10000 (sec.)※2 x15 - 1/10000 (sec.) |
| AGC | ON - 0 - 72dB OFF - 0 dB |
| MGC | 0 - 72dB (5dB step) |
| Gamma Characteristics | γ≒USER (Level Adjustable) |
| Noise Reduction | 3DNR OFF/ON, 2DNR OFF/ON, 3D+2DNR ON (Level adjustable) |
| Wide Dynamic Range | D-WDR (Digital Wide Dynamic Range) OFF/ON, WDR OFF/ON (Level adjustable) |
| Lens Iris | DC |
| Back Light Compensation | BLC, HSBLC |
| White Blemish Correction | Up to 2046 pixels |
| Sharpness | OFF/ON Level adjustable |
| Defog | OFF/ON Level adjustable |
| Digital Zoom | ZOOM (x1.01 - x6.00), PAN/TILT |
| Privacy Mask | 8 masks |
| Mirror Image | OFF, V-FLIP, H-FLIP, HV-FLIP |
| Freeze | OFF/ON |
| Motion Detection | OFF/ON 4 areas |
| Neg. Image | OFF/ON |
| Interface | BNC (composite video), Power in, Remote control (RC-01), AUTO IRIS |
| Power Supply | DC+12V ±10% |
| Power Consumption | 1.98W (165mA) |
| Operating Temperature | -10℃ ～ +50℃ |
| Storage Temperature | -30℃ ～ +70℃ |
| Operating/Storage Humidity | 95% RH or less (Without condensation) |
| Lens Mount | CS mount (Back Focus Adjustable) |
| Weight | - |
