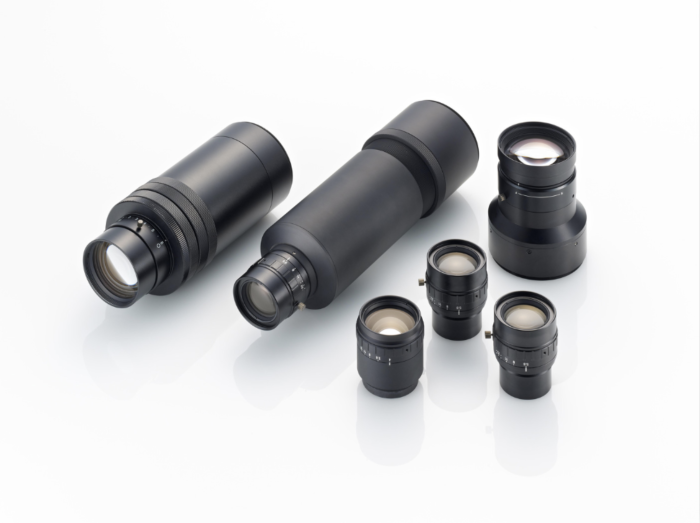

VS Technology VS-L12056-05/V 8K, 12K & 16K Line Scan Macro Lenses
High-Resolution Line Scan Macro Lenses for Industrial Vision
Aegis Electronic Group Inc. proudly presents the VS Technology VS-L12056-05/V series, tailored for demanding industrial and machine vision applications. These line scan macro lenses are engineered to deliver exceptional performance with high resolution and contrast, ideal for inspecting large sensors up to 90mm in length. Featuring integrated vibration resistance and a versatile selection of mount adapters including M42, TFL, M58, and more, these lenses ensure compatibility across various setups. The lenses offer distortion-free imaging, crucial for precise inspection tasks in industrial automation.
Industries requiring detailed, distortionless imaging will benefit significantly from these lenses, which support resolutions ranging from 8K to 16K. Whether it's for quality control in manufacturing, surface inspection in printing, or precise imaging in pharmaceuticals, the VS-L12056-05/V series guarantees reliability and accuracy. Each lens is crafted to enhance productivity and efficiency in machine vision systems, making them a vital component for businesses striving for excellence in optical inspection.
Features:
- Designed for large sensors up to 90mm
- High resolution and high contrast
- Vibration-resistant design
- Distortion-free optics
- Versatile mount adapters (M42, TFL, M58, and more)
Applications:
- Quality control in manufacturing
- Surface inspection in printing
- Pharmaceutical imaging
| Focal Length (f) | 120 mm | ||
| Optical Mag. | x 0.375 x 0.5 x 0.625 | ||
| WD | 417.2 mm 335.2 mm 285.9 mm | ||
| O/I (Object & Imager distance) | 604.4 mm 537.8 mm 503.9 mm | ||
| Aperture | F 5.6 ～ 32 | ||
| Working F/# *Value at Iris open | 7.7 8.4 9.1 | ||
| NA | 0.024 0.030 0.034 | ||
| DOF at PCoC φ0.04mm | 4.4 mm 2.7 mm 1.9 mm | ||
| Optical Distortion (Y=43.2) | 0.01 % | ||
| Relative Illuminance (Y=43.2) | 60 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | V-Mount | ||
| Flange Back | 153.7 mm 169.1 mm 184.5 mm | ||
| Image Circle | φ 90 mm | ||
| Filter Thread | M 40.5 P= 0.5 | ||
| Weight (approx.) | 160 g | ||
| Dimension | Ø 45 (max.) x L = 33.5 mm | ||
