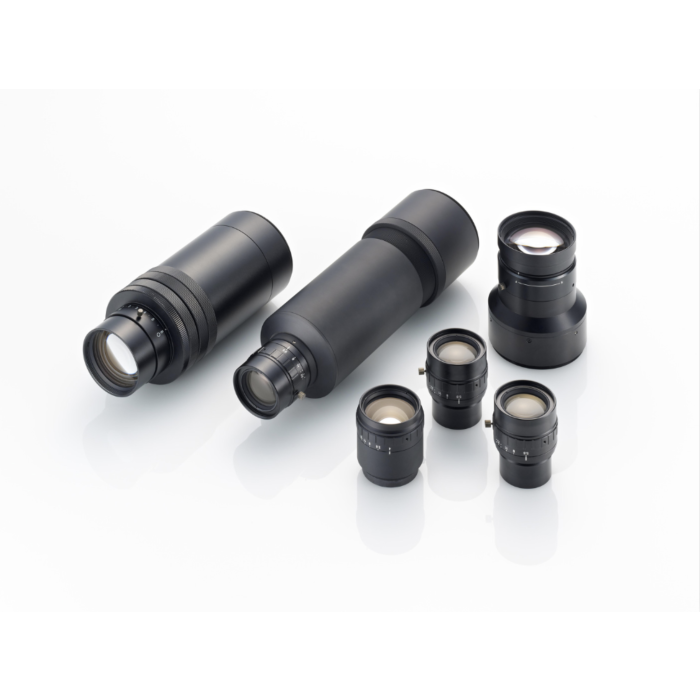

VS Technology VS-L12056-075/V 8K, 12K & 16K Line Scan Macro Lenses
Superior Line Scan Macro Lenses for Precision Machine Vision Applications
Aegis Electronic Group Inc. proudly offers the VS Technology VS-L12056-075/V line scan macro lenses, featuring 8K, 12K, and 16K resolution capabilities. These lenses are meticulously crafted for machine vision and industrial applications, supporting large sensors up to 90mm. Designed for optimal performance, the VS-L(V) series integrates vibration resistance and boasts a high contrast output, making it a premier choice for line scan imaging.
The lenses come with versatile mount adapters, including M42, TFL, and M58, ensuring compatibility with various setups. With a focal length of 120mm and working distance ranging from 284.9mm to 228.1mm, these lenses offer magnification from 0.625x to 0.875x. The working F-number ranges from 10.3 to 11.7, guaranteeing precise and clear imaging.
Industries benefiting from these high-resolution lenses include semiconductor inspection, printed circuit board examination, and high-speed surface inspection. The distortionless imaging and adaptability make them ideal for any application requiring precise line scan capabilities. Elevate your machine vision systems with the VS-L12056-075/V lenses and experience unparalleled performance and reliability.
Features:
- 8K, 12K, & 16K resolution
- Supports large sensors up to 90mm
- Integrated vibration resistance
- High contrast output
- Distortionless imaging
- Versatile mount adapters (M42, TFL, M58, and more)
- Magnification range: 0.625x to 0.875x
- Working F-number: 10.3 to 11.7
- Focal length: 120mm
Applications:
- Semiconductor inspection
- Printed circuit board examination
- High-speed surface inspection
- Precision line scan imaging
- Industrial quality control
- Automation and robotics
- Medical imaging devices
- Aerospace component inspection
- Automotive part manufacturing
| Focal Length (f) | 120 mm | ||
| Optical Mag. | x 0.625 x 0.75 x 0.875 | ||
| WD | 284.9 mm 249.7 mm 228.1 mm | ||
| O/I (Object & Imager distance) | 509.6 mm 489.9 mm 483.8 mm | ||
| Aperture | F 5.6 ～ 32 | ||
| Working F/# *Value at Iris open | 9.0 9.6 10.3 | ||
| NA | 0.035 0.039 0.042 | ||
| DOF at PCoC φ0.04mm | 1.8 mm 1.4 mm 1.1 mm | ||
| Optical Distortion (Y=43.2) | -0.02 % | ||
| Relative Illuminance (Y=43.2) | 63 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | V-Mount | ||
| Flange Back | 188.2 mm 203.7 mm 219.2 mm | ||
| Image Circle | φ 90 mm | ||
| Filter Thread | M 40.5 P= 0.5 | ||
| Weight (approx.) | 165 g | ||
| Dimension | Ø 45 (max.) x L = 36.5 mm | ||
