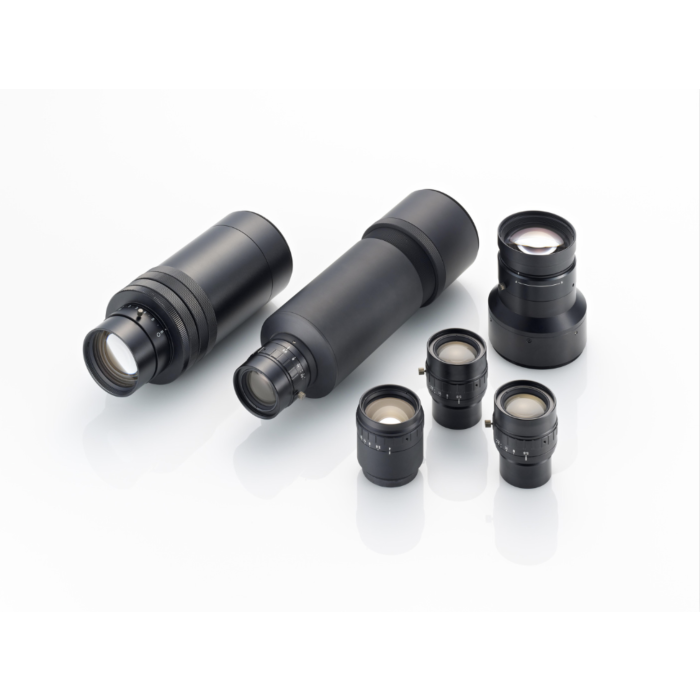

VS Technology VS-L12056-03/V 8K, 12K & 16K Line Scan Macro Lenses
Exceptional Line Scan Macro Lenses for Industrial Applications
VS Technology's VS-L12056-03/V line scan macro lenses, available through Aegis Electronic Group Inc., are designed to meet the demanding requirements of industrial and machine vision applications. These lenses support large sensors up to 90mm in length, providing high resolution and contrast for precise imaging. The VS-L(V) series is specifically crafted for 8K, 12K, and 16K line scan applications, making it an excellent choice for tasks requiring exceptional detail and accuracy. With integrated vibration resistance and a variety of mount adapters, including M42, TFL, and M58, these lenses offer versatility and reliability in diverse settings.
Industrial applications such as surface inspection, quality control, and materials analysis benefit greatly from the distortionless imaging and robust performance of the VS-L12056-03/V lenses. The lenses’ working distance of 633.4mm to 414.8mm and magnification range of 0.225x to 0.375x make them suitable for various imaging needs. Additionally, the working F-number range of 6.9 to 7.7 ensures optimal light management for clear, sharp images. Whether in a factory setting or a research environment, these lenses deliver consistent and superior results. Enhance your imaging capabilities with VS Technology's high-performance line scan macro lenses from Aegis Electronic Group Inc.
Features:
- High resolution and contrast
- Supports large sensors up to 90mm
- Integrated vibration resistance
- Variety of mount adapters available (M42, TFL, M58, and more)
- Working distance: 633.4mm to 414.8mm
- Magnification range: 0.225x to 0.375x
- Working F-number: 6.9 to 7.7
- Distortionless imaging
Applications:
- Surface inspection
- Quality control
- Materials analysis
- Factory automation
- Research environments
- Precision imaging tasks
- High-detail line scan applications
- Industrial imaging solutions
| Focal Length (f) | 120 mm | ||
| Optical Mag. | x 0.225 x 0.3 x 0.375 | ||
| WD | 633.4 mm 496.7 mm 414.8 mm | ||
| O/I (Object & Imager distance) | 803.2 mm 675.7 mm 603.0 mm | ||
| Aperture | F 5.6 ～ 32 | ||
| Working F/# *Value at Iris open | 6.9 7.3 7.7 | ||
| NA | 0.016 0.021 0.024 | ||
| DOF at PCoC φ0.04mm | 10.9 mm 6.5 mm 4.4 mm | ||
| Optical Distortion (Y=43.2) | -0.02 % | ||
| Relative Illuminance (Y=43.2) | 57 % | ||
| Operation | Manual (Lock Screw M2) | ||
| Wavelength | Visible | ||
| Mount | V-Mount | ||
| Flange Back | 133.8 mm 143.0 mm 152.5 mm | ||
| Image Circle | φ 90 mm | ||
| Filter Thread | M 40.5 P= 0.5 | ||
| Weight (approx.) | 170 g | ||
| Dimension | Ø 45 (max.) x L = 36 mm | ||
