VS Technology VS-1620HV 12MP 1.1" Fixed Focal Length Lens (Discontinued)
*Product is Discontinued, Replacement Option: VS-HVA1626
Elevate your industrial imaging capabilities with the VS-1620HV 12MP 1.1" Fixed Focal Length Lens. Designed for precision and versatility, this C-Mount lens is ideal for diverse machine vision applications. Explore high-resolution optics for superior imaging results.
VS-1620HV 12MP 1.1" Fixed Focal Length Lens
Unlock the potential of cutting-edge imaging with the VS-1620HV 12MP 1.1" Fixed Focal Length Lens from VS Technology, available through Aegis Electronic Group. This industrial-grade lens boasts a versatile design, offering three models with focal lengths of f8mm, f12mm, and f16mm to cater to diverse applications. With 1.1" format support and an impressive 3.45μm resolution, this lens ensures high-quality imaging for industrial and machine vision needs.
Featuring a C-Mount design, the VS-1620HV lens seamlessly integrates with various industrial camera setups, providing users with flexibility and ease of installation. Its precision optics guarantee sharp and detailed images in demanding environments. Whether applied in robotics, quality control, or automation processes, this lens delivers unparalleled performance.
Features:
- 1.1" format with 3.45μm resolution support

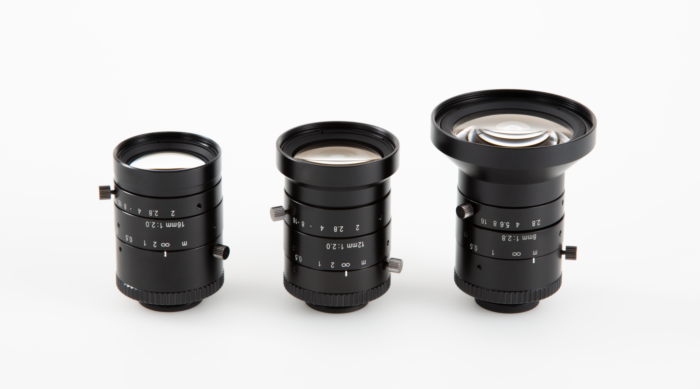

- Three models: f8mm, f12mm, f16mm
- Versatile C-Mount design
- Precision optics for sharp imaging
- Industrial-grade 12MP lens
Applications:
- Robotics
- Quality control
- Automation processes
- Machine vision systems
- Industrial imaging solutions
| Focal Length | 16mm |
| Maximum Aperture Ratio | 1:2.0 |
| Aperture | F 2.0 ~ 16 |
| Angle Of View (1.1") | 35.4° x 47.6° (Diagonal: 59.3°) |
| M.O.D | 100 mm |
| TV Distortion (1.1") | -1.31 % |
| Operation | Manual (Lock screw M2) |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526 mm |
| Sensor Size (max.) | 1.1" |
| Filter Thread | M 35.5 P= 0.5 |
| Weight (approx.) | 144 g |
| Dimension | Ø 38 (max.) x L = 50.5 mm |
