VS Technology VS-HVA1226 Front Angled View

VS Technology VS-HVA1226 1.1" 2.74μm support Compact Design Fixed Focal Length Lens

VS Technology VS-HVA2524 Front Angled View

VS Technology VS-HVA2524 1.1" 2.74μm support Compact Design Fixed Focal Length Lens

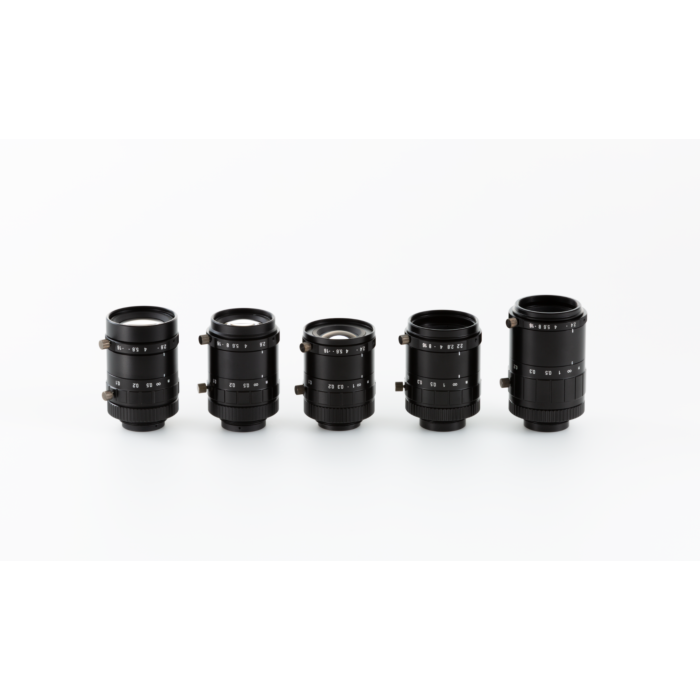

VS Technology VS-HVA1626 1.1" 2.74μm support Compact Design Fixed Focal Length Lens

Discover precision in industrial imaging with VS-HVA1626. This compact lens ensures optimal accuracy for machine vision applications. Elevate your imaging capabilities with Aegis Electronic Group.
SKU
VS-HVA1626

Unveiling Precision: VS-HVA1626 1.1" 2.74μm Compact Lens

Elevate your industrial imaging capabilities with the VS-HVA1626 1.1" sensor lens, a pinnacle of precision from VS Technology, exclusively available through Aegis Electronic Group. This cutting-edge lens is tailored for high-resolution applications, boasting compatibility with 2.74μm sensors. What sets it apart is the ability to capture accurate images with minimal distortion, ensuring unparalleled clarity even at the periphery of your visual field.

The VS-HVA1626 lens redefines compactness and weightlessness in industrial optics, presenting a revolutionary design that outperforms conventional models. Its micro lens technology guarantees optimal image accuracy, making it an indispensable tool for machine vision applications demanding the highest level of precision.

Unlock new dimensions of imaging performance as you delve into the VS-HVA1626's capabilities. Immerse yourself in a world where every detail matters, and where the compact meets the extraordinary. From robotics and automation to quality control in manufacturing, this lens is engineered to meet the demands of diverse industrial applications. Take the lead in your industry with Aegis Electronic Group, where innovation meets precision.


Features:

  • 1.1" sensor compatibility
  • High resolution (2.74μm)
  • Distortion-free imaging
  • Compact and lightweight design
  • Precision optics for accurate imaging


Applications:

  • Machine vision systems
  • Quality control in manufacturing
  • Robotics and automation
  • Inspection and measurement processes
  • Industrial imaging and surveillance
Focal Length 16mm
Maximum Aperture Ratio 1:2.6
Aperture F 2.6 ~ Close
Angle Of View (1.1") 35.1° x 46.8° (Diagonal: 56.3°)
M.O.D 100 mm
TV Distortion (1.1") 0.11 %
Operation Manual (Lock screw M2)
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 1.1"
Filter Thread M 30.5 P=0.5
Weight (approx.) 128 g
Dimension Ø 37.5 (max.) x L = 50 mm
