Videology DEV-801-IP-678-1HC0DC Development Kit for 801-IP-678 8MP 4K IP Camera

Videology DEV-801-IP-678-1HC0DC Development Kit for 801-IP-678 8MP 4K IP Camera

The Videology DEV-801-IP-678-1HC0DC Development Kit is designed to help engineers, developers, OEMs, and system integrators evaluate and develop with the Videology 801-IP-678 8 MP 4K IP camera. Built around the Sony IMX678 STARVIS 2 image sensor, this compact board-level IP camera platform delivers 3840 × 2160 resolution in a 38 × 38 mm form factor for embedded vision and industrial imaging applications.

This NDAA Compliant development kit includes the camera module, M12 lenses, Ethernet and power cabling, wall power adapter, SD card interface board, GPIO cable, and setup accessories needed to begin testing, prototyping, and integration. The 801-IP-678 camera supports API-based application development, digital pan tilt zoom, DHCP or static IP configuration, integrated Ethernet magnetics, microSD card support, and GPIO connectivity for compact system integration.

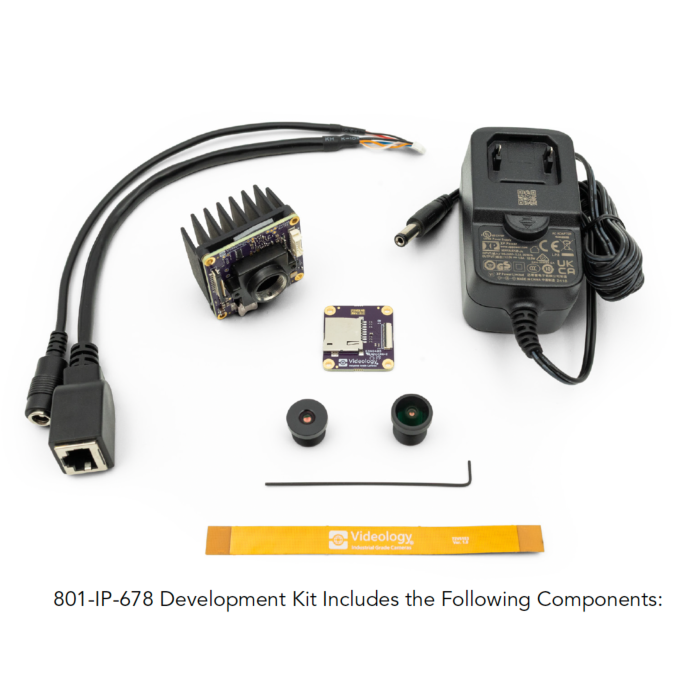

801 IP Camera Development Kit Includes:

• 8 MP IP Camera with Sony IMX678 sensor, low M12 lens mount, 10 mm mount with heatsink, color, no IR filter, direct current configuration — 801-IP-678-1HC0DC
• Connector Cable for Power and Ethernet — 60C5030
• 120 VAC to 12 VDC Wall Mount Multi Plug Adapter — 60C5031
• 3.5 mm M12 Lens — M12-035-F22-8-VS
• 5.5 mm M12 Lens — M12-055-F24-12-VS
• Lock Ring/Spring
• SD Card Interface Board — 72V5145 rev2
• SD Card Interface Board Cable — 72V5153
• GPIO Cable — 60C5045
• Allen Key

Key Features:

• Complete development kit for the Videology 801-IP-678 8 MP IP camera
• Sony IMX678 STARVIS 2 image sensor
• 8 MP / 4K resolution: 3840 × 2160
• Compact 38 × 38 mm board-level IP camera design
• Low M12 lens mount configuration with included M12 lenses
• Color camera with no IR filter
• API support for custom application development
• Digital pan tilt zoom support
• DHCP or static IP configuration
• Integrated Ethernet magnetics for compact IP camera integration
• microSD card support through included SD card interface hardware
• GPIO cable included for system-level control and integration
• Useful for embedded vision, machine vision, robotics, UAV/drone, surveillance, intelligent traffic, medical imaging, and inspection systems

Industrial Vision Applications:

• Embedded vision system development
• Robotics and autonomous system imaging
• UAV/drone camera integration
• Machine vision inspection
• AI vision and edge imaging platforms
• Intelligent traffic and transportation systems
• Security and surveillance imaging
• Medical and laboratory imaging systems
• OEM product development
• Industrial monitoring and inspection

Why Choose the DEV-801-IP-678-1HC0DC Development Kit?

The DEV801IP6781HC0DC gives development teams a practical starting point for evaluating the Videology 801-IP-678 IP camera platform before full system integration. With a Sony IMX678 STARVIS 2 sensor, 4K resolution, included M12 optics, Ethernet connectivity, GPIO access, and microSD interface support, this kit is well suited for engineers building compact IP camera systems for industrial, embedded, robotic, inspection, surveillance, and intelligent imaging applications.

Contact Aegis Electronic Group today to learn more about the Videology DEV-801-IP-678-1HC0DC Development Kit, request pricing, or discuss compatibility with your imaging application.
