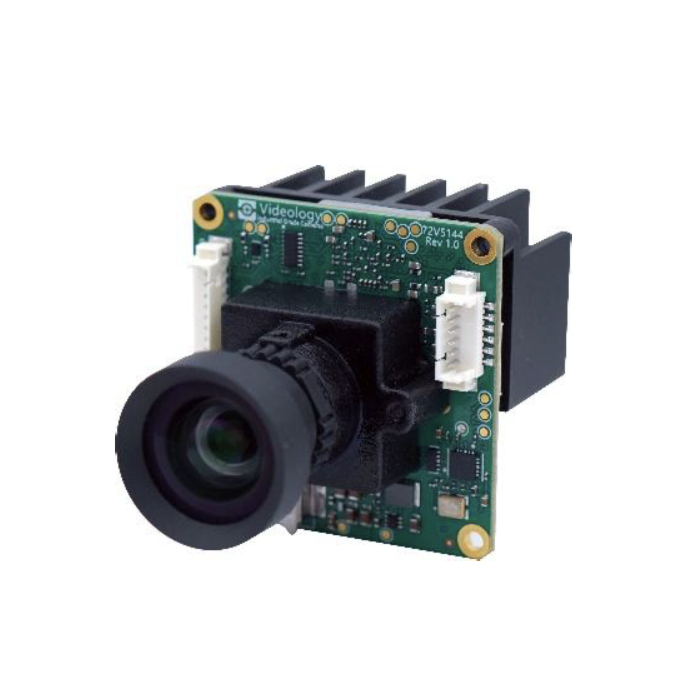

Videology 801-IP-678 4K IP Camera with Sony Starvis 2 Sensor, 3840x2160 8MP, RISC-V Embedded Linux, H.265/H.264/MJPEG, GPIO, Optional Autofocus, 1/1.8” Sensor, 2.0µm Pixels, 38mm x 38mm
The Videology 801-IP-678 is a compact, NDAA compliant board-level 4K IP camera engineered and manufactured in the USA for machine vision, industrial, and embedded applications. It features the Sony IMX678 Starvis 2 1/1.8” CMOS sensor with 2.0μm pixels and progressive shutter, delivering ultra-high-definition 3840x2160 video at up to 30fps. Multi-codec support includes H.265, H.264, and MJPEG, with up to three simultaneous streams and latency below 300ms.
The camera runs on a quad-core 64-bit RISC-V processor with embedded Linux, enabling API-based programming, configuration, and onboard application development. Network support includes DHCP or static IP addressing. Additional functionality includes optional autofocus, GPIO, RTC with battery backup, and microSD storage support.
Built for rugged environments, the 801-IP-678 operates from -30°C to 80°C and 25–90% non-condensing humidity. Ultra-low-light sensitivity reaches 0.05 lux for reliable day/night performance. NDAA, RoHS, and REACH compliance ensure industrial and government readiness. Optional M12 lenses (10mm or 16mm) expand optical flexibility, and power consumption is 2.7W typical at 12VDC (max 4.2W), compatible with DC input and future PoE options.
Features:
- Sony IMX678 Starvis 2 1/1.8” CMOS sensor
- 8MP resolution (3840x2160) up to 30 fps
- 1080p (1920x1080) up to 60 fps
- Progressive shutter, 2.0µm pixel size
- Multi-stream H.265 / H.264 / MJPEG encoding
- Quad-core RISC-V CPU with embedded Linux
- API support for programming and configuration
- Optional autofocus and M12 lens options (10mm, 16mm)
- GPIO support and RTC with battery backup
- Low-light sensitivity: 0.05 lux
- Latency < 300ms
- Operating temperature: -30°C to 80°C
- Power input 5–15VDC, 2.7W typical
- NDAA, RoHS, and REACH compliant
Applications:
- Machine vision and automated inspection
- Embedded imaging solutions
- Industrial monitoring and control systems
- Security and surveillance integration
- Robotics and automation
- Low-light imaging applications
- OEM and system integrator designs
| Image Sensor | Sony IMX678 Starvis 2, 1/1.8” CMOS |
|---|---|
| Resolution | 3840 x 2160 (8MP), 1920 x 1080 |
| Frame Rate | 2160p: 12.5 / 15 / 25 / 30 fps 1080p: 25 / 30 / 50 / 60 fps |
| Pixel Size | 2.0 µm x 2.0 µm |
| Shutter | Progressive, Auto/Manual |
| Codec Support | H.265 / H.264 / MJPEG, up to 3 streams |
| Processor | Quad-core 64-bit RISC-V, Embedded Linux |
| Latency | < 300 ms |
| Low-Light Sensitivity | 0.05 lux |
| Lens Mount | M12 mount (10mm or 16mm options) |
| Focus | Optional Autofocus |
| GPIO | Yes |
| RTC | Yes, with battery backup |
| MicroSD Storage | Optional |
| Input Voltage | 5–15 VDC |
| Power Consumption | 2.7 W (typical), 4.2 W (max) @ 12VDC |
| Operating Temperature | -30°C to 80°C (-22°F to 176°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 25%–90% RH (non-condensing) |
| Storage Humidity | < 75% RH |
| Dimensions (WxHxD) | 38 mm x 38 mm x 10 mm |
| Weight | 9.5 g |
| Compliance | NDAA, RoHS, REACH |
