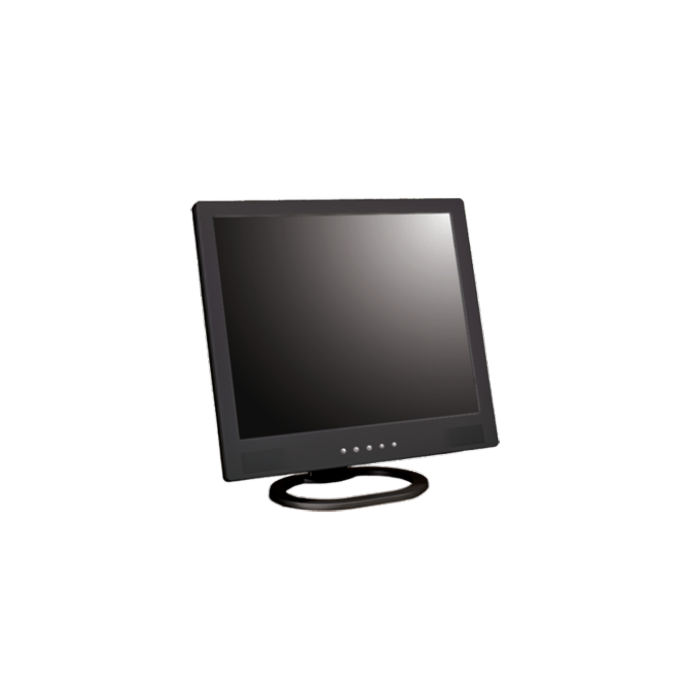

Tru-Vu VM-17C (VM17C) Customizable Industrial Monitors
*Product is discontinued, Replacement Option: VM-17U-36
Tru-Vu industrial LCD monitors are specifically designed for use in demanding industrial, commercial, medical and A/V applications.
SKU
VM-17C-TruVu
Tru-Vu monitors utilize industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.
The VM-17 Series monitors offer a variety of video inputs. All models are available in standard, open frame, rack mount, panel mount, NEMA/IP waterproof, and touch screen configurations. An extensive list of available OEM options enables you to customize a solution to your specific needs.
Features:
Applications:
|
VM-17C
|
|
| LCD Panel | 17” TFT Color LCD |
| Resolution | 1280 x 1024 (SXGA) |
| Viewing Area |
13.3” (W) x 10.64” (H)
|
| Pixel Pitch |
0.264mm x 0.264mm
|
| Display Colors |
16.7 Million
|
| Aspect Ratio |
5:4
|
| Brightness |
300 nits
|
| Contrast Ratio |
800:1
|
| Viewing Angle |
178° (H) x 178° (V)
|
| Response Time |
3 msec (gray to gray)
|
| Control |
OSD (On-Screen Display) via Front Panel Pushbuttons
|
| Video Inputs | VGA, DVI-D |
| Analog Video Outputs | ---- |
| Cortez Image Processing Board | Optional |
| Internal Speakers | Optional |
| Power Requirement | 12 V DC / 90-240VAC with included Power Brick |
| Power Consumption |
40 Watts
|
| Enclosure | ABS |
| Mounting | Include Base or 75mm & 100 mm VESA Hole Pattern |
| Operating Temperature |
14° to 122° F / -10º to 50º C
|
| Humidity |
5-90% RH
|
| Shock |
50 G (20 msec, 1/2 sine)
|
| Vibration |
1.5G RMS 10-200 HZ
|
| Approvals | UL/cUL, FCC, CE, TUV, RoHS |
| Dimensions | 14.8” (W) x 12.45” (H) x 1.9” (D) |
| Weight |
9 lbs.
|
