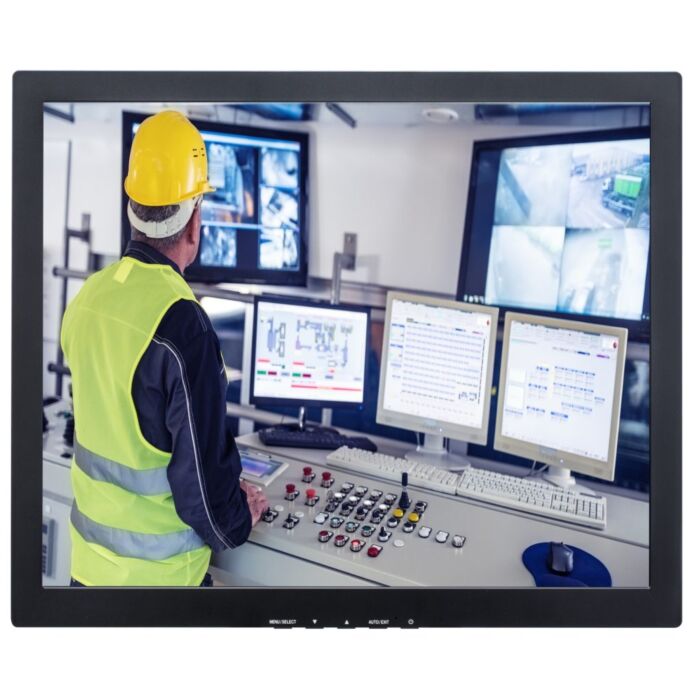

Tru-Vu VM-17U-36 17" 5:4 Aspect Ratio Monitors - 17 Inch Square Monitor
*Please note this product is subject to tariff fee*
Discover the VM-17U-36, a 17" square monitor built for industrial toughness and clarity. Ideal for analog and BNC cameras, this rugged display with TRU-Tuff technology ensures reliability. Customize your solution with various configurations and enjoy a 3-year warranty.Unmatched Durability and Clarity: VM-17U-36 17" 5:4 Aspect Ratio Monitor
Elevate your industrial viewing experience with the VM-17U-36, a robust 17-inch square monitor designed for demanding applications. Boasting a 5:4 aspect ratio and a high-resolution 1280 x 1024 (SXGA), this monitor is tailored for optimal performance with analog and BNC cameras, as well as legacy machine vision systems. The TRU-Tuff treatment ensures exceptional shock and vibration resistance, setting it apart in rugged environments.
With a remarkable brightness of 300 nits, the VM-17 Series delivers crisp and vibrant video images crucial for industrial processes. The meticulous construction, featuring RTV silicone on all connections, dressed wires, and ThreadLock secured screws, guarantees a reliable and durable display. The OSD controls, coupled with auto re-start after power loss, enhance user convenience.
Customize your solution effortlessly, thanks to the monitor's adaptability to various configurations, including standard, open frame, rack mount, panel mount, NEMA/IP waterproof, and touch screen options. Backed by a 3-year warranty, the VM-17 Series is a testament to our commitment to quality and durability.
Features:
- 17” 4:3 Aspect Ratio Monitor
- 1280 x 1024 Resolution (SXGA)
- 350 Nits Brightness
- TRU-Tuff Ensures Maximum Shock & Vibration Resistance
- Auto Re-Start After Power Loss with Lockable On-Screen Display (OSD) Controls
- Can Be Customized to Meet Your Needs
- 3-Year Warranty
Applications:
- Manufacturing plants
- Machine vision inspection systems
- Food and beverage plants
- Surveillance systems
- Specialty vehicles
- Museums and exhibitions
| LCD Panel | 17” Color LCD (LED Backlights) |
| Display Resolution | 1280 x 1024 (SXGA) |
| Viewable Area | 13.3” (W) x 10.64” (H) |
| Pixel Pitch | 0.264mm x 0.264mm |
| Display Colors | 16.7 Million Colors |
| Aspect Ratio | 4:3 |
| Brightness | 300 nits |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 170° (H) x 160° (V) |
| Response Time | 5ms Trf |
| Control | OSD (On-Screen Display) via Front Panel Pushbuttons |
| Video Inputs | VGA,DVI |
| Internal Speakers | Dual Front |
| Power Requirement | 9-36 VDC (2.5mm Locking Connector) |
| Power Consumption | 40W |
| Enclosure / IP Rating | ABS |
| Mounting | 75x75mm Rear VESA Mount Holes (M4 x 6mm Screws) |
| Operating Temperature/Humidity | 14° to 122° F (-10° to 50° C) - 5-90% RH |
| Shock | 50 G (20 msec, ½ sine) |
| Vibration | 1.5G RMS 10-200 HZ |
| Approvals | UL/cUL, FCC, CE, TUV, RoHS |
| Dimensions | 14.88” (W) x 12.50” (H) x 1.91” (D) (378 x 317.5 x 48.6mm) |
| Net Weight | 6.9 lbs. (2.99kg) |
| Warranty | 3 Years |
