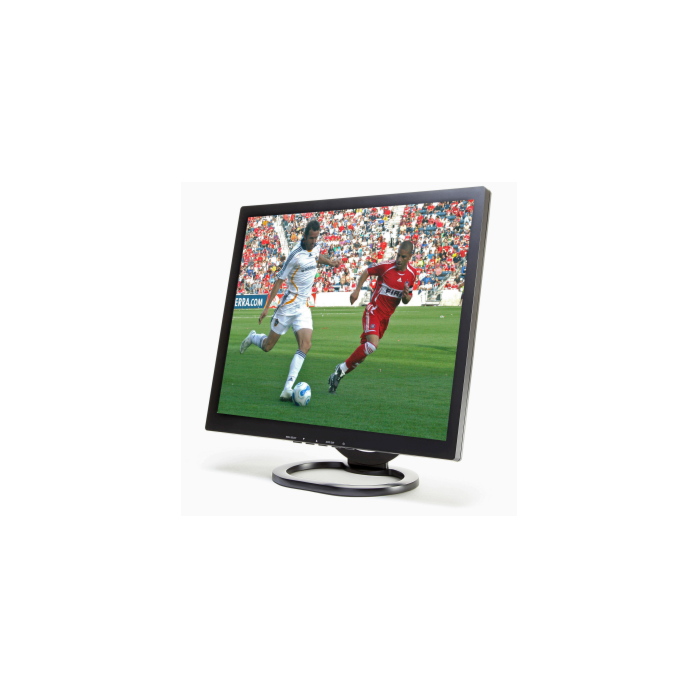

Tru-Vu VM-17B (VM17B) Customizable Industrial Monitors

*Product is discontinued, Replacement Option: VM-17U-36

The VM-17 Series monitors offer a variety of video inputs, and are available in standard, open frame, rack mount, and touch screen configurations.

SKU
VM-17B-TruVu

Tru-Vu industrial LCD monitors are specifically designed for use in demanding industrial, commercial, medical and A/V applications. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/ consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.

Features:

  • 17” TFT Active Matrix Color LCD
  • High Resolution: 1280 x 1024 (SXGA)
  • 1,000:1 Contrast Ratio
  • Video Inputs: VGA, S-Video, DVI, HDMI, Composite (BNC Loop-Thru)
  • NTSC/PAL Auto-Recognition
  • Lockable On-Screen Display (OSD) Controls
  • Can Be Customized to Meet Your Needs
  • 3 Year Warranty

  • Applications:

  • Industrial
  • Commercial
  • Medical
  • A/V applications
  •
    VM-17B
    LCD Panel 17” TFT Color LCD
    Resolution 1280 x 1024 (SXGA)
    Viewing Area
    13.3” (W) x 10.64” (H)
    Pixel Pitch
    0.264mm x 0.264mm
    Display Colors
    16.7 Million
    Aspect Ratio 5:4
    Brightness
    300 nits
    Contrast Ratio
    800:1
    Viewing Angle
    160° (H) x 160° (V)
    Response Time
    3 msec (gray to gray)
    Control
    OSD (On-Screen Display) via Front Panel Pushbuttons
    Video Inputs VGA, DVI-D
    Analog Video Outputs -----
    Cortez Image Processing Board Optional
    Internal Speakers Optional
    Power Requirement 12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included Power Brick
    Power Consumption
    40 Watts
    Enclosure ABS
    Mounting Included Base or 75x75mm VESA Hole Pattern
    Operating Temperature
    14° to 122° F / -10º to 50º C
    Humidity
    5-90% RH
    Shock
    50 G (20 msec, 1/2 sine)
    Vibration
    1.5G RMS 10-200 HZ
    Approvals UL/cUL, FCC, CE, TUV, RoHS
    Dimensions 14.8” (W) x 12.45” (H) x 1.9” (D)
    Weight 9 lbs. (4.08 kg)
