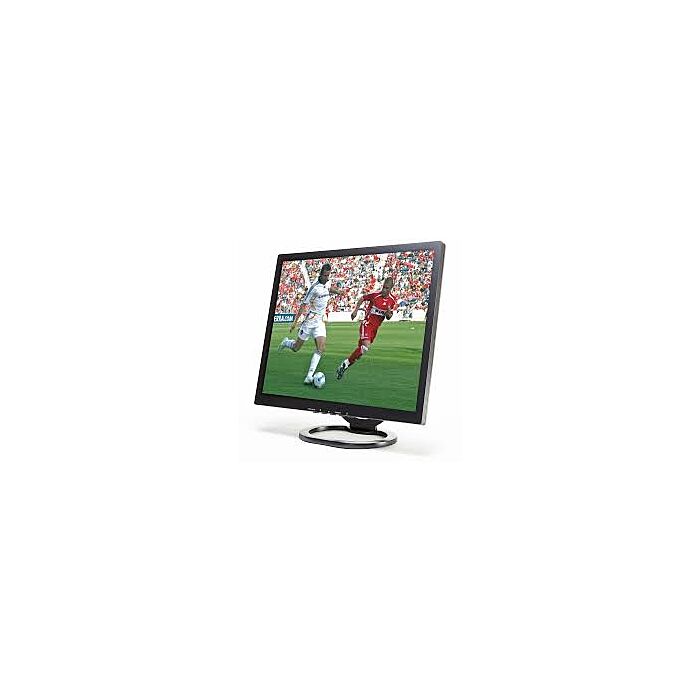

Tru-Vu VM-17ABS 17″ TFT Active Matrix Color LCD Monitor
*Product is discontinued, Replacement Option: VM-17U-36
The VM-17ABS monitors offers a variety of video inputs, and are available in standard, open frame, rack mount, panel mount, and touch screen configurations.
SKU
VM-17ABS-Truvu
Tru-Vu VM-17ABS 17″ TFT Active Matrix Color LCD Monitor
Features:
Applications:
|
VM-17ABS
|
||
| LCD Panel | 17″ Color LCD (LED Backlights) | |
| Resolution |
1280 x 1024 (SXGA)
|
|
| Viewing Area |
13.3” (W) x 10.64” (H) (337.82 x 270.25 mm)
|
|
| Pixel Pitch |
0.264mm x 0.264mm
|
|
| Display Colors |
16.7 Million
|
|
| Aspect Ratio |
4:3 (5:4)
|
|
| Brightness |
300 nits
|
|
| Contrast Ratio |
1,000:1
|
|
| Viewing Angle |
170° (H) x 160° (V)
|
|
| Response Time |
5 msec Trf
|
|
| Control |
OSD (On-Screen Display) via Front Panel Pushbuttons
|
|
| Video Inputs |
VGA, S-Video, Composite (BNC), NTSC/PAL Auto-Recognition
|
|
| Cortez Image Processing Board |
Included
|
|
| Internal Speakers |
Dual Front
|
|
| Power Requirement | 12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included Power Brick | |
| Power Consumption |
40 Watts
|
|
| Enclosure |
ABS
|
|
| Mounting | Included Base or 75x75mm Rear VESA Hole Pattern | |
| Operating Temperature |
14° to 122° F / -10º to 50º C
|
|
| Humidity |
5-90% RH
|
|
| Shock |
50 G (20 msec, 1/2 sine)
|
|
| Vibration |
1.5G RMS 10-200 HZ
|
|
| Approvals |
UL/cUL, FCC, CE, TUV, RoHS
|
|
| Dimensions |
14.95” (W) x 13.50” (H) x 1.9” (D)
|
|
| Weight |
9 lbs. / 4.08 kg
|
|
