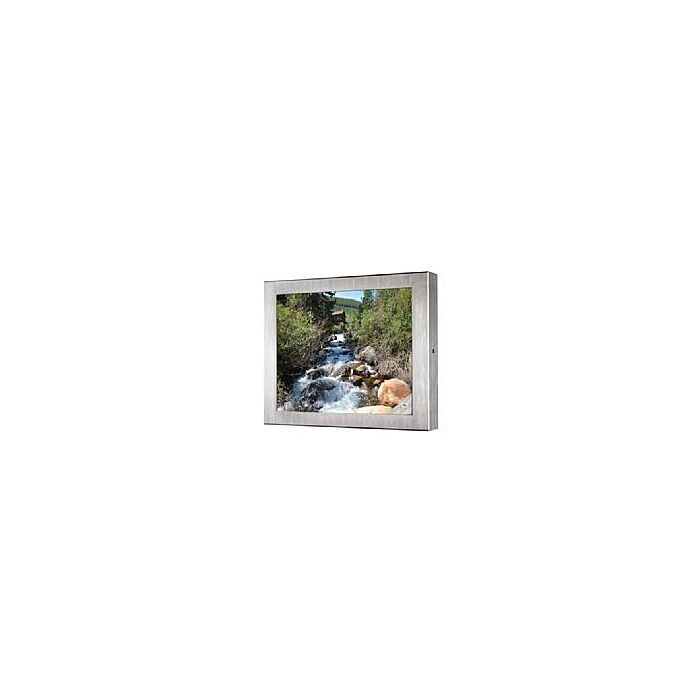

Tru-Vu SRMW-19U-24 (SRMW19U24) 19” Waterproof Sunlight Readable LCD Monitor
*Product is discontinued, Replacement Option: SRMW-19U-36
The SRMW-19U-24 sunlight readable monitors are designed to operate in direct bright sunlight, or in other high ambient-light conditions. They utilize state-of-the-art LED backlights to produce over 1,000 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen.
The SRMW-19U-24 features a rugged NEMA 4X stainless steel panel-mount enclosure which can also be painted black. It is completely sealed and will withstand rain, snow, sleet, etc.
The SRMW-19U-24 is ideal for outdoor use in a wide range of demanding applications including military, law enforcement, stadiums, amusement parks, advertising, transportation, marine, auto racing, oil and gas, inspection and other industries where viewability in direct sunlight is crucial.
Features:
Applications:
-
LCD Panel 19” Color LCD
-
Backlights LED
-
Resolution 1280 x 1024
-
Viewable Area (inches) 14.81” x 11.85”
-
Pixel Pitch 0.294mm
-
Display Colors 16.7m
-
Aspect Ratio 4:3 (5:4)
-
Brightness 1,000 nits
-
Contrast Ratio 1,000:1
-
Viewing Angle 170° x 160°
-
Response Time 10 msec
-
Control OSD via Rear Panel Pushbuttons
-
Video Inputs VGA, HDM, Composite (BNC Loop-Thru)
-
Power Requirement 12-24 VDC
-
Power Consumption N/A
-
Operating Temperature -30˚C to 85˚C
-
Humidity 5-90% RH
-
Shock 50 G (20 msec, ½ sine)
-
Vibration 1.5G RMS 10-200 HZ
-
Dimesnions (inches) TBD
-
Weight TBD
