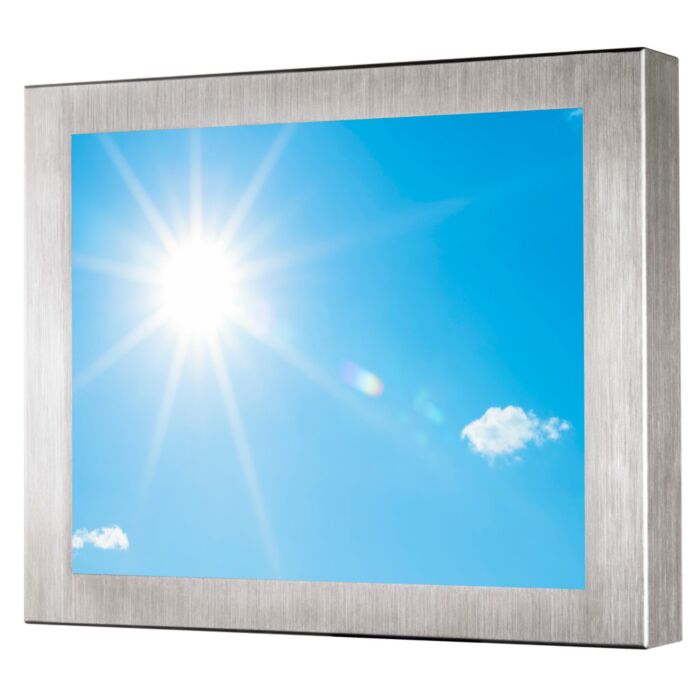

Tru-Vu SRMW-19U-36 19" Outdoor Monitor
High-Brightness 19" Outdoor Monitor for Industrial Applications
Experience the TRU-Vu SRMW-19U-36, a 19" outdoor monitor designed for demanding industrial and machine vision applications. With a staggering 1,500 nits brightness, this display ensures crystal-clear images in direct sunlight and high ambient-light conditions. The 5:4 aspect ratio and 1280 x 1024 resolution provide accurate video signal matching, enhancing overall visual performance.
Built to withstand harsh environments, these monitors feature a rugged NEMA 4X waterproof stainless steel enclosure, impervious to liquids, rust, and corrosion. The TRU-Tuff treatment adds shock and vibration resistance, ensuring longevity and reliability. Operating seamlessly in extreme temperatures from -22°F to +185°F, these monitors thrive in diverse settings.
Deployed globally in military, law enforcement, aviation, and various industries, the SRMW-19U-36 comes with a 3-year warranty, guaranteeing years of worry-free operation. Trust TRU-Vu's expertise in industrial-grade components, providing superior image quality and durability. Whether in inspection, marine, oil & gas, or transportation, these monitors excel.
Features:
- 1,500 nits Brightness
- Produces Clear, Sharp Images Even in Direct Bright Sunlight
- Waterproof NEMA 4X Stainless Steel Enclosure
- Sunlight Readable Monitor
- Automated Ambient Light Sensor
- 9-36VDC
- Operating Temperature: -22° F to +185° F (-30° to +85° C)
- Auto Re-Start After Power Loss
- TRU-Tuff Ensures Maximum Shock/Vibration Resistance
- 3-Year Warranty
Applications:
- Industrial Machine Vision
- Inspection
- Marine
- Oil & Gas
- Transportation
- Military
- Law Enforcement
- Aviation
- Entertainment
| SRMW-19U-36 | |
| LCD Panel | 19” Color LCD; LED Backlights |
| Resolution | 1280 x 1024 (SXGA) |
| Viewing Area | 14.82” (W) x 11.85” (H) (376.32 x 301.06 mm) |
| Pixel Pitch |
0.294mm
|
| Display Colors |
16.7 Million
|
| Aspect Ratio |
4:3 (5:4)
|
| Brightness |
1,500 nits
|
| Contrast Ratio |
1,000:1
|
| Dimming Function |
Automatic Ambient Light Sensor
|
| Front Glass |
Anti-Reflective
|
| Viewing Angle | 170° (H) x 160° (W) |
| Response Time | 10 msec |
| Control | OSD via Rear Panel Pushbuttons |
| Video Inputs | VGA, HDMI, Composite (BNC Loop-Thru) |
| Power Requirement | 9-36 VDC with 2.5 Locking pigtail |
| Power Consumption | 40W |
| Enclosure | Stainless Steel |
| Enclosure Rating | NEMA 4X ALL SIDES |
| Mounting | 100 x 100 mm Rear VESA Mount Holes |
| Operating Temperature/Humidity | -22˚ to +185˚F (-30 to +85˚C) - 5-90%RH |
| Shock | 50 G (20 msec, ½ sine) |
| Vibration | 1.5 G, (10-200Hz, P-P) |
| Dimensions | 17.73" (W) x 14.36" (H) x 3.26" (D) (450.4 W x 364.8 H x 79.4 D mm) |
| Weight | 18.2 lbs (8.3 kg) |
| Included Accessories | 2.5mm locking pigtail |
| Warranty | 3 Years |
