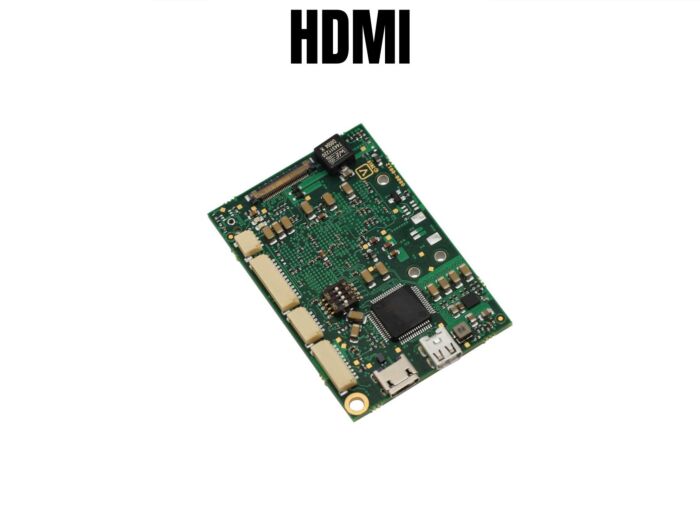

TL8652 4-Channel LVDS Input Video Transceiver with HDMI Output, RS232/TTL Control for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

The TL8652 is a high-performance interface and signal processor specifically designed to work with Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV Block Cameras. It provides a seamless solution for transmitting digital video signals, supporting 4-channel LVDS video input directly from the camera, and ensuring superior output quality. The module offers multiple video output resolutions, including 1080p at 60Hz, 50Hz, 30Hz, and 25Hz, as well as 720p at 60Hz and 50Hz, and 1080i at 60Hz and 50Hz, providing a versatile range of options for different display setups. The TL8652 supports HDMI 1.4 output, with selectable RGB444 and YCbCr422 color formats, offering flexible options for integration into various systems while maintaining exceptional image quality through its native digital signal processing.

For camera control, the TL8652 integrates multiple interfaces, including a USB2 UART, RS232, and TTL-level serial control, allowing for direct camera adjustments and improved operational efficiency. The module is powered via a 5V DC USB input, drawing only 1.5W and 300mA under typical conditions, ensuring low power consumption even during extended use. The TL8652 is engineered to operate reliably in a wide range of environments, with an operating temperature range from -5°C to +60°C and a humidity tolerance of 20% to 80%, making it a robust choice for industrial and commercial applications. A dedicated CVBS loop-out connector is included for MP1110M-VC models, providing additional video output options. This compact yet powerful module is ideal for high-quality video processing and control in demanding environments.

Features:

• Supports Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV Block Cameras
• Digital 4-channel LVDS video input from camera
• 1080p output at 60Hz, 50Hz, 30Hz, and 25Hz
• 720p output at 60Hz and 50Hz
• 1080i output at 60Hz and 50Hz
• HDMI 1.4 output, RGB444 or YCbCr422 color format selectable
• Native digital signal processing chain for best image quality
• CVBS loop out on dedicated connector (MP1110M-VC only)
• Integrated USB2 UART for camera control
• RS232 and TTL level serial control interface
• USB powered 5V DC
• Board side mount

Applications:

• Industrial camera systems
• Video surveillance
• Robotics vision
• Machine vision
• Automated inspection
• Security monitoring
• OEM camera integration
• Video signal processing
• High-definition video output
• Embedded systems
