Sentech STC-MC83USB XGA USB Industrial Camera – 0.8MP Color CCD, 30 FPS, CS-Mount (Discontinued)
*In Stock Now Only 3 Left, Replacement Option: STC-MCS163U3V

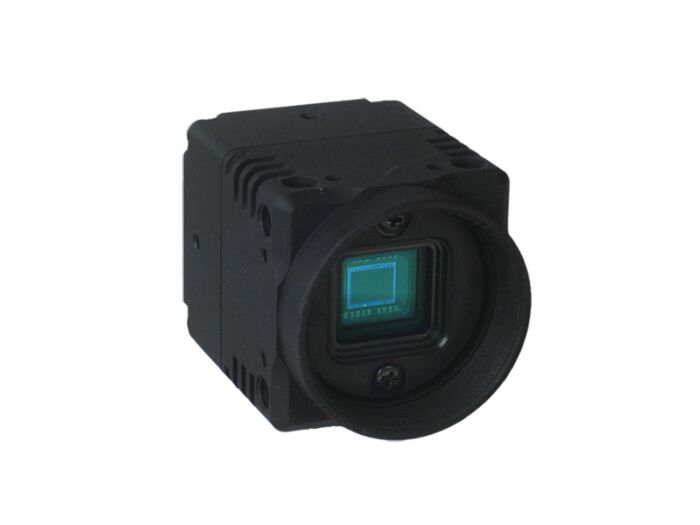

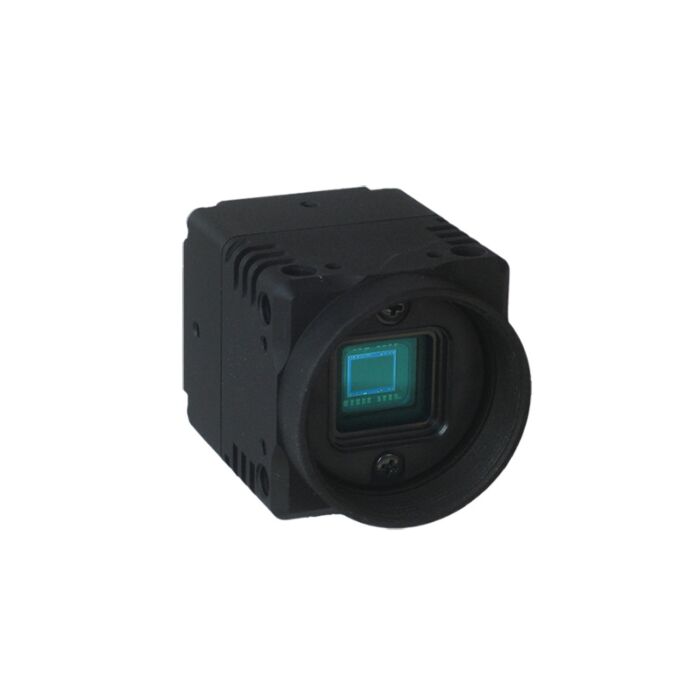

The Omron Sentech STC-MC83USB is an ultra-compact XGA (1024 × 768) USB 2.0 industrial camera designed for machine vision, inspection, and automation applications. Built around the Sony ICX204AK progressive scan CCD sensor, the camera delivers reliable 0.8 megapixel color imaging at up to 30 FPS with flexible trigger modes and multiple scanning options.
With its 28 × 28 mm compact housing, CS-mount lens compatibility, and USB plug-and-play connectivity, the STC-MC83USB is ideal for integration into tight industrial environments, OEM systems, laboratory instruments, and inspection equipment.
The Omron Sentech STC-MC83USB is a compact USB machine vision camera designed for reliable imaging in industrial automation, robotics, and inspection environments. Utilizing the Sony ICX204AK progressive scan CCD sensor, the camera captures 1024 × 768 XGA resolution images with excellent color accuracy and stable performance.
With support for hardware and software triggering, the STC-MC83USB integrates easily into automated imaging systems where precise capture timing is required. Multiple scanning modes—including full scan, partial scan, and variable scan—allow system designers to increase frame rate or focus on specific regions of interest.
The camera connects via USB 2.0 high-speed interface, providing simple installation and power through the USB connection. Its CS-mount lens interface supports a wide range of machine vision lenses, enabling flexibility across inspection, microscopy, and OEM embedded imaging applications.
Engineered with an ultra-compact 28 mm square housing, the STCMC83USB is well suited for integration into space-limited equipment including robotics systems, laboratory devices, and embedded inspection systems.
Although the STC-MC83USB has been discontinued, it remains a popular camera for legacy machine vision systems and may still be available while inventory lasts.
Key Features:
- 0.8 Megapixel XGA (1024 × 768) progressive scan CCD sensor
- Sony ICX204AK color CCD sensor for stable machine vision imaging
- USB 2.0 high-speed interface with plug-and-play operation
- Hardware and software trigger support for synchronized capture
- Multiple scanning modes including partial and variable scanning
- Compact 28 × 28 × 42 mm industrial camera housing
- CS-mount lens compatibility for flexible optical configurations
- 8-bit, 10-bit, and 12-bit image output options
- Designed for machine vision, automation, and laboratory systems
Applications:
- Machine vision inspection
- Industrial automation systems
- Microscopy imaging systems
- Laboratory instrumentation
- Robotics vision guidance
- Embedded OEM camera systems
- Factory quality inspection
- Measurement and metrology systems
Model No | STC-MC83USB |
Image Sensor | 1/3” Interline XGA color progressive CCD: ICX204AK (Sony) |
Total Picture Element | 1077 (H) x 788 (V) |
Effective Picture Element | 1034 (H) x 779 (V) |
Chip Size | 5.80 (H) x 4.92 (V) mm |
Cell Size | 4.65 (H) x 4.65 (V) µm |
Scanning System | Progressive |
Resolution | 1024 (H) x 768 (V) (Full scanning) 1024 (H) x 344 (V) (1/2 partial scanning) 1024 (H) x 136 (V) (1/4 partial scanning) |
Scanning Methods | Full scanning, 1/1 partial scanning, 1/2 partial scanning, 1/4 partial scanning, Variable partial scanning |
Maximum Frame Rate | - |
- Full Scanning | 29.18 fps (Normal) / 14.59 fps (1/2 clock) / 7.295 fps (1/4 clock) |
- 1/2 Partial Scanning | 60.02 fps (Normal) / 30.01 fps (1/2 clock) / 15.00 fps (1/4 clock) |
- 1/4 Partial Scanning | 120.35 (Normal) / 60.175 fps (1/2 clock) / 30.087 fps (1/4 clock) |
Pixel Frequency | 29.5 MHz (Normal) / 14.75 MHz (1/2 clock) / 7.375 MHz (1/4 clock) |
Video Output | 8bit / 10bit / 12bit |
Minimum Scene Illumination | 21 Lux at F1.2 |
Sync System | Internal |
Electronic Shutter | Auto / Manual (software selectable) |
- Normal | 1/29,500,000 to 1/29.18 seconds |
- 1/2 Clock | 1/14,750,000 to 1/14.59 seconds |
- 1/4 Clock | 1/7,375,000 to 1/7.30 seconds |
Gain | Auto / Manual (software selectable) |
Gamma | Manual (software selectable) |
White Balance | Auto / Manual / One shot (software selectable) |
Trigger Mode | Free-run / Edge preset trigger / Pulse width trigger / Start & stop trigger (software selectable) |
Input / Output | USB 2.0 High Speed |
Power | - |
- Input Voltage | +5 Vdc through USB connector (+4.4 to +5.25V) |
- Consumption | < 300 mA |
Dimensions | 28 (W) x 28 (H) x 42 (D) mm (excluding connector) |
Lens Mount | CS mount |
Weight | Approximately 45g |
Interface Connector | USB: mini-B USB connector IO signal: 6pin connector (HR10A-7R-6PB or equivalent) |
Temperature | - |
- Operational | 0 ~ 40 deg. C |
- Storage | -30 ~ 65 deg. C |
Vibration | 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each |
Shock | Acceleration 70G, half amplitude 6 ms, 3 directions 3 times each |
Standard Compliancy | EMS: En61000-6-2, EMI: EN61000-6-3 (Class B) |
RoHS | RoHS Compliant |
