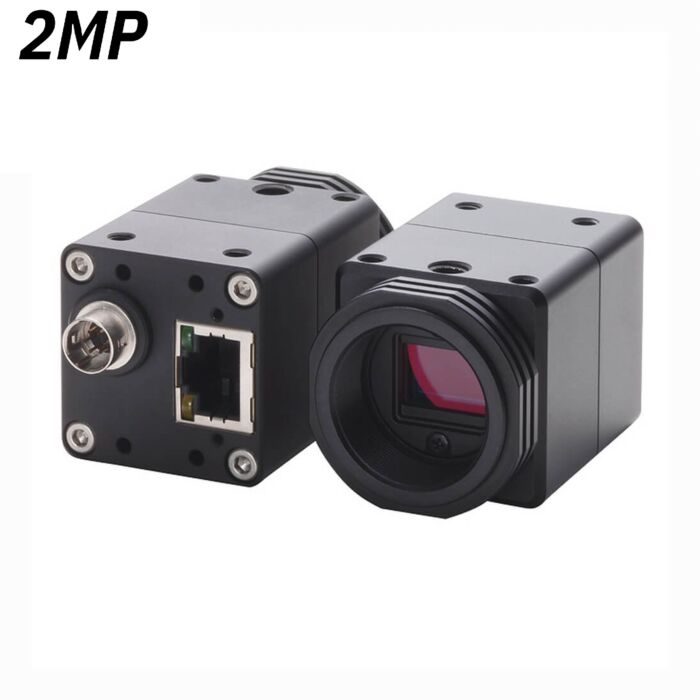

Omron STC-SB202POEHS 2MP GigE Monochrome Camera (CCD Sensor: ICX4274AL) (Discontinued)
Omron/Sentech's STC-SB202POEHS is part of the Brand New Power over Ethernet High Speed GigE camera series featuring 1/1.8" monochrome UXGA sensor, 38fps, and communication over a 6 pin Hirose or Ethernet connector (CCD Sensor: ICX4274AL)
*Product is discontinued, Replacement Option: STC-MBS202POE
The STC-SB202POEHS is part of Sentech's Brand New Power over Ethernet High Speed GigE camera series. It features a 1/1.8" monochrome UXGA sensor, 30fps and communication over a 6 pin Hirose or Ethernet connector. The STC-SB202POEHS boasts a compact 35(w) x 35(H) x 55.9 (D) mm size, a user-programmable Area of Interest (AOI) and a Gamma Table that can be imported. This camera meets all industry standards for GigE Vision® and GenICam™, and is compatible with all standard industry drivers. The GigE PoEHS series is available now at an extremely low cost.
Features:
- User Programmable AOI
- High Speed Power Over Ethernet
- 2.0 Megapixel Resolution with 30 fps
| STC-SB202POEHS Specifications | |
| Imager | 1/1.8” interline UXGA monochrome progressive CCD: ICX4274AL |
| Total Picture Element | 1688 (H) x 1246 (V) |
| Active Picture Element | UXGA: 1624 (H) x 1236 (V) |
| Chip Size | 8.5 (H) x 6.8 (V) mm |
| Cell Size | 4.4 (H) x 4.4 (V) um |
| Scanning System | Progressive |
| Vertical Frequency | 30.29207 Hz at full resolution; 0.57871 to 121.16830Hz changeable via the communication; Maximum frame rate is dependent on the AOI setting; Maximum frame rate of the camera (121.16830 Hz) is 104 vertical resolution AOI setting. |
| Horizontal Frequency | 37.9257 Hz |
| Pixel Frequency | 72.81683 MHz |
| Noise Level | |
@ 8bit output | <= 3 Digit (Gain 0 dB) |
@ 10bit output | <= 12 Digit (Gain 0 dB) |
@ 12bit output | <= 48 Digit (gain 0 dB) |
| Minimum Scene Illumination | 0.16 Lux at F1.2, 15.31668 Hz |
| Sync System | Internal |
| Video Output | Digital 8 ,10 ,12 bit Raw Data |
| Interface | PoE: IEEE802.3af CLASS3 (1000BASE-T) |
| Protocol | GigE Vision 1.2 and GeniCam 2.0 compliant |
| Exposure Time | Preset continuous mode: 10 seconds to 16,777,216 seconds; Preset trigger mode: 10 seconds to 16,777,216 seconds; Pulse width mode: 10 seconds to Unlimited. |
| ALC | Electronic iris and AGC (ON/OFF) |
| Gain | 0 to 20.4 dB |
| Gamma | Gamma 1.0 (Factory default) or downloadable gamma table |
| AOI Function | Programmable AOI setting via the communication |
| Smear Reduction | Selectable ON/OFF via the communication |
| Color Interpolation | N/A |
| White Balance Function | N/A |
| Trigger Mode | Edge preset trigger, pulse width trigger (unlimited exposure time) |
| Communication | UART communication through Ethernet Port |
| I/Os | One opt isolated input and two open collector outputs |
| Power | |
Input Voltage | +10.8 to +26.4Vdc through power/IO connector or Power Over Ethernet; (Auto detection with power/IO connector prioritized) |
Consumption | 12V: 4.1W / 3.9W, PoE: 4.4W / 4.2W |
| Dimensions | 35 (W) x 35 (H) x 57.3 (D) mm excluding connectors |
| Optical Filter | IR cut filter on |
| Optical Center Accuracy | Positional accuracy in H and V directions: +/- 0.3 mm; Rotational accuracy of H and V: +/- 1.5 deg. |
| Material | Aluminum (AC) |
| Lens Mount | C Mount |
| Connectors | RJ45 connector; Power/IO connector: HR10A-10R-6PB (Hirose) or equivalent |
| Camera Mount Screws | Two ¼” Tripod screw holes (one each on top and bottom plate); Twelve M4 screw holes (four each on top, bottom, and two each on both side plates) |
| Weight | Approx. 130 |
| Operating Temperature | |
Minimum | Environmental Temperature: -5 deg. C |
Maximum | Environmental Temperature: 35 deg. C or camera housing temperature (Top Plate) : 65 deg. C |
| Storage Temperature | Environmental Temperature: -30 to 65 deg. C |
| Vibration | 20Hz to 200Hz to 20Hz (5min/cycle), acceleration 10G, 3 directions 30 min. each |
| Shock | Acceleration 38G, half amplitude 6ms, 3 directions, 3 times each |
| Standard Compliancy | EMS: EN61000-6-2, EMI: EN55011 |
| RoHS | RoHS compliant |
