Omron STC-MBS202POE Small GigE Vision Monochrome Camera

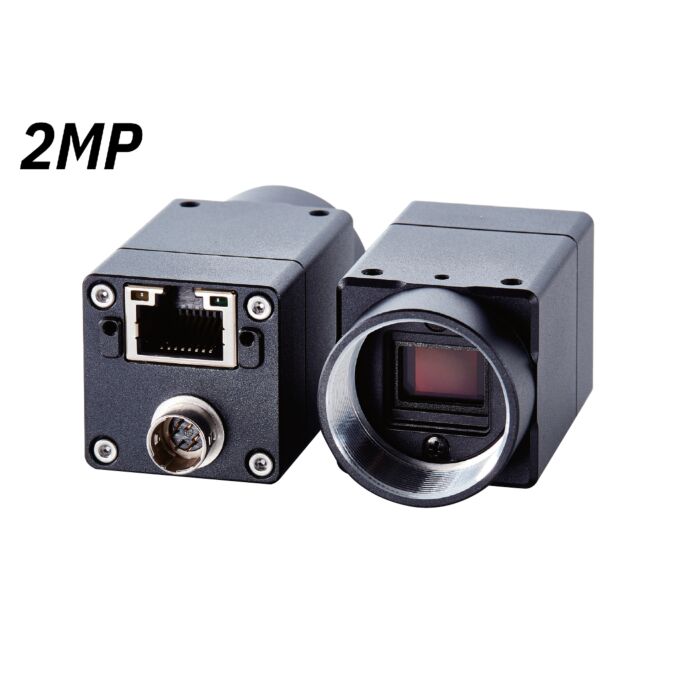

GigE Vision Area Scan Camera, 2.0 MP, Monochrome, CMOS Sony IMX430, 1/1.7'', 4.5 µm, 54.4 fps, Global Shutter, C Mount, Cased, POE

*Product is discontinued

SKU
STC-MBS202POE

These Omron cameras are perfect for applications requiring high quality with it's IMX430 2MP global shutter sensor with 54.4fps.

Features:

  • 1/1.7" Sensor Size
  • Sony CMOS Sensor
  • 2 MP Resolution
  • Global Shutter
Dimensions  29W x 29H x 53D mm
Camera Mounting Top Plate: M3 x 2
Bottom Plate: M3 x 4
Optical Center Accuracy Rotational accuracy of horizontal and vertical +/- 1.5 deg
Frame Memory 20M: 128MB, 20M: 64MB
Housing and GND of PCB is connected isolating
GigE Vision Vision 2.1
GenICam SNFC SFNC2.3
PTP о
Gamma LUT control / GenICam
Event о
UserSet 8 Set
Chunk Data о
Action о
Number of Corrective Defective Pixels 20M: 4,096 / 12M or smaller: 2,046
