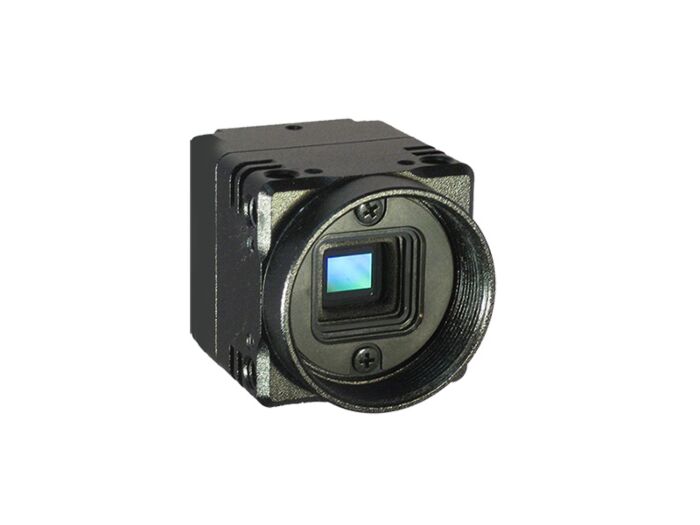

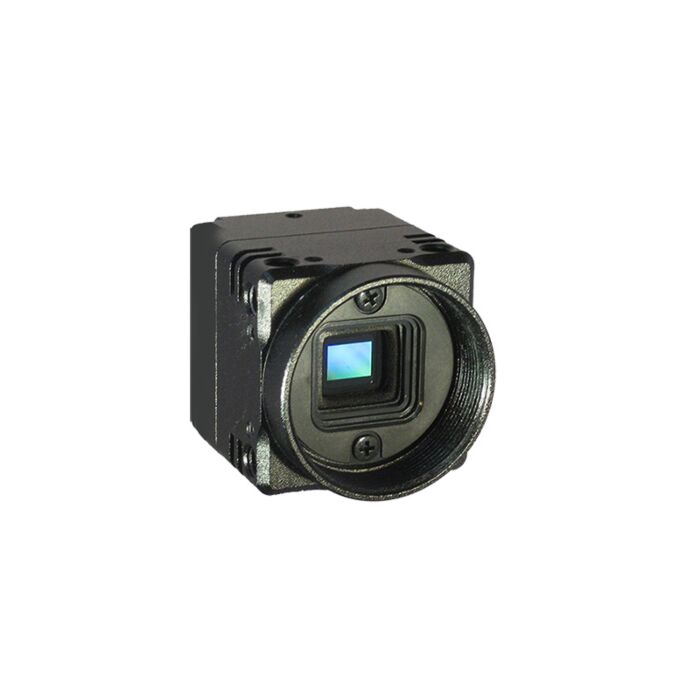

Sentech STC-MB83USB XGA Monochrome USB Camera – 0.8MP ICX204AL CCD, Progressive Scan, CS Mount Machine Vision Camera (Discontinued)
*In Stock Now Only 3 Left, Replacement Option: STC-MBS163U3V
The Omron Sentech STC-MB83USB is an ultra-compact XGA monochrome machine vision camera designed for industrial imaging, automation, and inspection systems. Built around the Sony ICX204AL progressive scan CCD sensor, this 0.8 megapixel USB 2.0 camera delivers reliable image capture at up to 30 fps with excellent sensitivity and low noise.
With hardware and software triggering, partial scanning, and CS-mount lens compatibility, the STC-MB83USB is ideal for machine vision, laboratory imaging, robotics, and OEM embedded vision systems.
This model has been discontinued by the manufacturer, but it remains in demand for legacy machine vision systems and replacement installations.
The STC-MB83USB monochrome USB camera from Omron Sentech is a compact industrial camera engineered for high-precision machine vision and scientific imaging applications. Featuring the Sony ICX204AL 1/3” progressive scan CCD sensor, the camera delivers XGA resolution (1024 × 768) with excellent sensitivity and stable image capture.
This camera supports multiple scanning modes, including full scanning, partial scanning, and binning, enabling high frame rates up to 120 fps in partial scan modes. With its USB 2.0 high-speed interface, the camera offers easy integration into industrial PCs and embedded vision systems without requiring frame grabbers.
The hardware trigger capability allows accurate synchronization with automation equipment, making the STCMB83USB well suited for inspection systems, robotics guidance, and measurement systems.
Although this model is no longer in production, it remains widely used in existing machine vision installations and OEM systems that require CCD imaging stability and monochrome precision.
Key Features:
- 0.8 Megapixel XGA monochrome CCD camera
- Sony ICX204AL progressive scan sensor
- USB 2.0 high-speed interface
- Compact 28 × 28 × 37 mm industrial camera
- Hardware and software trigger modes
- Multiple scanning modes including binning and partial scanning
- Frame rates up to 120 fps in partial scan modes
- 8-bit, 10-bit, and 12-bit image output
- CS-mount lens compatibility
- Excellent low noise CCD imaging
- Ideal for machine vision and industrial automation
Typical Applications:
- Industrial machine vision
- Factory automation inspection
- Robotics vision guidance
- Laboratory imaging
- Semiconductor inspection
- Optical measurement systems
- Biomedical imaging
- Barcode and component inspection
- Legacy machine vision system replacement
Model No | STC-MB83USB |
Image Sensor | 1/3” Interline XGA monochrome progressive CCD: ICX204AL (Sony) |
Total Picture Element | 1077 (H) x 788 (V) |
Effective Picture Element | 1034 (H) x 779 (V) |
Chip Size | 5.80 (H) x 4.92 (V) mm |
Cell Size | 4.65 (H) x 4.65 (V) µm |
Scanning System | Progressive |
Resolution | 1024 (H) x 768 (V) (Full scanning) 1024 (H) x 344 (V) (1/2 partial scanning) 1024 (H) x 136 (V) (1/4 partial scanning) |
Scanning Methods | Full scanning, 1/1 partial scanning, 1/2 partial scanning, 1/4 partial scanning, Variable partial scanning, Binning scanning, Binning 1/1 partial scanning, Binning 1/2 partial scanning, Binning 1/4 partial scanning, Binning variable partial scanning |
Maximum Frame Rate | - |
- Full Scanning | 29.18 fps (Normal) / 14.59 fps (1/2 clock) / 7.295 fps (1/4 clock) |
- 1/2 Partial Scanning | 60.02 fps (Normal) / 30.01 fps (1/2 clock) / 15.00 fps (1/4 clock) |
- 1/4 Partial Scanning | 120.35 (Normal) / 60.175 fps (1/2 clock) / 30.087 fps (1/4 clock) |
Pixel Frequency | 29.5 MHz (Normal) / 14.75 MHz (1/2 clock) / 7.375 MHz (1/4 clock) |
Video Output | 8bit / 10bit / 12bit |
Minimum Scene Illumination | 0.54 Lux at F1.2 |
Sync System | Internal |
Electronic Shutter | Auto / Manual (software selectable) |
- Normal | 1/29,500,000 to 1/29.18 seconds |
- 1/2 Clock | 1/14,750,000 to 1/14.59 seconds |
- 1/4 Clock | 1/7,375,000 to 1/7.30 seconds |
Gain | Auto / Manual (software selectable) |
Gamma | Manual (software selectable) |
White Balance | - |
Trigger Mode | Free-run / Edge preset trigger / Pulse width trigger / Start & stop trigger (software selectable) |
Input / Output | USB 2.0 High Speed |
Power | |
- Input Voltage | +5 Vdc through USB connector (+4.4 to +5.25V) |
- Consumption | < 300 mA |
Dimensions | 28 (W) x 28 (H) x 37 (D) mm (excluding connector) |
Lens Mount | CS mount |
Weight | Approximately 45g |
Interface Connector | USB: mini-B USB connector IO signal: 6pin connector (HR10A-7R-6PB or equivalent) |
Temperature | - |
- Operational | 0 ~ 40 deg. C |
- Storage | -30 ~ 65 deg. C |
Vibration | 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each |
Shock | Acceleration 70G, half amplitude 6 ms, 3 directions 3 times each |
Standard Compliancy | EMS: En61000-6-2, EMI: EN61000-6-3 (Class B) |
RoHS | RoHS Compliant |
