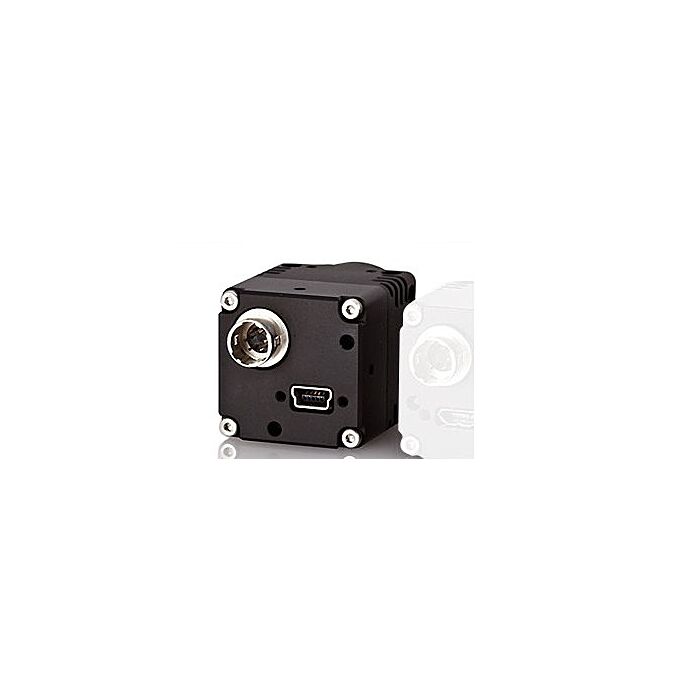

Omron STC-MB133USB USB 2.0 CCD SXVGA Monochrome Cased (Discontinued)
The STC-MB133USB is an ultra-compact, progressive scan, SXVGA, USB camera with a 1/3” monochrome CCD. It features 22fps, hardware and software triggering image capture, digital zoom and a feature-rich user based menu setup and control. (CMOS Sensor: Sony ICX445AL)
*Product is discontinued, Replacement Option: STC-MBS163U3V
Sentech's STC-MB133USB is an ultra-compact, progressive scan, SXVGA, USB camera with a 1/3” monochrome CCD. It features 22fps, hardware and software triggering image capture, digital zoom and a feature-rich user based menu setup and control.
Features:
Applications:
Imaging
Model No | STC-MB133USB |
Image Sensor | 1/3” Interline SXVGA Monochrome Progressive CCD: ICX445AL (Sony) |
Total Picture Element | 1348 (H) x 976 (V) |
Effective Picture Element | 1280 (H) x 966 (V) |
Chip Size | 6.26 (H) x 5.01 (V) mm |
Cell Size | 3.75 (H) x 3.75 (V) µm |
Function
Scanning System | Full scanning, Variable ROI |
Resolution | 1280 (H) x 960 (V) (Full Scanning) 1280 (H) x 440 (V) (1/2 Partial Scanning) 1280 (H) x 168 (V) (1/4 Partial Scanning) |
Scanning Methods | Full Scanning, 1/1 Partial Scanning, 1/2 Partial Scanning, 1/4 Partial Scanning, Variable Partial Scanning, Binning Scanning, Binning 1/1 Partial Scanning, Binning 1/2 Partial Scanning, Binning 1/4 Partial Scanning, Binning Variable Partial Scanning |
Maximum Frame Rate | - |
- Full Scanning | 22.40 fps (Normal) / 11.20 fps (1/2 clock) / 5.60 fps (1/4 clock) |
- 1/2 Partial Scanning | 44.81 fps (Normal) / 22.40 fps (1/2 clock) / 11.20 fps (1/4 clock) |
- 1/4 Partial Scanning | 89.80 fps (Normal) / 44.90 fps (1/2 clock) / 22.45 fps (1/4 clock) |
Pixel Frequency | 36.818 MHz (Normal) / 18.409 MHz (1/2 clock) / 9.20453 MHz (1/4 clock) |
Video Output | 8bit / 10bit / 12bit |
Minimum Scene Illumination | 0.15 Lux @ F1.2 |
Sync System | Internal |
Electronic Shutter | Auto / Manual (Software Selectable) |
- Normal | 1/36,818,182 ~ 1/22.40 Seconds |
- 1/2 Clock | 1/18,409,091 ~ 1/11.20 Seconds |
- 1/4 Clock | 1/9,204,545 ~ 1/5.60 Seconds |
Gain | Auto / Manual (Software Selectable) |
Gamma | Manual (Software Selectable) |
White Balance | - |
Trigger Mode | Free-run / Edge Preset Trigger / Pulse Width Trigger / Start & Stop Trigger (Software Selectable) |
Input / Output | USB 2.0 High Speed |
Mechanical
Power | - |
- Input Voltage | +5 Vdc through USB connector (+4.4 ~ +5.25V) |
- Consumption | < 300 mA |
Dimensions | 28 (W) x 28 (H) x 37 (D) mm (excluding connector) |
Lens Mount | CS Mount |
Environmental
Weight | Approx. 45g |
Interface Connector | USB: mini-B USB connector IO signal: 6pin connector (HR10A-7R-6PB or equivalent) |
Temperature | - |
- Operational | 0 ~ 40°C |
- Storage | -30 ~ 65°C |
Vibration | 20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each |
Shock | Acceleration 70G, half amplitude 6 ms, 3 directions 3 times each |
Standard Compliancy | EMS: En61000-6-2, EMI: EN61000-6-3 (Class B) |
RoHS | RoHS Compliant |
