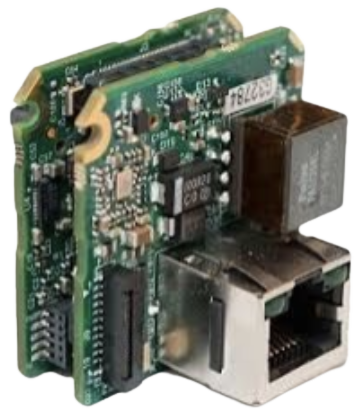

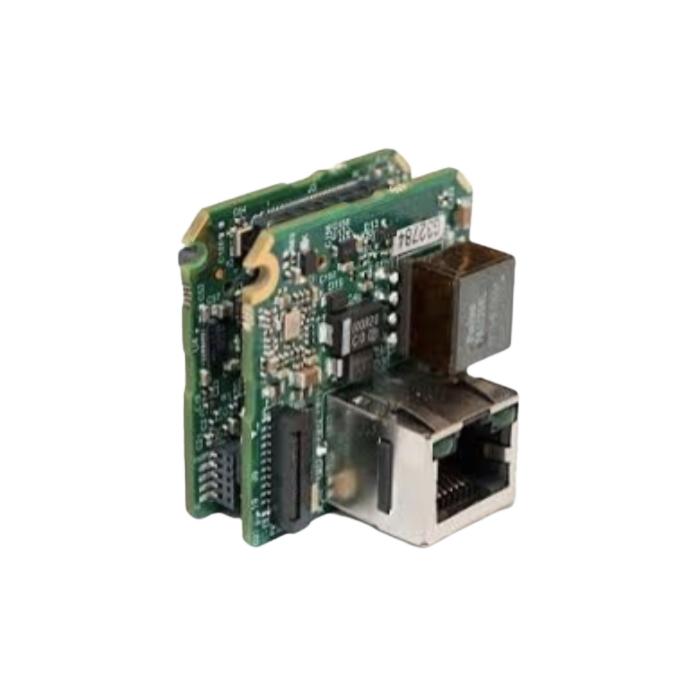

Pleora iPORT NTx-GigE (900-6005) Embedded Video Interface Development Kit
Experience Seamless Integration with NTx-GigE Embedded Video Interface Development Kit
Pleora's iPORT™ NTx-GigE Embedded Video Interface Development Kit revolutionizes industrial imaging by offering seamless integration of GigE Vision 2.0 connectivity. This comprehensive kit includes the iPORT NTx-GigE OEM Board Set (900-6003), GPIO board with soldered 12-pin circular connector and flat flex cable, NTx-Mini adapter board with 3 flat flex cables, prober board, GigE desktop NIC, PoE Power Injector, 2 Ethernet cables, and eBUS SDK USB stick.
The NTx-GigE facilitates rapid integration with its high-performance GigE Vision 2.0 connectivity, achieving throughput rates approaching 1 Gbps with low and consistent latency. Leveraging the IEEE 1588 Precision Time Protocol ensures synchronized image capture functions, allowing precise triggering of image acquisition. Furthermore, the inclusion of Power over Ethernet (PoE) and external power options maximizes design flexibility while minimizing costs.
Pleora's eBUS SDK application tool kit empowers designers to swiftly prototype and deploy production-ready software supporting video transmission over GigE, 10 GigE, and USB 3.0, all utilizing the same application programming interface (API). With the NTx-GigE Development Kit, industrial imaging systems gain a competitive edge through enhanced connectivity, reliability, and performance.
Features:
- High-performance GigE Vision 2.0 connectivity
- Low and consistent latency
- IEEE 1588 Precision Time Protocol synchronization
- Power over Ethernet (PoE) and external power options
- Comprehensive eBUS SDK application tool kit for rapid prototyping
Applications:
- Automated inspection
- Quality control
- Robotics
- Medical imaging
- Surveillance systems
|
User Circuitry Interface |
100-pin Samtec Connector: LSHM-150-04.0-L-DV-A-N-TR |
|
External Interface |
|
|
GigE Interface |
RJ-45 |
|
GigE PHY |
Marvell 88E1510 |
|
FPGA |
Altera Cyclone V |
|
Image Buffer |
120 Mb 16-bit wide DDR3 |
|
Persistent Memory |
128 Mb Serial FLASH |
|
Clock Generator |
Included |
|
Video Input |
2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Inputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Outputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Camera Control Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 connections routed to User Circuitry Interface |
|
GPIO Outputs |
3 connections routed to User Circuitry Interface |
|
Serial Communications Input |
Connection routed to User Circuitry Interface |
|
Serial Communications Output |
Connection routed to User Circuitry Interface |
|
Number of Channels |
1 |
|
Scan Modes |
Area Scan (Progressive) and Line Scan |
|
Pixel Depth (bits) |
8, 10, 12, 14, 16, 24, 32 |
|
Pixel Clock |
|
|
Taps per Data Channel |
Up to 4 |
|
Image Width (pixels) |
|
|
Image Height (pixels) |
|
|
Windowing/Region of Interest |
Yes |
|
Tap Reconstruction |
Interleaved only |
|
Size |
37.0 mm x 37.0 mm x 28.1 mm (approximate, excluding RJ-45 Jack and GPIO board |
|
Weight |
34 grams (includes NTx-GigE, GPIO board, 12-pin circular connector, and flat flex cable) |
|
Operating Temperature |
|
|
Storage Temperature |
-40°C to 85°C |
|
Power Supply |
|
|
Power Consumption |
Less than 2 Watts when streaming at 1 Gbps |
|
MTBF at 40°C |
1 318 440 hours |
|
ORDERING INFORMATION |
|
|
900-6003 |
•iPORT NTx-GigE OEM Board Set |
|
900-6004 |
•iPORT NTx-GigE OEM Kit Includes NTx-GigE OEM board set, GPIO board withunsoldered |
|
900-6006 |
•iPORT NTx-GigE-IND OEM Board Set Industrial-use board set |
|
900-6007 |
•iPORT NTx-GigE-IND OEM Kit Includes NTx-GigE-IND OEM industrial-use board set, GPIO board with unsoldered 12-pin circular connector and flat flex cable |
|
900-6005 |
•iPORT NTx-GigE Development Kit Includes NTx-GigE OEM board set, GPIO board with unsoldered 12-pin circular connector and flat flex cable, NTx-Mini adapter board wityh 3 flat flex cables, prober board, Gigabit Ethernet desktop NIC, PoE injector, 2 Ethernet cables, power supply, and eBUS SDK USB stick |
|
900-6008 |
•iPORT NTx-GigE-IND Development Kit Includes NTx-GigE-IND OEM board set, GPIO board with soldered 12-pin circular connector and flat flex cable, NTx-Mini adapter board with 3 flat flex cables, prober board, Gigabit Ethernet desktop NIC, PoE injector, 2 Ethernet cables, power supply, and eBUS SDK USB stick |
