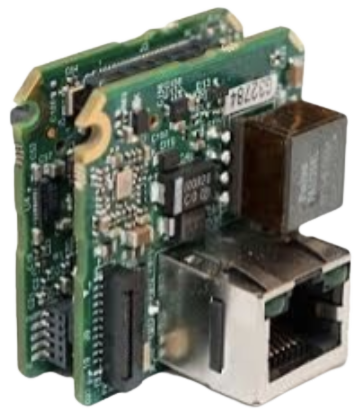

Pleora iPORT NTx-GigE-IND (900-6006) Embedded Video Interface
Unlock Seamless GigE Vision 2.0 Connectivity with iPORT NTx-GigE-IND
The Pleora iPORT NTx-GigE-IND Embedded Video Interface revolutionizes industrial camera systems by offering seamless integration of GigE Vision 2.0 connectivity. Designed for high-performance applications, this embedded hardware effortlessly converts video data to packets at throughput rates approaching 1 Gbps, ensuring efficient transmission with low and consistent latency over GigE links. Its support for the IEEE 1588 Precision Time Protocol enables precise synchronization of image capture functions, facilitating exact triggering of image acquisition.
Featuring Power over Ethernet (PoE) and external power options, the iPORT NTx-GigE-IND provides design flexibility while reducing component and operating costs. Furthermore, it is supported by Pleora’s eBUS SDK, a feature-rich application toolkit that empowers designers to rapidly prototype and deploy production-ready software. With this software suite, users can seamlessly support video transmission over GigE, 10 GigE, and USB 3.0 using the same API, streamlining development processes and accelerating time-to-market for industrial camera systems.
Features:
- Seamless GigE Vision 2.0 connectivity
- High-performance video data conversion
- IEEE 1588 Precision Time Protocol support
- Power over Ethernet (PoE) and external power options
- Integration with Pleora’s eBUS SDK for rapid prototyping and deployment
Applications:
- Machine vision systems
- Industrial imaging
- X-ray detector panels
- High-speed data transmission applications
|
User Circuitry Interface |
100-pin Samtec Connector: LSHM-150-04.0-L-DV-A-N-TR |
|
External Interface |
|
|
GigE Interface |
RJ-45 |
|
GigE PHY |
Marvell 88E1510 |
|
FPGA |
Altera Cyclone V |
|
Image Buffer |
120 Mb 16-bit wide DDR3 |
|
Persistent Memory |
128 Mb Serial FLASH |
|
Clock Generator |
Included |
|
Video Input |
2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Inputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Outputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Camera Control Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 connections routed to User Circuitry Interface |
|
GPIO Outputs |
3 connections routed to User Circuitry Interface |
|
Serial Communications Input |
Connection routed to User Circuitry Interface |
|
Serial Communications Output |
Connection routed to User Circuitry Interface |
|
Number of Channels |
1 |
|
Scan Modes |
Area Scan (Progressive) and Line Scan |
|
Pixel Depth (bits) |
8, 10, 12, 14, 16, 24, 32 |
|
Pixel Clock |
|
|
Taps per Data Channel |
Up to 4 |
|
Image Width (pixels) |
|
|
Image Height (pixels) |
|
|
Windowing/Region of Interest |
Yes |
|
Tap Reconstruction |
Interleaved only |
|
Size |
37.0 mm x 37.0 mm x 28.1 mm (approximate, excluding RJ-45 Jack and GPIO board |
|
Weight |
34 grams (includes NTx-GigE, GPIO board, 12-pin circular connector, and flat flex cable) |
|
Operating Temperature |
|
|
Storage Temperature |
-40°C to 85°C |
|
Power Supply |
|
|
Power Consumption |
Less than 2 Watts when streaming at 1 Gbps |
|
MTBF at 40°C |
1 318 440 hours |
|
ORDERING INFORMATION |
|
|
900-6003 |
•iPORT NTx-GigE OEM Board Set |
|
900-6004 |
•iPORT NTx-GigE OEM Kit Includes NTx-GigE OEM board set, GPIO board withunsoldered |
|
900-6006 |
•iPORT NTx-GigE-IND OEM Board Set Industrial-use board set |
|
900-6007 |
•iPORT NTx-GigE-IND OEM Kit Includes NTx-GigE-IND OEM industrial-use board set, GPIO board with unsoldered 12-pin circular connector and flat flex cable |
|
900-6005 |
•iPORT NTx-GigE Development Kit Includes NTx-GigE OEM board set, GPIO board with unsoldered 12-pin circular connector and flat flex cable, NTx-Mini adapter board wityh 3 flat flex cables, prober board, Gigabit Ethernet desktop NIC, PoE injector, 2 Ethernet cables, power supply, and eBUS SDK USB stick |
|
900-6008 |
•iPORT NTx-GigE-IND Development Kit Includes NTx-GigE-IND OEM board set, GPIO board with soldered 12-pin circular connector and flat flex cable, NTx-Mini adapter board with 3 flat flex cables, prober board, Gigabit Ethernet desktop NIC, PoE injector, 2 Ethernet cables, power supply, and eBUS SDK USB stick |
