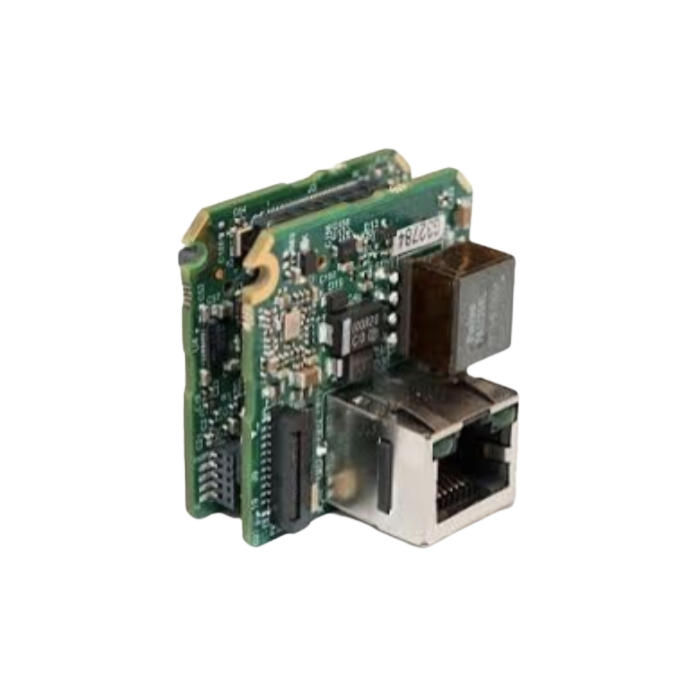

Pleora iPORT NTx-GigE (900-6004) Embedded Video Interface Kit
Pleora iPORT NTx-GigE Embedded Video Interface OEM Board Set Kit
Elevate your industrial imaging capabilities with the Pleora iPORT NTx-GigE Embedded Video Interface OEM Board Set. This innovative solution seamlessly integrates GigE Vision 2.0 connectivity into cameras, X-ray detector panels, and imaging systems, empowering users with high-performance data transmission. Engineered for efficiency, the embedded hardware swiftly converts video data into packets at nearly 1 Gbps, ensuring rapid transfer with minimal latency over GigE links. Leveraging the IEEE 1588 Precision Time Protocol, precise synchronization of image capture functions enables impeccable timing for acquisition triggers.
Flexible design options are a hallmark of the iPORT NTx-GigE, offering both Power over Ethernet (PoE) and external power alternatives, thereby optimizing cost efficiency without compromising performance. Supported by Pleora's comprehensive eBUS SDK application toolkit, software development becomes a streamlined process, enabling designers to prototype and deploy robust solutions quickly. Whether for machine vision systems, industrial imaging, or robotic applications, the iPORT NTx-GigE empowers users with reliable connectivity, ensuring seamless integration and enhanced operational efficiency.
Features:
- Seamless integration with industrial camera systems
- High-performance GigE Vision 2.0 connectivity
- IEEE 1588 Precision Time Protocol for synchronization
- Power over Ethernet (PoE) and external power options
- Supported by Pleora’s eBUS SDK for rapid software development
Applications:
- Machine vision systems
- Industrial imaging
- X-ray detector panels
- Inspection systems
- Robotics and automation
|
User Circuitry Interface |
100-pin Samtec Connector: LSHM-150-04.0-L-DV-A-N-TR |
|
External Interface |
|
|
GigE Interface |
RJ-45 |
|
GigE PHY |
Marvell 88E1510 |
|
FPGA |
Altera Cyclone V |
|
Image Buffer |
120 Mb 16-bit wide DDR3 |
|
Persistent Memory |
128 Mb Serial FLASH |
|
Clock Generator |
Included |
|
Video Input |
2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Inputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Outputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Camera Control Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 connections routed to User Circuitry Interface |
|
GPIO Outputs |
3 connections routed to User Circuitry Interface |
|
Serial Communications Input |
Connection routed to User Circuitry Interface |
|
Serial Communications Output |
Connection routed to User Circuitry Interface |
|
Number of Channels |
1 |
|
Scan Modes |
Area Scan (Progressive) and Line Scan |
|
Pixel Depth (bits) |
8, 10, 12, 14, 16, 24, 32 |
|
Pixel Clock |
|
|
Taps per Data Channel |
Up to 4 |
|
Image Width (pixels) |
|
|
Image Height (pixels) |
|
|
Windowing/Region of Interest |
Yes |
|
Tap Reconstruction |
Interleaved only |
|
Size |
37.0 mm x 37.0 mm x 28.1 mm (approximate, excluding RJ-45 Jack and GPIO board |
|
Weight |
34 grams (includes NTx-GigE, GPIO board, 12-pin circular connector, and flat flex cable) |
|
Operating Temperature |
|
|
Storage Temperature |
-40°C to 85°C |
|
Power Supply |
|
|
Power Consumption |
Less than 2 Watts when streaming at 1 Gbps |
|
MTBF at 40°C |
1 318 440 hours |
|
ORDERING INFORMATION |
|
|
900-6003 |
•iPORT NTx-GigE OEM Board Set |
|
900-6004 |
•iPORT NTx-GigE OEM Kit Includes NTx-GigE OEM board set, GPIO board withunsoldered |
|
900-6006 |
•iPORT NTx-GigE-IND OEM Board Set Industrial-use board set |
|
900-6007 |
•iPORT NTx-GigE-IND OEM Kit Includes NTx-GigE-IND OEM industrial-use board set, GPIO board with unsoldered 12-pin circular connector and flat flex cable |
|
900-6005 |
•iPORT NTx-GigE Development Kit Includes NTx-GigE OEM board set, GPIO board with unsoldered 12-pin circular connector and flat flex cable, NTx-Mini adapter board wityh 3 flat flex cables, prober board, Gigabit Ethernet desktop NIC, PoE injector, 2 Ethernet cables, power supply, and eBUS SDK USB stick |
|
900-6008 |
•iPORT NTx-GigE-IND Development Kit Includes NTx-GigE-IND OEM board set, GPIO board with soldered 12-pin circular connector and flat flex cable, NTx-Mini adapter board with 3 flat flex cables, prober board, Gigabit Ethernet desktop NIC, PoE injector, 2 Ethernet cables, power supply, and eBUS SDK USB stick |
