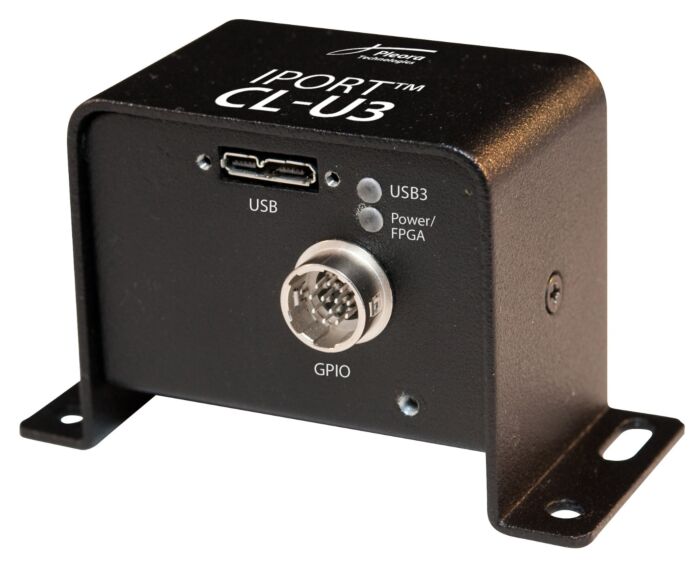

Pleora iPORT CL-U3M Front Angled View

Pleora iPORT CL-U3M (903-0008) External Frame Grabbers

Pleora iPORT CL-U3M-IND (903-0010) Front Angled View

Pleora iPORT CL-U3M-IND (903-0010) External Frame Grabbers

Pleora iPORT CL-U3M (903-0012) External Frame Grabbers With Development Kit

Seamlessly integrate USB3 Vision with Camera Link cameras using Pleora's iPORT CL-U3M Dev Kit. Unlock high-performance imaging with predictable latency, broad computing platform compatibility, and versatile control capabilities.

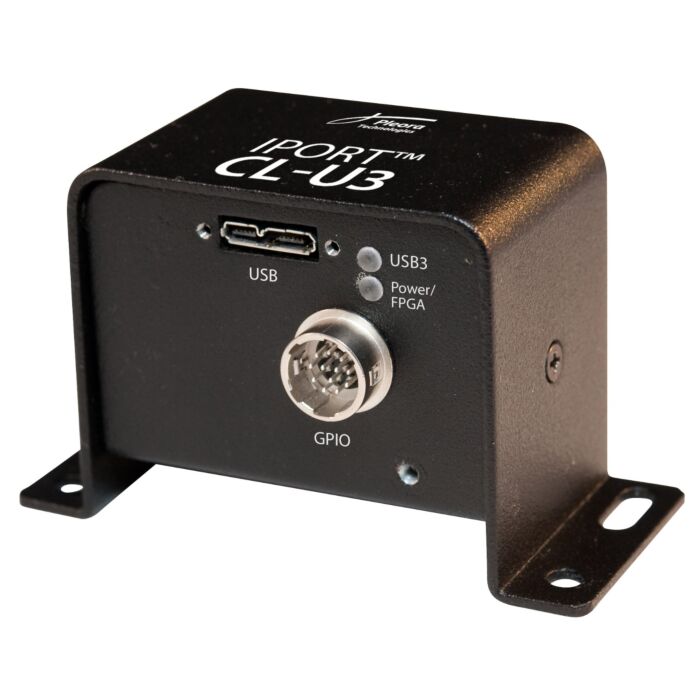

Pleora iPORT CL-U3M (903-0012)

Unlocking High-Performance Imaging with iPORT CL-U3M Dev Kit

Pleora's iPORT CL-U3M Development Kit (903-0012) is a comprehensive solution for industrial and machine vision applications, offering a seamless integration of USB3 Vision with Camera Link cameras. This kit includes the iPORT CL-U3M External Frame Grabber in a mountable enclosure designed for Camera Link Medium mode, a USB 3.0 cable, and the eBUS SDK USB stick for efficient software development.

These external frame grabbers simplify the integration of USB3 Vision video interfaces for Camera Link cameras, capitalizing on USB 3.0's high-bandwidth output, power over the cable, and compatibility with various computing platforms. Transmitting video from Base and Medium mode Camera Link cameras with low, predictable latency, the iPORT CL-U3M facilitates direct connections to a wide range of computing platforms, such as laptops, embedded computers, and single-board computers.

The integrated PLC and GPIO capabilities empower end-users to control, trigger, and synchronize cameras, providing flexibility and control in vision system setups. The iPORT CL-U3 External Frame Grabber family offers tailored solutions, including support for extended operating temperature ranges, extensive GPIO functionality, and power over Camera Link (PoCL), meeting diverse system requirements.


  • USB3 Vision Integration
  • High-Bandwidth Output
  • Power over Cable (PoC)
  • PLC and GPIO Capabilities
  • Camera Link Medium Mode
  • Mountable Enclosure
  • Extended Temperature Range Support


  • Industrial Automation
  • Machine Vision Systems
  • Quality Control
  • Robotics
  • Surveillance
  • Medical Imaging
  • Scientific Research
  • Embedded Vision Systems
iPORT™ External Frame Grabber Highly reliable, 3 Gb/s data transfer rate with low, end-to-end latency
Contained in surface-mountable enclosure
eBUS™ SDK                    Driver installation tool
USB3 Vision and
Fully-compatible firmware loadGuarantees delivery of all packetsComprehensive data transfer diagnostics
Tap Support Base mode: 1 and 2 tapsMedium mode: 1,2, and 4 taps
Tap Geometry 1X_1Y, 1X2_1Y, 1X, 1X2, 1X4_1Y, 1X4
Video Modes Mono, Bayer GR, Bayer RG, Bayer GB, Bayer BG, RGB, BGR, Sparse Color Filter Pattern
Pixel Depth 8, 10, 12, 14, 16 bits
Pixel Clock 20 MHz to 85 MHz
Frame Buffer 128 MB
USB 3.0 Based  Connection to low-cost, easy-to-use equipment
USB3 Vision 1.0 compliant
Programmable Logic Controller  Advanced image capture control
Integrated with GPIO
3 TTL/LVCMOS outputs
GPIO (CL-U3x-IND models only) 2 RS-422/HVTTL/24V/30V differential or single-ended inputs
2 TTL/LVCMOS inputs
3 TTL/LVCMOS outputs
Size (L x W x H) 38 mm X 82 mm X 51 mm
Operating Temperature 0 °C to 45 °CAllows synchronized capture between multiple camerasAllows camera acquisition to track changing speeds on conveyor belts
UART and RS-232 Serial Links (LVCMOS/LVTTL) Serial control of camera and other devices via PC application over the GigE link
Size (L x W x H)   117mm x 100mm x 83.5mm
Operating Temperature 0°C-45°C
-20°C to 60°C (CL-U3x-IND models only)
Storage Temperature -40°C to 85°C
External Power Supply  4.8V to 16V (CL-U3x-IND models only)
Power Consumption 2.5 W
Video SDR-26 (Mini CL) for Camera Link
USB 10-Pin USB 3.0 micro-B Receptacle with locking screw connectors
GPIO Hirose 12-pin (HR10A-10R-12S)
Power In Power over USB cable
GPIO Connector (CL-U3x-IND models only)
Power Out (CL-U3x-IND models only) PoCL
SDR-26 Connector


903-0020 iPORT CL-U3M-IND Industrial-use External Frame Grabber board set without enclosure for Camera Link Medium mode with
extended operating temperature range, extensive GPIO, and power over Camera Link (PoCL)
903-0010 iPORT CL-U3M-IND External Frame Grabber for Camera Link Medium mode with 128 MB frame buffer, extended operating
temperature range, extensive GPIO, and power over Camera Link (PoCL).
903-0014 iPORT CL-U3M-IND Evaluation Kit including 903-0010, power supply, USB 3.0 cable, and eBUS SDK USB stick.
