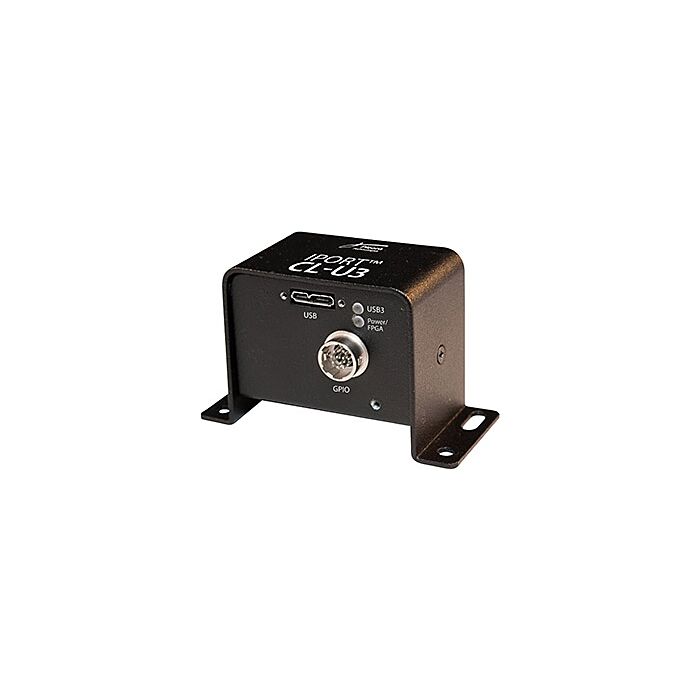

Pleora iPORT CL-U3M (903-0008) External Frame Grabbers
*Please note tariff fee is included in price*
Experience the future of industrial imaging with Pleora iPORT CL-U3M External Frame Grabbers. Convert Camera Link to USB3 Vision seamlessly, ensuring high-speed, cost-effective solutions. Streamline your vision systems today!Revolutionize Industrial Imaging with Pleora iPORT CL-U3M External Frame Grabbers
The Pleora iPORT CL-U3M External Frame Grabbers from Aegis Electronic Group empower system manufacturers and integrators with unparalleled flexibility. Seamlessly converting Camera Link cameras into native USB3 Vision devices, these external frame grabbers enable high-speed data transport over the ubiquitous USB 3.0 bus. Designed for Base and Medium mode Camera Link cameras, they offer low-latency video transmission to workstations via a standard USB 3.0 port, eliminating the need for specialized frame grabber slots. This innovation allows for reduced system size, cost, and power consumption, making it compatible with smaller form factor computing platforms like laptops and embedded computers.
Featuring integrated PLC and GPIO capabilities, users gain control, triggering, and synchronization for enhanced vision system coordination. Compliant with USB3 Vision and GenICam standards, these frame grabbers ensure seamless interoperability in multi-vendor environments. The bundled eBUS SDK application toolkit enhances the user experience, offering a rich set of features for streamlined development. Ideal for applications requiring extended temperature operation and power over Camera Link (PoCL), Pleora's CL-U3M sets a new standard for cost-effective, high-performance industrial imaging solutions.
Features:
- Camera Link to USB3 Vision conversion
- Low-latency, high-speed data transport
- Compact design for reduced system size
- Integrated PLC and GPIO capabilities
- Compliant with USB3 Vision and GenICam standards
- Bundled eBUS SDK application toolkit
Applications:
- Machine Vision Systems
- Industrial Imaging
- Automation and Robotics
- Quality Control
- Manufacturing Processes
| iPORT™ External Frame Grabber | Highly reliable, 3 Gb/s data transfer rate with low, end-to-end latency Contained in surface-mountable enclosure |
| eBUS™ SDK | Driver installation tool Documentation |
| USB3 Vision and GenICam | Fully-compatible firmware loadGuarantees delivery of all packetsComprehensive data transfer diagnostics |
| Tap Support | Base mode: 1 and 2 tapsMedium mode: 1,2, and 4 taps |
| Tap Geometry | 1X_1Y, 1X2_1Y, 1X, 1X2, 1X4_1Y, 1X4 |
| Video Modes | Mono, Bayer GR, Bayer RG, Bayer GB, Bayer BG, RGB, BGR, Sparse Color Filter Pattern |
| Pixel Depth | 8, 10, 12, 14, 16 bits |
| Pixel Clock | 20 MHz to 85 MHz |
| Frame Buffer | 128 MB |
| USB 3.0 Based | Connection to low-cost, easy-to-use equipment USB3 Vision 1.0 compliant |
| Programmable Logic Controller | Advanced image capture control Integrated with GPIO |
| GPIO | 4 TTL/LVCMOS inputs 3 TTL/LVCMOS outputs |
| GPIO (CL-U3x-IND models only) | 2 RS-422/HVTTL/24V/30V differential or single-ended inputs 2 TTL/LVCMOS inputs 3 TTL/LVCMOS outputs |
| Size (L x W x H) | 38 mm X 82 mm X 51 mm |
| Operating Temperature | 0 °C to 45 °CAllows synchronized capture between multiple camerasAllows camera acquisition to track changing speeds on conveyor belts |
| UART and RS-232 Serial Links (LVCMOS/LVTTL) | Serial control of camera and other devices via PC application over the GigE link |
| Size (L x W x H) | 117mm x 100mm x 83.5mm |
| Operating Temperature | 0°C-45°C -20°C to 60°C (CL-U3x-IND models only) |
| Storage Temperature | -40°C to 85°C |
| External Power Supply | 4.8V to 16V (CL-U3x-IND models only) |
| Power Consumption | 2.5 W |
| Video | SDR-26 (Mini CL) for Camera Link |
| USB | 10-Pin USB 3.0 micro-B Receptacle with locking screw connectors |
| GPIO | Hirose 12-pin (HR10A-10R-12S) |
| Power In | Power over USB cable GPIO Connector (CL-U3x-IND models only) |
| Power Out (CL-U3x-IND models only) | PoCL SDR-26 Connector |
| ORDERING INFORMATION | |
| 903-0020 | iPORT CL-U3M-IND Industrial-use External Frame Grabber board set without enclosure for Camera Link Medium mode with extended operating temperature range, extensive GPIO, and power over Camera Link (PoCL) |
| 903-0010 | iPORT CL-U3M-IND External Frame Grabber for Camera Link Medium mode with 128 MB frame buffer, extended operating temperature range, extensive GPIO, and power over Camera Link (PoCL). |
| 903-0014 | iPORT CL-U3M-IND Evaluation Kit including 903-0010, power supply, USB 3.0 cable, and eBUS SDK USB stick. |
