Elevate your industrial vision system with Pleora's iPORT CL-U3M-IND 903-0010 External Frame Grabber. Convert Camera Link to USB3 Vision for optimal performance. Unlock precision and control in a robust, mountable enclosure.Unlock Precision with Pleora iPORT CL-U3M-IND 903-0010 External Frame Grabber

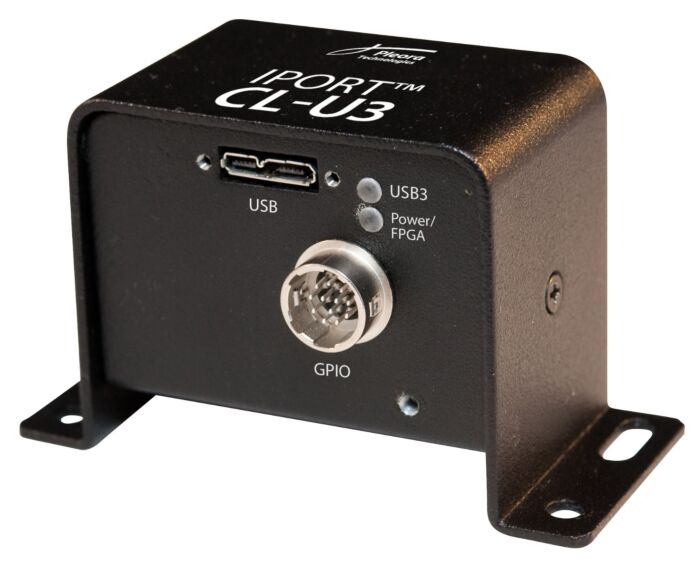

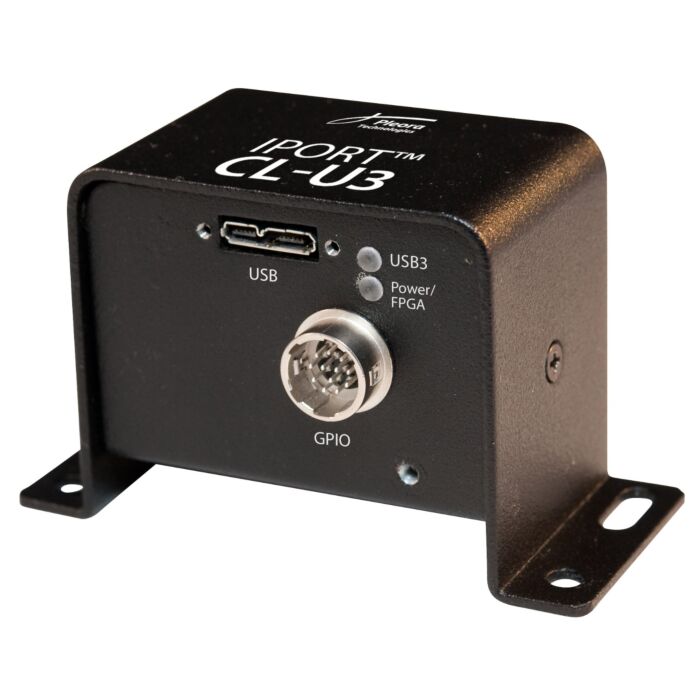

Discover the power of the Pleora iPORT CL-U3M-IND 903-0010 External Frame Grabber, housed in a mountable enclosure designed for industrial applications. This robust frame grabber transforms Camera Link Medium mode video into native USB3 Vision, leveraging the high-bandwidth output, power over cable, and computing platform flexibility of USB 3.0.
The iPORT CL-U3 External Frame Grabbers simplify integration, transmitting video with low latency directly to existing ports on various computing platforms, including laptops, embedded computers, and single-board computers. The integrated PLC and GPIO capabilities offer control, triggering, and synchronization for cameras and other vision system elements.
Designed for industrial use, the frame grabber operates in Camera Link Medium mode, supports an extended operating temperature range, and features extensive GPIO functionality. Additionally, it provides power over Camera Link (PoCL), adding to its versatility.
Features:
- Converts Camera Link to USB3 Vision
- USB 3.0 high-bandwidth output
- Power over Camera Link (PoCL)
- Extended operating temperature range
- GPIO capabilities for control and synchronization
Applications:
- Industrial Automation
- Machine Vision Systems
- Computer Vision
- Embedded Systems
- High-performance Industrial Cameras
| iPORT™ External Frame Grabber | Highly reliable, 3 Gb/s data transfer rate with low, end-to-end latency Contained in surface-mountable enclosure |
| eBUS™ SDK | Driver installation tool Documentation |
| USB3 Vision and GenICam | Fully-compatible firmware loadGuarantees delivery of all packetsComprehensive data transfer diagnostics |
| Tap Support | Base mode: 1 and 2 tapsMedium mode: 1,2, and 4 taps |
| Tap Geometry | 1X_1Y, 1X2_1Y, 1X, 1X2, 1X4_1Y, 1X4 |
| Video Modes | Mono, Bayer GR, Bayer RG, Bayer GB, Bayer BG, RGB, BGR, Sparse Color Filter Pattern |
| Pixel Depth | 8, 10, 12, 14, 16 bits |
| Pixel Clock | 20 MHz to 85 MHz |
| Frame Buffer | 128 MB |
| USB 3.0 Based | Connection to low-cost, easy-to-use equipment USB3 Vision 1.0 compliant |
| Programmable Logic Controller | Advanced image capture control Integrated with GPIO |
| GPIO | 4 TTL/LVCMOS inputs 3 TTL/LVCMOS outputs |
| GPIO (CL-U3x-IND models only) | 2 RS-422/HVTTL/24V/30V differential or single-ended inputs 2 TTL/LVCMOS inputs 3 TTL/LVCMOS outputs |
| Size (L x W x H) | 38 mm X 82 mm X 51 mm |
| Operating Temperature | 0 °C to 45 °CAllows synchronized capture between multiple camerasAllows camera acquisition to track changing speeds on conveyor belts |
| UART and RS-232 Serial Links (LVCMOS/LVTTL) | Serial control of camera and other devices via PC application over the GigE link |
| Size (L x W x H) | 117mm x 100mm x 83.5mm |
| Operating Temperature | 0°C-45°C -20°C to 60°C (CL-U3x-IND models only) |
| Storage Temperature | -40°C to 85°C |
| External Power Supply | 4.8V to 16V (CL-U3x-IND models only) |
| Power Consumption | 2.5 W |
| Video | SDR-26 (Mini CL) for Camera Link |
| USB | 10-Pin USB 3.0 micro-B Receptacle with locking screw connectors |
| GPIO | Hirose 12-pin (HR10A-10R-12S) |
| Power In | Power over USB cable GPIO Connector (CL-U3x-IND models only) |
| Power Out (CL-U3x-IND models only) | PoCL SDR-26 Connector |
| ORDERING INFORMATION | |
| 903-0020 | iPORT CL-U3M-IND Industrial-use External Frame Grabber board set without enclosure for Camera Link Medium mode with extended operating temperature range, extensive GPIO, and power over Camera Link (PoCL) |
| 903-0010 | iPORT CL-U3M-IND External Frame Grabber for Camera Link Medium mode with 128 MB frame buffer, extended operating temperature range, extensive GPIO, and power over Camera Link (PoCL). |
| 903-0014 | iPORT CL-U3M-IND Evaluation Kit including 903-0010, power supply, USB 3.0 cable, and eBUS SDK USB stick. |
